Old 20th March 2012, 12:41   #481
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 1990 M&M Cj340

ok, i will try to get some pics.
svsantosh is offline   Reply With Quote
Old 20th March 2012, 16:44   #482
BHPian

madhkris's Avatar

Join Date: Mar 2010
Location: Bengalur
Posts: 295
Thanked: 70 Times
Default Re: 1990 M&M Cj340

Fantastic Job Santosh..Definitely a First!! Hats off to your involvement. Can you post a video of the PTO in use? Say to fill air/ paint?
madhkris is offline   Reply With Quote
Old 20th March 2012, 18:14   #483
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 1990 M&M Cj340

not so faast doc - the 1st cut is only to see if the comp works with the 1:1 pulley ratio in 4th gear (approx 1000RPM idle of a xdp4.9)

now i need to remove it, flush the sump and fill with oil, tighten the belt correctly, grind off the rough edges!, and find a short air hose to connect to the tank... talking abt the tank - thats another project in itself!!
svsantosh is offline   Reply With Quote
Old 21st March 2012, 01:38   #484
Senior - BHPian

trammway's Avatar

Join Date: Apr 2006
Location: Chennai, India
Posts: 1,122
Thanked: 210 Times
Default Re: 1990 M&M Cj340

Quote:
Originally Posted by svsantosh View Post
talking abt the tank - thats another project in itself!!
It's going to be easier than you think for the rest of your project. The hard part is to get the PTO rolling and you have even connected the compressor. I think tank shouldn't be an issue, I have seen the miniature or imported compact air compressor with really nice tank to be used in mobile mechanical workshops (for air tools), painting and tire inflation purposes.

You should try them in Mannadi of Chennai broadway, elsewhere in Bangalore too. I'm sure you can hit the luck. Here is one of the example (sure it is US model but I remember seeing the same in Chennai as well with different brand tag). The tank part alone must be available in the tool shop.

Name:  AC1.jpg
Views: 943
Size:  12.5 KB

Name:  AC.jpg
Views: 962
Size:  9.9 KB

You may also wanted to try fabricating a shield to cover the pulley and belt part of your compressor setup to avoid accidental contact by human organs.

Last edited by trammway : 21st March 2012 at 01:47.
trammway is offline   (1) Thanks Reply With Quote
Old 21st March 2012, 10:09   #485
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 1990 M&M Cj340

^ i thought u saw the tank pics on FB, may be not, sorry for not posting it here...

as of now, the comp is serviced and filled with 250ml of 15w40 oil, this tank is also fit behind the codriver seat - today morning job is to find the correct hoses and connect all this up and call it end of project!

1990 M&M Cj340-1.jpg

1990 M&M Cj340-2.jpg
svsantosh is offline   (1) Thanks Reply With Quote
Old 21st March 2012, 14:58   #486
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Thumbs up Re: 1990 M&M Cj340

Getting there... current WIP status

Now I need to tighten all these into place with teflon tape and see if the auto-release valve works

1990 M&M Cj340-photo0042.jpg

1990 M&M Cj340-photo0043.jpg

1990 M&M Cj340-photo0044.jpg

Once there are no leaks, I will discard the STOPPER valve and connect to a 3meter flexi hose to pump air into a tyre...
svsantosh is offline   (2) Thanks Reply With Quote
Old 21st March 2012, 15:31   #487
BHPian

crazyjeeperk's Avatar

Join Date: Jan 2010
Location: cuddalore
Posts: 115
Thanked: 6 Times
Talking Re: 1990 M&M Cj340

Hi Bro,

The mods you have made to your machine are awesome !

Is the pressure achieved with this compressor and tank setup enough to operate a Pneumatic Impact Wrench ? If "YES" then your vehicle can be of great use during OTR's as a Savior to many newbie's like me "both on recovery and minor repair" , even for a punctured Tyre we can do it like the F1 Pit stops(in secs) !

O.T : I really wonder what will be the scenario when you miss some important function to which your are supposed to take your family while your roaming in search of jeep spares in some junk yard and go back home late fully drenched in sweat and dirt totally unaware of what awaits you there ?
crazyjeeperk is offline   Reply With Quote
Old 21st March 2012, 19:48   #488
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 1990 M&M Cj340

I dont know how much pressure this thing generates, but i am sure at least i can fill tyres with it... i am doubtful about the pnuematic wrench though! but dont worry, i have access to one air wrench and i can test it...

OT - I know whats @ home everytime i go after a 'jeep-day-out' - 1 heavy diaper'd & happy 60day boy waiting for me to play and clean him up...!
svsantosh is offline   Reply With Quote
Old 21st March 2012, 20:02   #489
Senior - BHPian

ex670c's Avatar

Join Date: Nov 2004
Location: Chennai
Posts: 2,454
Thanked: 1,789 Times
Default Cover

Hi Santosh,

Do consider a cover for the Compressor flywheel,considering the position it is in this thing can take off a finger, before you realize it.

The cover can also serve as an arm rest and utility box.

Regards,

Arka
ex670c is offline   Reply With Quote
Old 22nd March 2012, 03:32   #490
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: Cover

Quote:
Originally Posted by ex670c View Post
Do consider a cover for the Compressor flywheel,considering the position it is in this thing can take off a finger, before you realize it.The cover can also serve as an arm rest and utility box.
Yes Arka, once the whole thing works for a few days and i tie up all loose ends, the whole thing gets a simple cover which may double up as a storage box/cup holder - lets see... also considering the jeep is a weekend joyride for many kids in my apartment block - i cannot risk anything wrt to this pulley!!
svsantosh is offline   Reply With Quote
Old 23rd March 2012, 13:25   #491
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Talking Yahoooooo.....!!!!

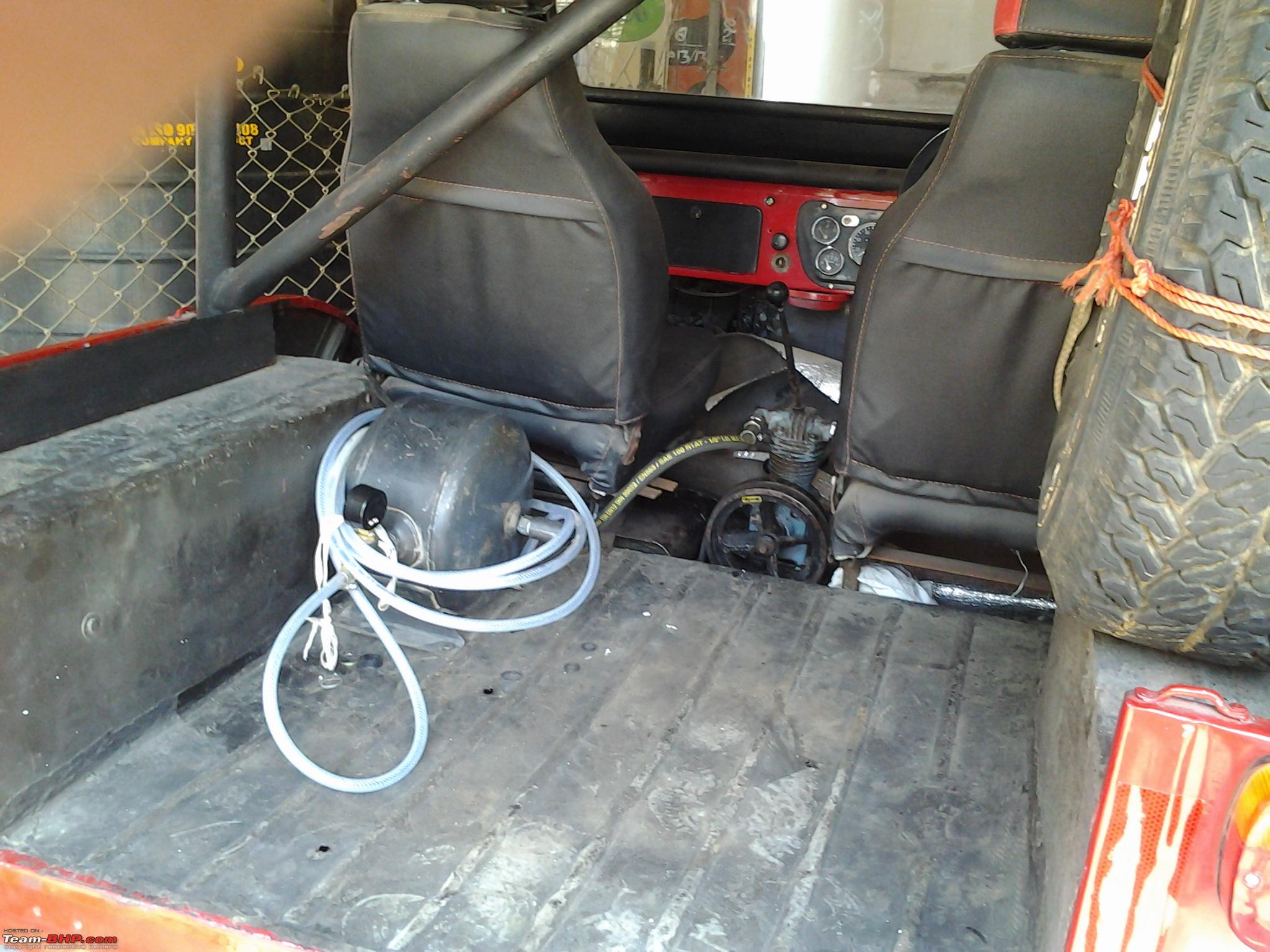

Its finally Complete - The thing works and also I filled a tyre to check it out...

Total cost breakup ---

PTO - Priceless!! (From UBS)
Compressor - 1200Rs
Tank - 400Rs
Plumbing/connectors/gauge - 1100Rs
Misc - 300~
total - 3000Rs


1990 M&M Cj340-photo0014.jpg

1990 M&M Cj340-photo0015.jpg
svsantosh is offline   (1) Thanks Reply With Quote
Old 23rd March 2012, 14:38   #492
BANNED

Join Date: Apr 2010
Location: Pune
Posts: 1,201
Thanked: 821 Times
Default Re: 1990 M&M Cj340

You have done it -- Congrats
btw I cant see a safety valve now ( excess pressure protection ) , its A MUST

also a drain plug is needed ( is it already there & easily accessible ? )

Last edited by Sudarshan : 23rd March 2012 at 14:40.
Sudarshan is offline   Reply With Quote
Old 23rd March 2012, 15:31   #493
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 1990 M&M Cj340

Bhai - what I 'assumed' a safety valve is actually a drain plug - see this post 3rd pic

http://www.team-bhp.com/forum/4x4-ve...ml#post2721541 (1990 M&M Cj340)

i agree, i need to get a safety valve next, for the time being i am going to limit usage to max 75~ Psi in tank. Hope someone can tell me the rating this tank was designed for.

Also, sudarshan bhai - what is the use of a drain plug? PS - the tank's OE position was horizontal with the current inlet being the place for the drain bolt (see prev page) and that used to face the ground... now in this setup nothing is serving as a drain bolt!! what to do? Let me keep this setup for some time and considering its need i will move to a slender, more longer, lorry-ka-tank...
svsantosh is offline   Reply With Quote
Old 23rd March 2012, 16:08   #494
BHPian

crazyjeeperk's Avatar

Join Date: Jan 2010
Location: cuddalore
Posts: 115
Thanked: 6 Times
Default Re: 1990 M&M Cj340

Quote:
Originally Posted by Sudarshan View Post
You have done it -- Congrats
btw I cant see a safety valve now ( excess pressure protection ) , its A MUST

There is a Auto Release Valve(Safety Valve) one the other side of the tank facing the passenger seat, But santhosh bro please confirm if its working well.

also a drain plug is needed ( is it already there & easily accessible ? )
The safety valve will also serve this purpose i hope !

Forgive me if i am wrong

Last edited by crazyjeeperk : 23rd March 2012 at 16:11.
crazyjeeperk is offline   Reply With Quote
Old 23rd March 2012, 16:49   #495
Senior - BHPian

svsantosh's Avatar

Join Date: Mar 2008
Location: Hosur
Posts: 3,308
Thanked: 1,252 Times
Default Re: 1990 M&M Cj340

Kumaran - how does the drain valve work? I dont think it is a safety-auto-release valve... it can ONLY be pushed inside but it would not move a inch outside. when I pressed it inside, all the compressed air came out, but there is no provision to let out the air - i think that is a different part!
svsantosh is offline   Reply With Quote
