Old 15th January 2020, 12:33   #256
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 4,332
Thanked: 8,270 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Another weekend DIY project.

I have a superb Bestek 1000W invertor purchased from Amazon UK.

A thousand watt inverter means I can easily use a regular hot water kettle or small electric stove while camping and also run a lot of electrical stuff if I need to.

This one comes with battery clamps and every time I need to open the bonnet to use it. Therefore, decided to have it permanently fixed in the boot where most of the camping stuff is there.

Mounted it on a PVC ply and also used a battery cut off switch for safety just next to it so it will always be off unless I'm going to use it.

Front view:

Mitsubishi Pajero SFX - Project Overland Conversion-01-front-view-invertor.jpeg

Top View:

Mitsubishi Pajero SFX - Project Overland Conversion-02-top-view-invertor.jpeg

The cut off switch:

Mitsubishi Pajero SFX - Project Overland Conversion-03-cut-off-switch.jpeg

The cut-off switch key I've zip tied and screwed the end of the zip tie to the board so I do not loose it.

A question I anticipate: why not mount the switch and Inverter directly to the drawer cabinet and why on a separate board?

This is because in case I need to add the rear seat/seats back for additional passengers then I can still have the inverter with the cut off switch tucked away somewhere securely just by removing 4 screws from the drawer unit.

I'll run a thick cable from the main battery compartment with a fuse near the battery, through the main cabin and to the inverter. The earthing with be on the body on the rear wheel arch. This part I'll leave to the professionals and will visit Super Auto shortly.

Last edited by Tejas@perioimpl : 15th January 2020 at 12:37. Reason: corrected typos
Tejas@perioimpl is offline   (7) Thanks
Old 15th January 2020, 16:29   #257
Senior - BHPian

cool_dube's Avatar

Join Date: Sep 2004
Location: Bangalore
Posts: 2,184
Thanked: 2,668 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Quote:
Originally Posted by Tejas@perioimpl View Post
when you order from aliexpress, there are two options, 2 pin and 1 pin. For the SFX (Pajero NL) you need the single pin option
One correction - rear door switches are single-pin but front door ones are double-pin (to operate cabin lights and door pad lights respectively).
cool_dube is offline   (3) Thanks
Old 16th January 2020, 10:57   #258
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 4,332
Thanked: 8,270 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Quote:
Originally Posted by cool_dube View Post
One correction - rear door switches are single-pin but front door ones are double-pin (to operate cabin lights and door pad lights respectively).
Did not know that. I had just opened the rear one to check and ordered accordingly.

Thanks for the correction and update!
Tejas@perioimpl is offline
Old 20th January 2020, 11:59   #259
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 4,332
Thanked: 8,270 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Got time to go and get the cabling done for the inverter. Same place - super auto.

Here's the cable. Its thicker than recommended for the inverter but decided to use this so incase I shift to dual battery system, I'm ready to go without wiring again:

Mitsubishi Pajero SFX - Project Overland Conversion-00-cable.jpeg

To access the firewall, the PA horn is removed:

Mitsubishi Pajero SFX - Project Overland Conversion-01-removing-pa-horn-access-firewall.jpeg

Cable passed through:

Mitsubishi Pajero SFX - Project Overland Conversion-02-cable-passed-through-fw.jpeg

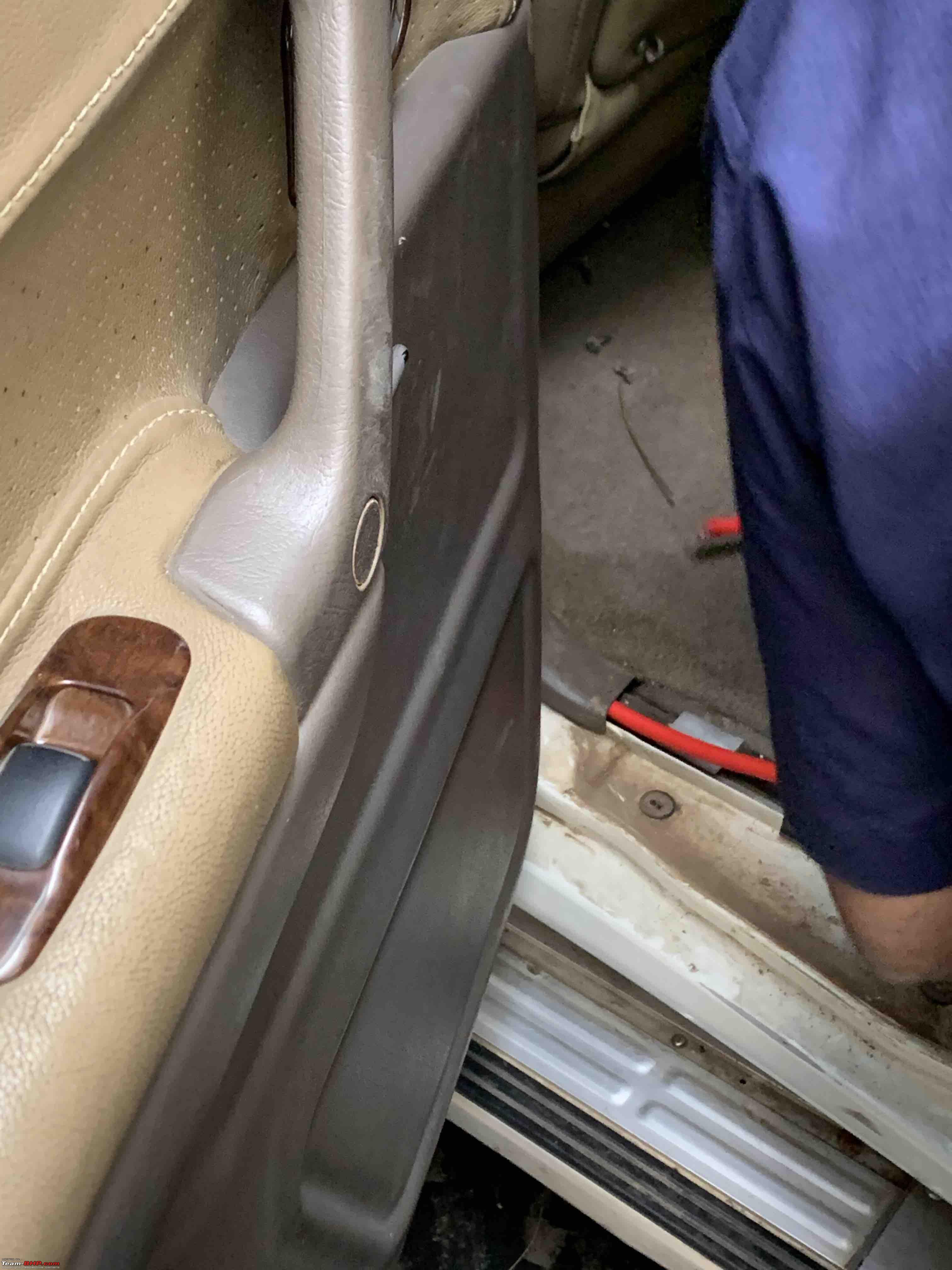

Opening up the fascia to pass the cabling through to the rear:

Mitsubishi Pajero SFX - Project Overland Conversion-03-opening-up-fascia-pass-cable.jpeg

Mitsubishi Pajero SFX - Project Overland Conversion-04-opening-up-fascia-pass-cable.jpeg

Cables clipped together with the existing wiring:

Mitsubishi Pajero SFX - Project Overland Conversion-05-cable-clipped-together-other-wiring.jpeg

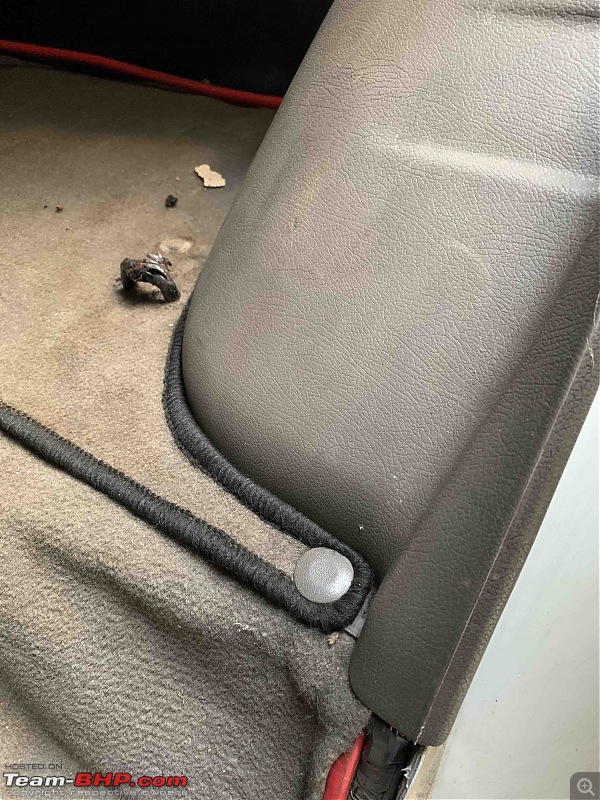

Cable passed below the rear wheel arch fascia:

Mitsubishi Pajero SFX - Project Overland Conversion-06-below-rear-wheel-arach-fascia.jpeg

It then runs behind the rear seat, between the seat and the drawer unit:

Mitsubishi Pajero SFX - Project Overland Conversion-07-passed-between-rear-seat-drawer-unit.jpeg

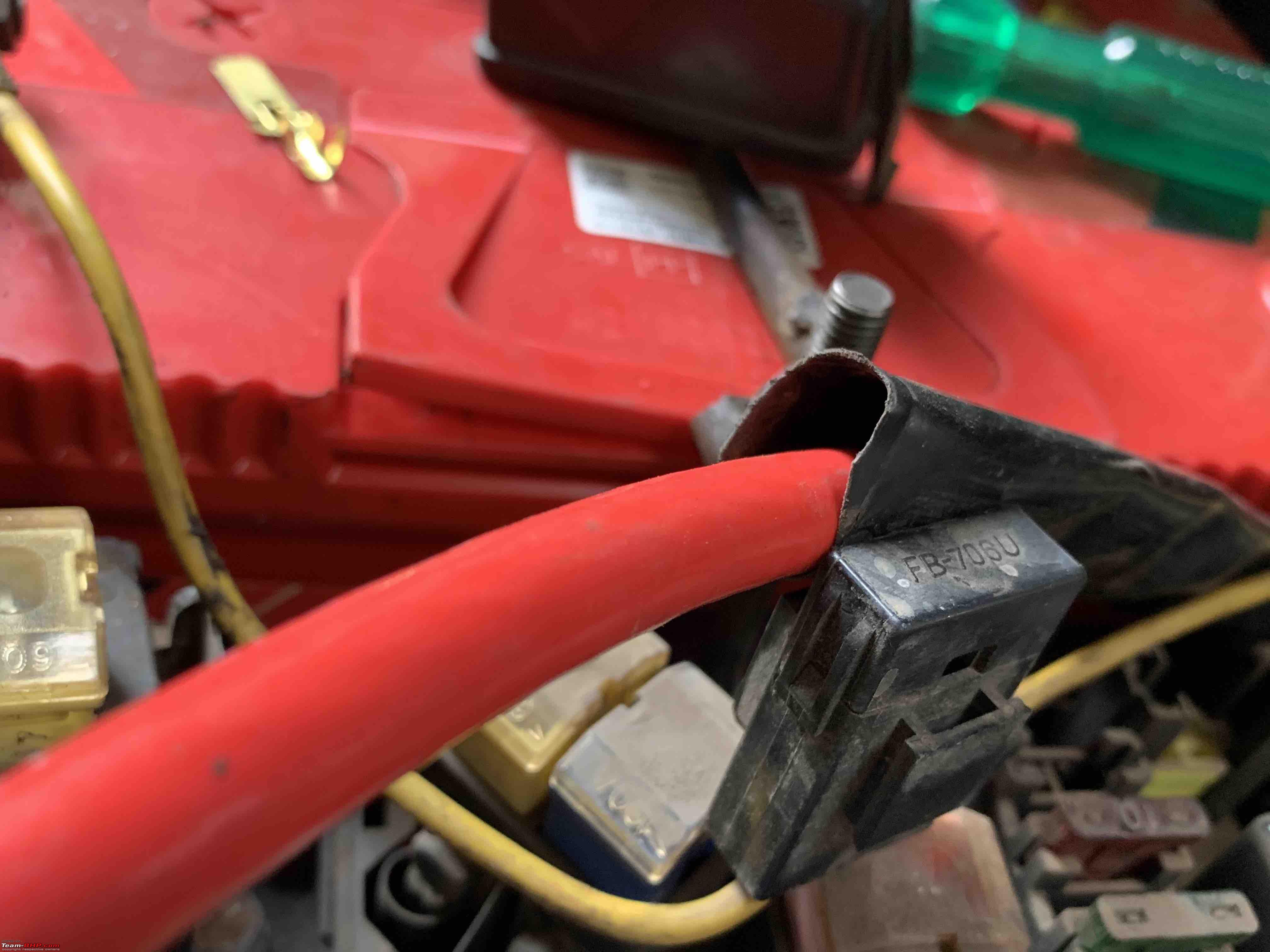

When passed through firewall, have put an additional sleeve in the engine bay compartment:

Mitsubishi Pajero SFX - Project Overland Conversion-08-through-firewall-sleeve.jpeg

Mitsubishi Pajero SFX - Project Overland Conversion-09-sleeve.jpeg

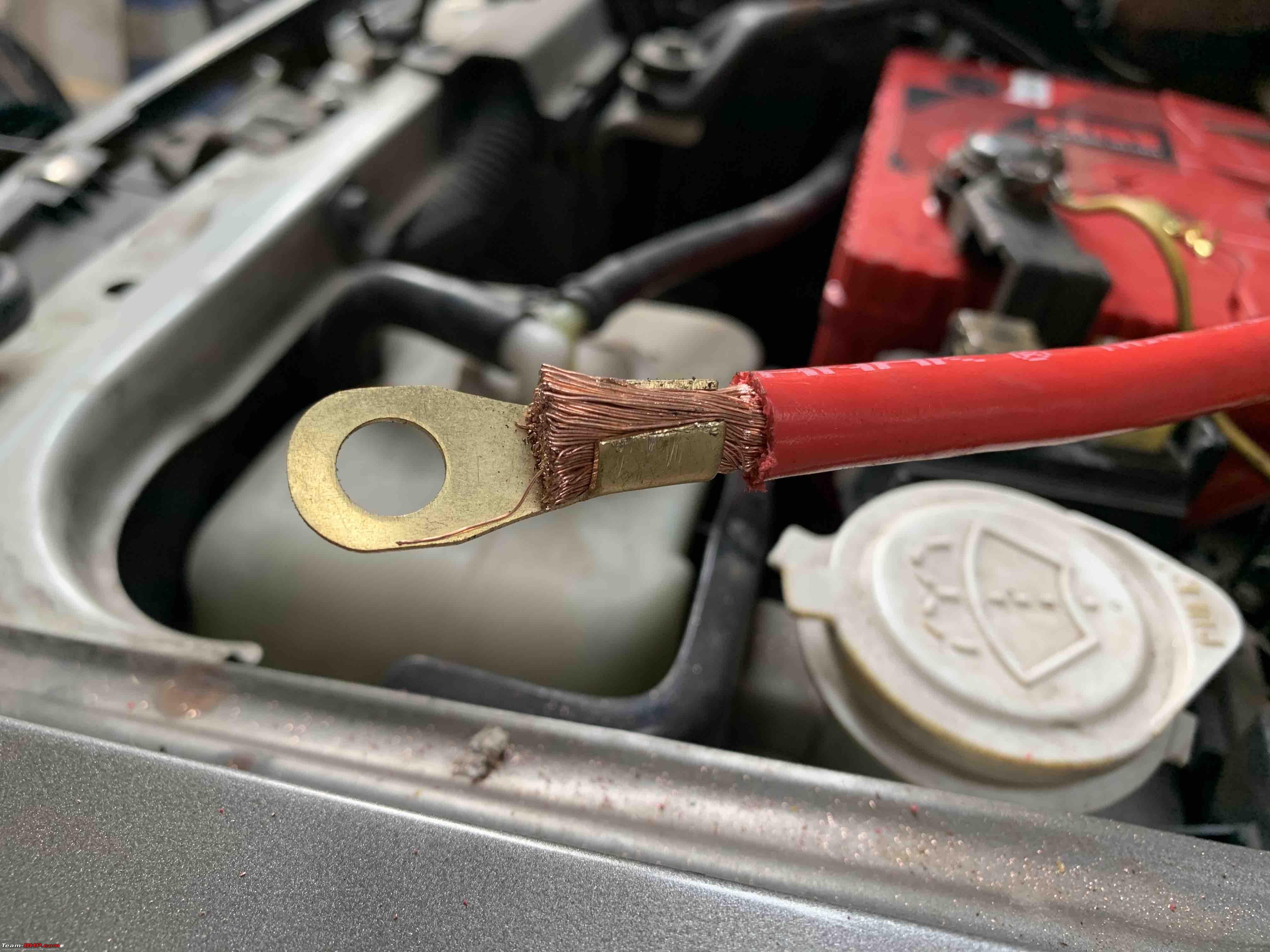

The clip that would get attached to the battery. Will be soldered:

Mitsubishi Pajero SFX - Project Overland Conversion-10-terminal-battery-soldered.jpeg

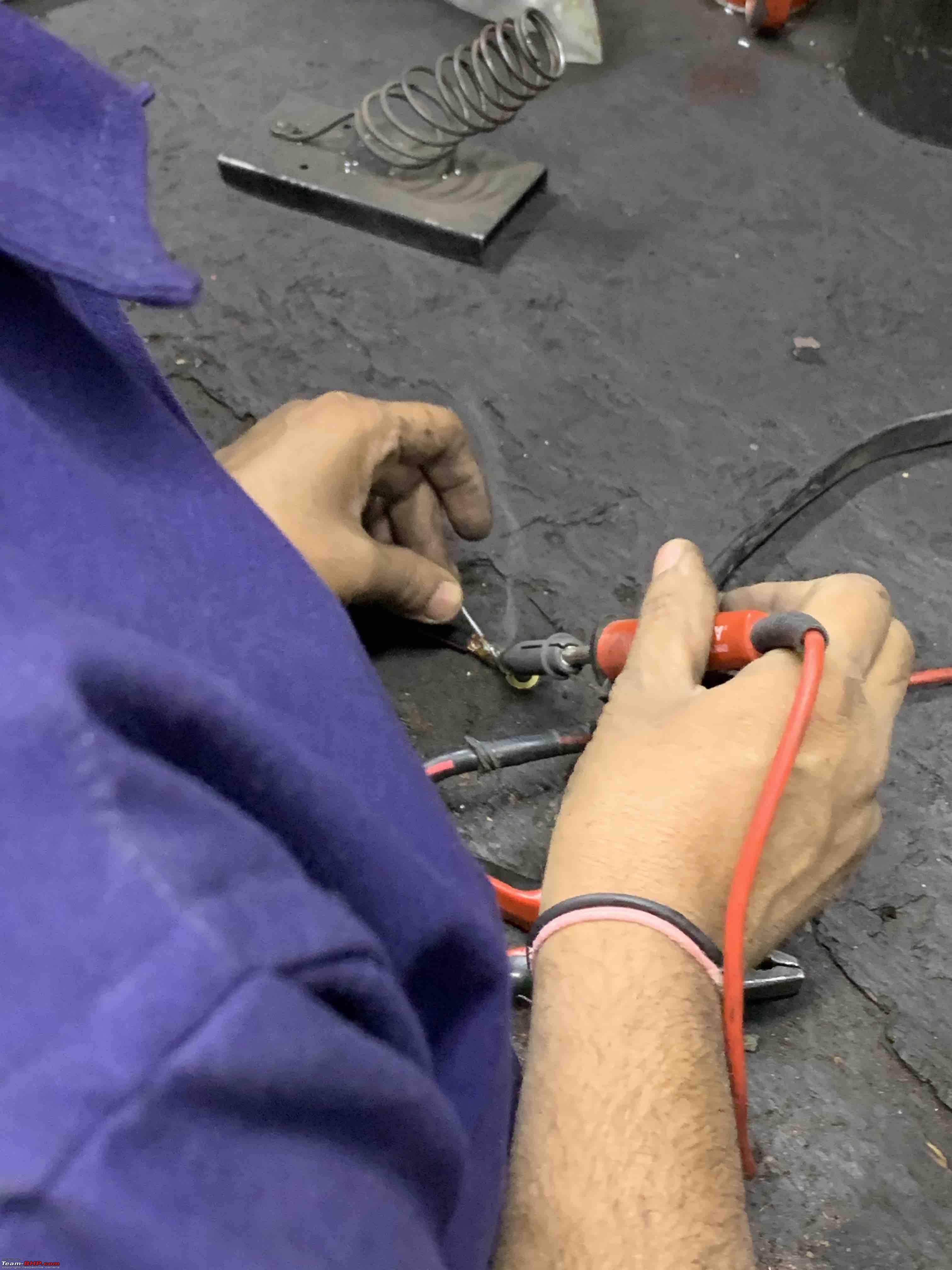

The negative wire been soldered serperately:

Mitsubishi Pajero SFX - Project Overland Conversion-11-negative-wire-soldering.jpeg

Negative wire is wrapped and ready:

Mitsubishi Pajero SFX - Project Overland Conversion-12-negative-wire-ready.jpeg

Negative wire goes from the inverter to the rear wheel arch to 'earth' to the body:

Mitsubishi Pajero SFX - Project Overland Conversion-13-negative-wire-body.jpeg

Have put an additional 60A fuse:

Mitsubishi Pajero SFX - Project Overland Conversion-14-fuse-postive-wire.jpeg

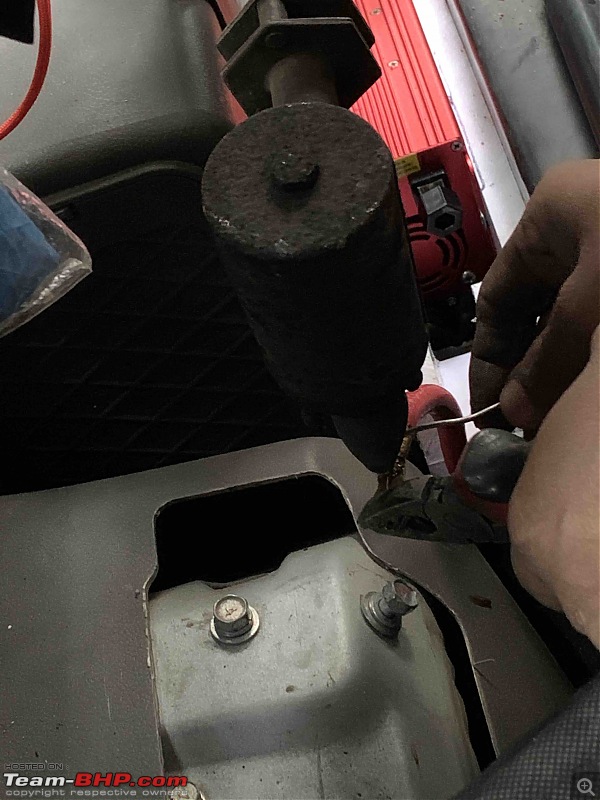

Soldering all the clips:

Mitsubishi Pajero SFX - Project Overland Conversion-15-soldering-clips.jpeg


Ready to attach to the inverter:

Mitsubishi Pajero SFX - Project Overland Conversion-16-ready-attach.jpeg

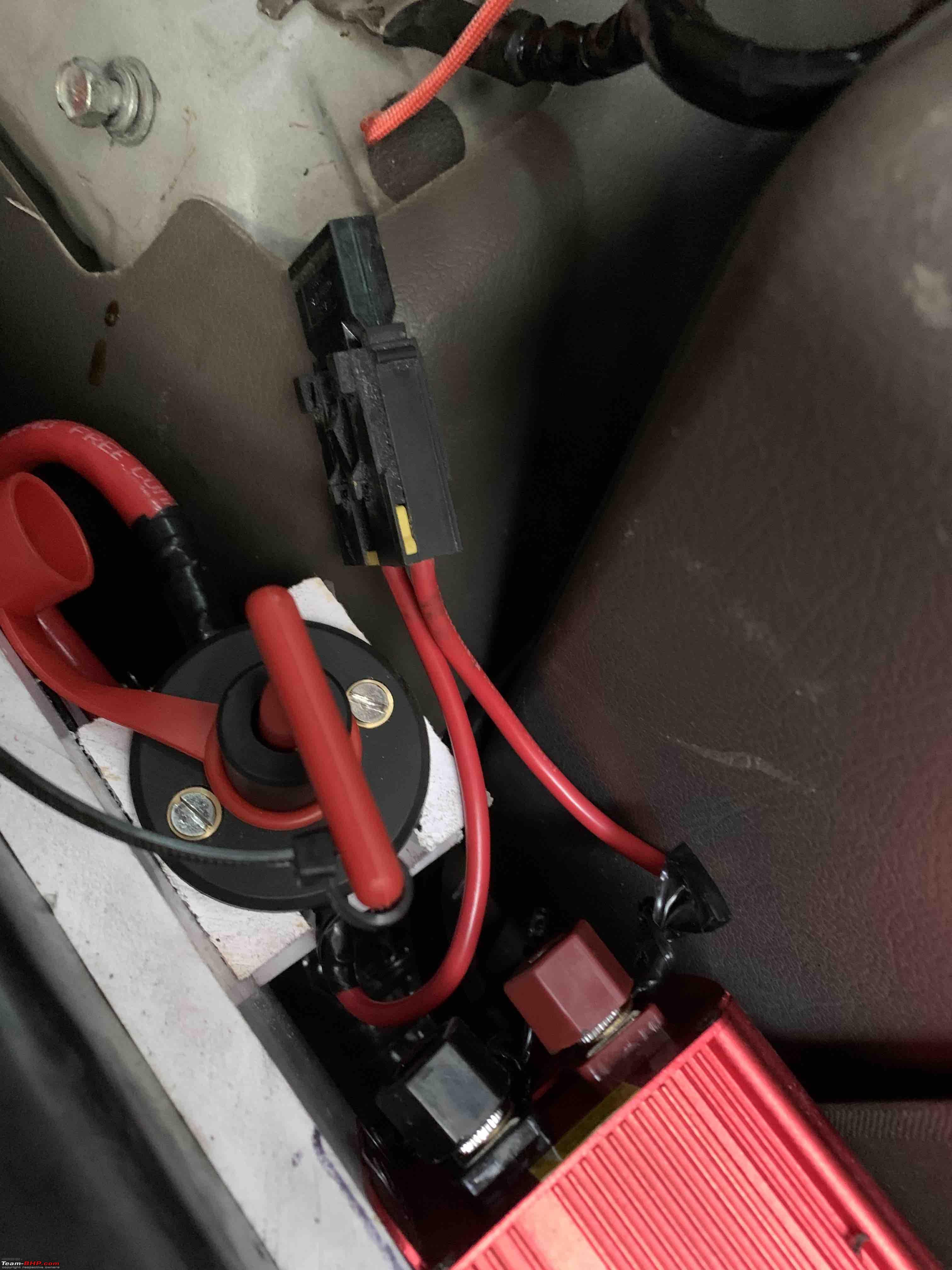

All attached and ready - the fuse goes from the battery cut off switch to the inverter:

Mitsubishi Pajero SFX - Project Overland Conversion-17-all-attached-ready.jpeg


So honestly, did I need to do this? NO! I spent Rs. 6000 for this when I could just open up the bonnet and use the inverter as I have been regularly doing. But I guess the heart wins and just the convenience is worth it in my book.

Last edited by Tejas@perioimpl : 20th January 2020 at 12:02. Reason: corrected some typos
Tejas@perioimpl is offline   (8) Thanks
Old 21st January 2020, 17:33   #260
Senior - BHPian

Join Date: Dec 2007
Location: Bangalore
Posts: 3,960
Thanked: 301 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Quote:
Originally Posted by Tejas@perioimpl View Post
...
So honestly, did I need to do this? NO! I spent Rs. 6000 for this when I could just open up the bonnet and use the inverter as I have been regularly doing. But I guess the heart wins and just the convenience is worth it in my book.
This is one thought that every person, who mods his vehicle, will go through, be it a simple headlight bulb change costing multiple times the standard bulb or a major mod.
HappyWheels is offline   (2) Thanks
Old 27th January 2020, 13:01   #261
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 4,332
Thanked: 8,270 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

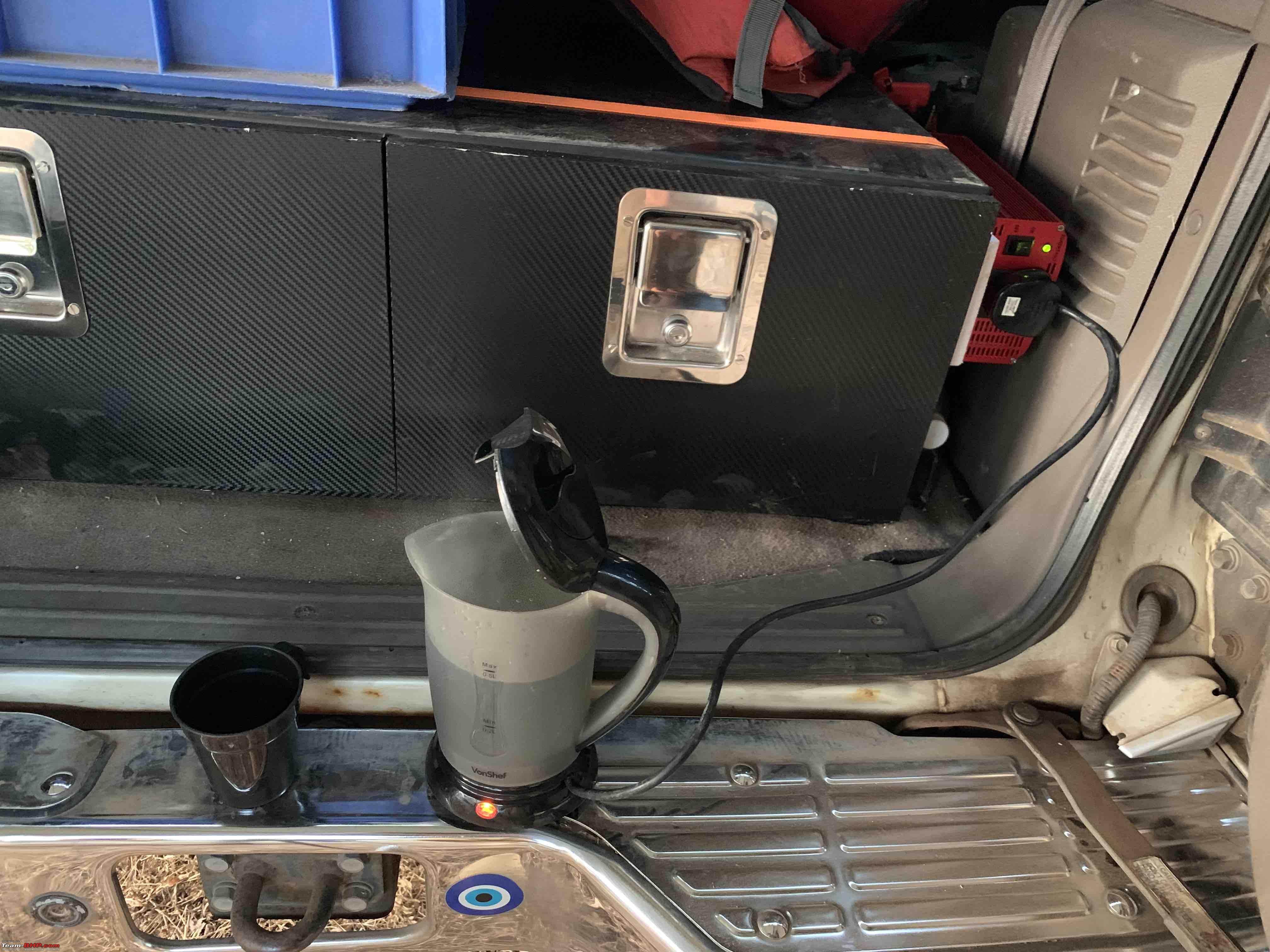

Went camping this weekend and made at least 20 cups of tea/coffee.

Money well spent!

Mitsubishi Pajero SFX - Project Overland Conversion-coffee-machine-use.jpeg
Tejas@perioimpl is offline   (4) Thanks
Old 29th January 2020, 15:50   #262
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 4,332
Thanked: 8,270 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Another weekend DIY.

This DIY had been long pending and since a camping trip was planned, I hastily bought the material one night before and assembled the DIY early morning in an hour before the trip.

The project was to make an overhead water storage for cleaning camping equipment.

Material required:

1. 5' long and 4" diameter PVC pipe with 2 end caps
2. A overhead tank water overflow coupling
3. 2 Quickfist claps
4. A pipe coupler
5. Health faucet pipe and shower head
6. PVC glue
7. Drill machine
8. Sealant

The basic idea is to use the PVC pipe as a water storage device and let gravity feed the water to your faucet.

A 5 foot long, 4" diameter pipe has an approximate water carrying capacity of 14 litres which is good enough.

First step, make a hole on the top so that you can fit the coupler to add water to the pipe.

You need a wide drill bit for the same:

Mitsubishi Pajero SFX - Project Overland Conversion-01-drill.jpeg

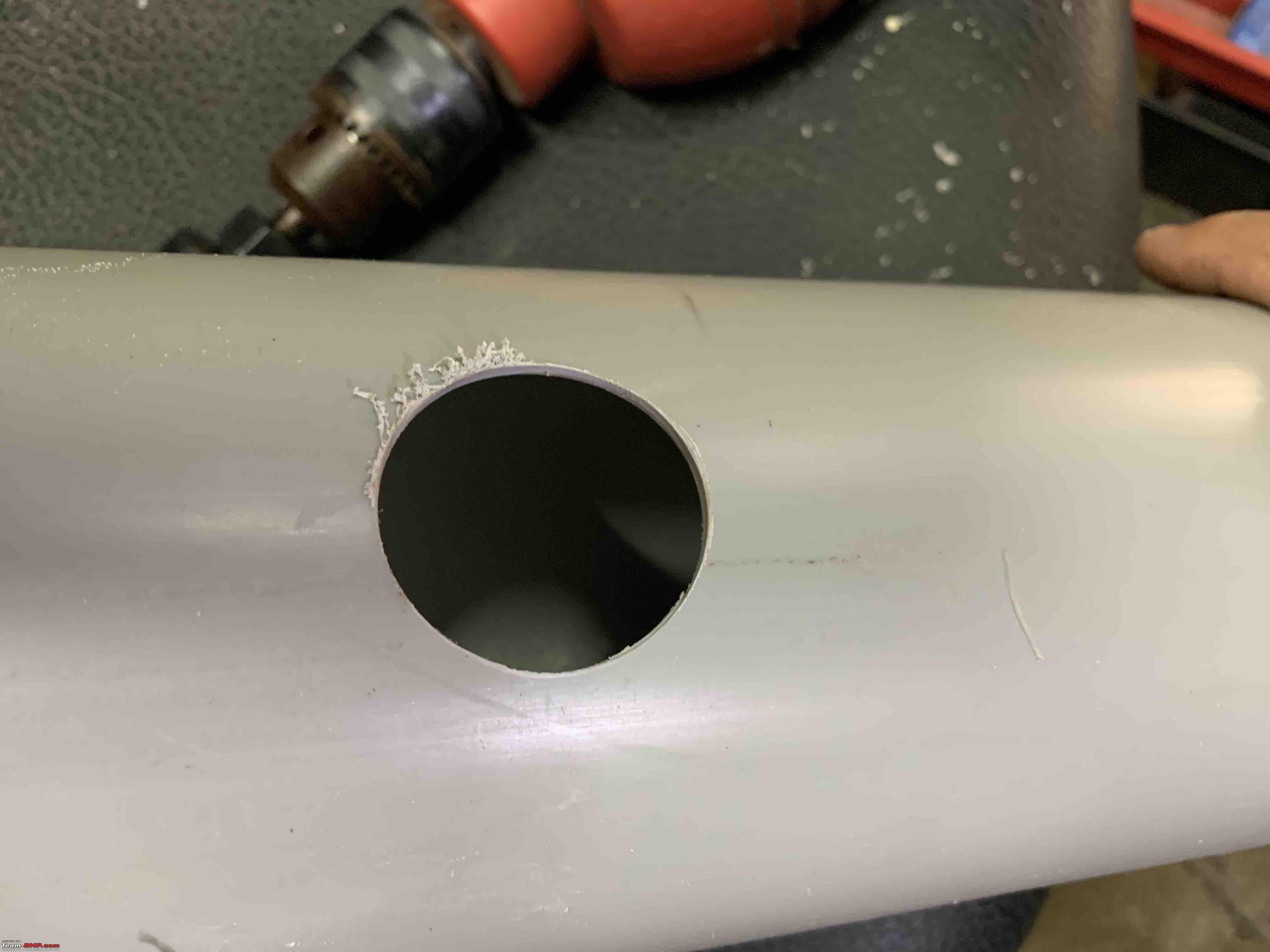

Hole is drilled:

Mitsubishi Pajero SFX - Project Overland Conversion-02-hole-drilled.jpeg

Now I had to screw in the filler part to the hole. It was a damn difficult job and need a visa clamp to give more leverage and force.

Mitsubishi Pajero SFX - Project Overland Conversion-04-used-clamp-turn.jpeg

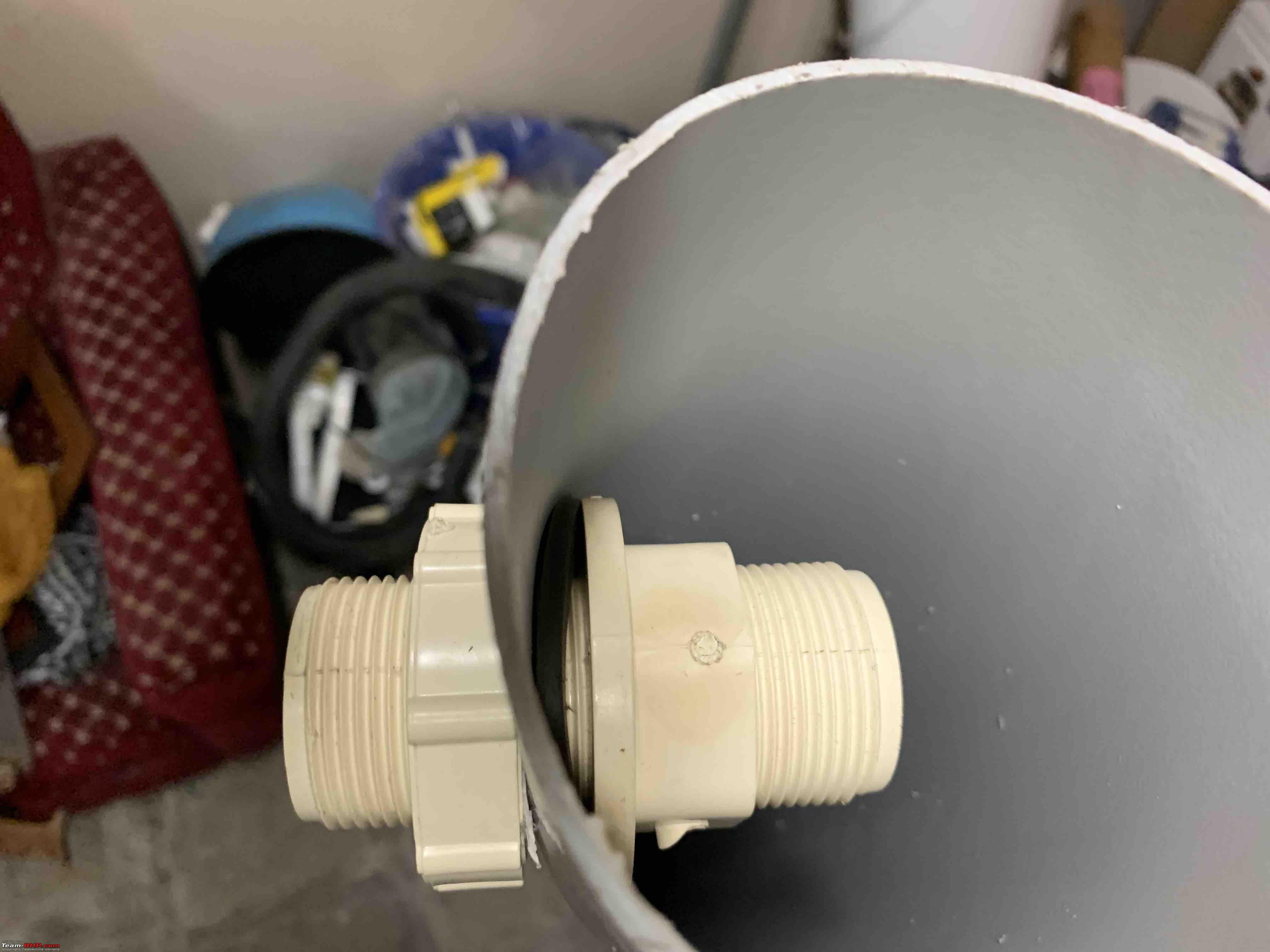

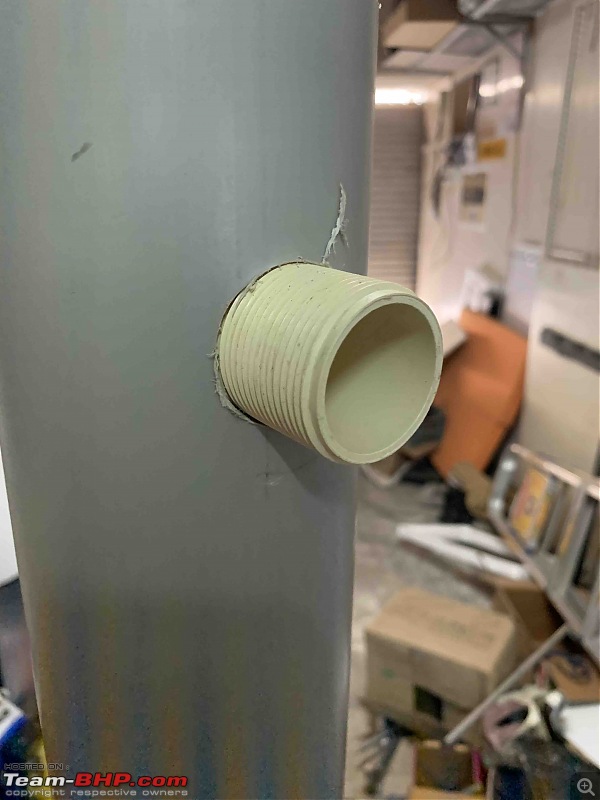

So made the screw channel from outside and then screwed the coupler from inside.

Mitsubishi Pajero SFX - Project Overland Conversion-03-filler-through-hole.jpeg

Mitsubishi Pajero SFX - Project Overland Conversion-05inside-view.jpeg

TIP: later on I read that gentle heating up the edges makes the process very easy and the cooling of the hole edges seals the hole.

I hadn't done this and therefore I didn't have a seal and needed to use a sealant. I use JB Weld sealant. Its a fantastic product:

Mitsubishi Pajero SFX - Project Overland Conversion-06ajb-marine-weld.jpeg

Once set you can grind it down and polish and paint it as well. Filler cap also attached to seal the water inlet after filling the water.

Mitsubishi Pajero SFX - Project Overland Conversion-06-cement-filler.jpeg

Next you use PVC glue to seal the end caps.

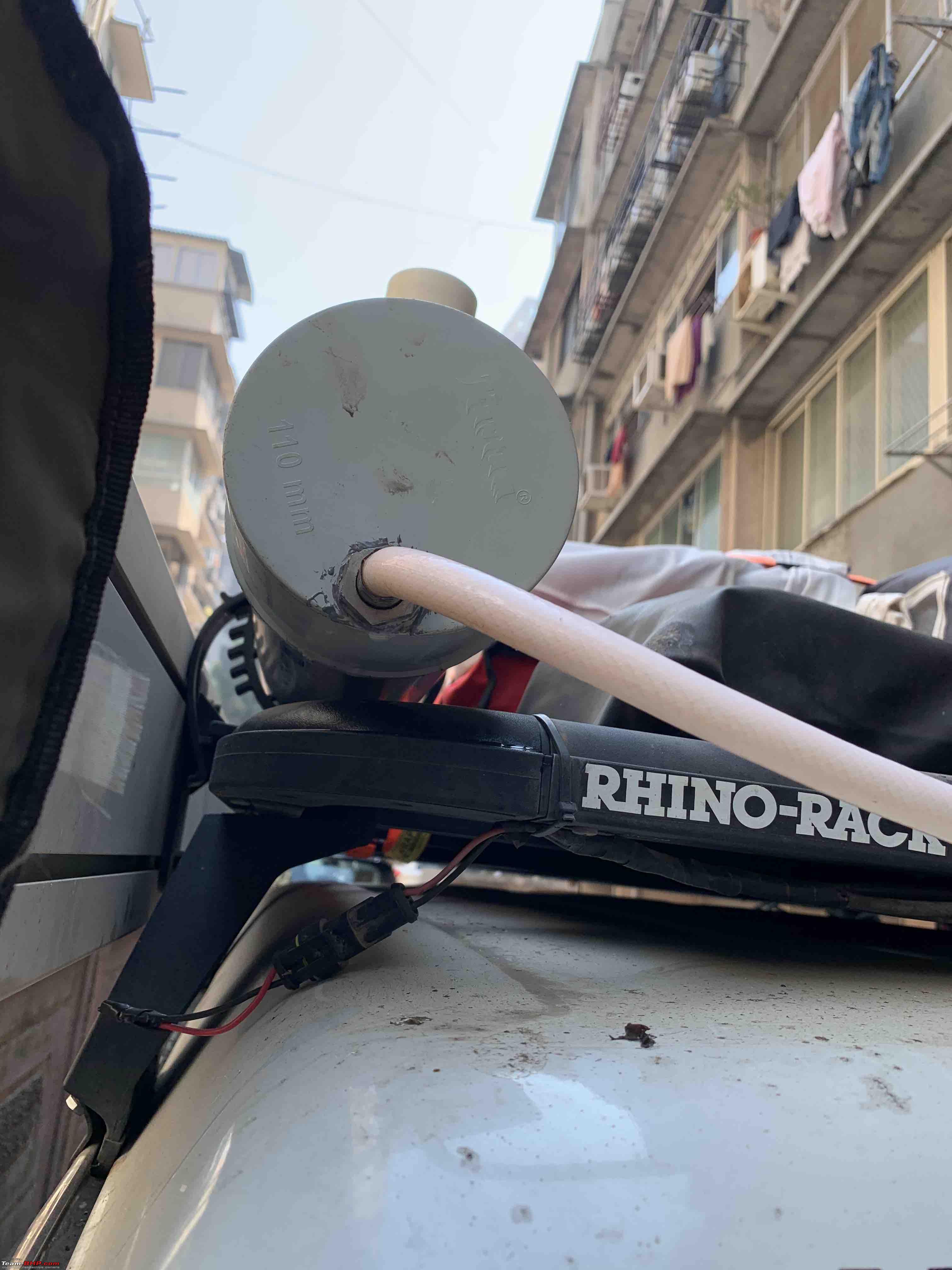

Before you seal the last one, make another hole and insert the coupling and fit the health faucet and pipe:

Mitsubishi Pajero SFX - Project Overland Conversion-07faucet-attached-pipe.jpeg

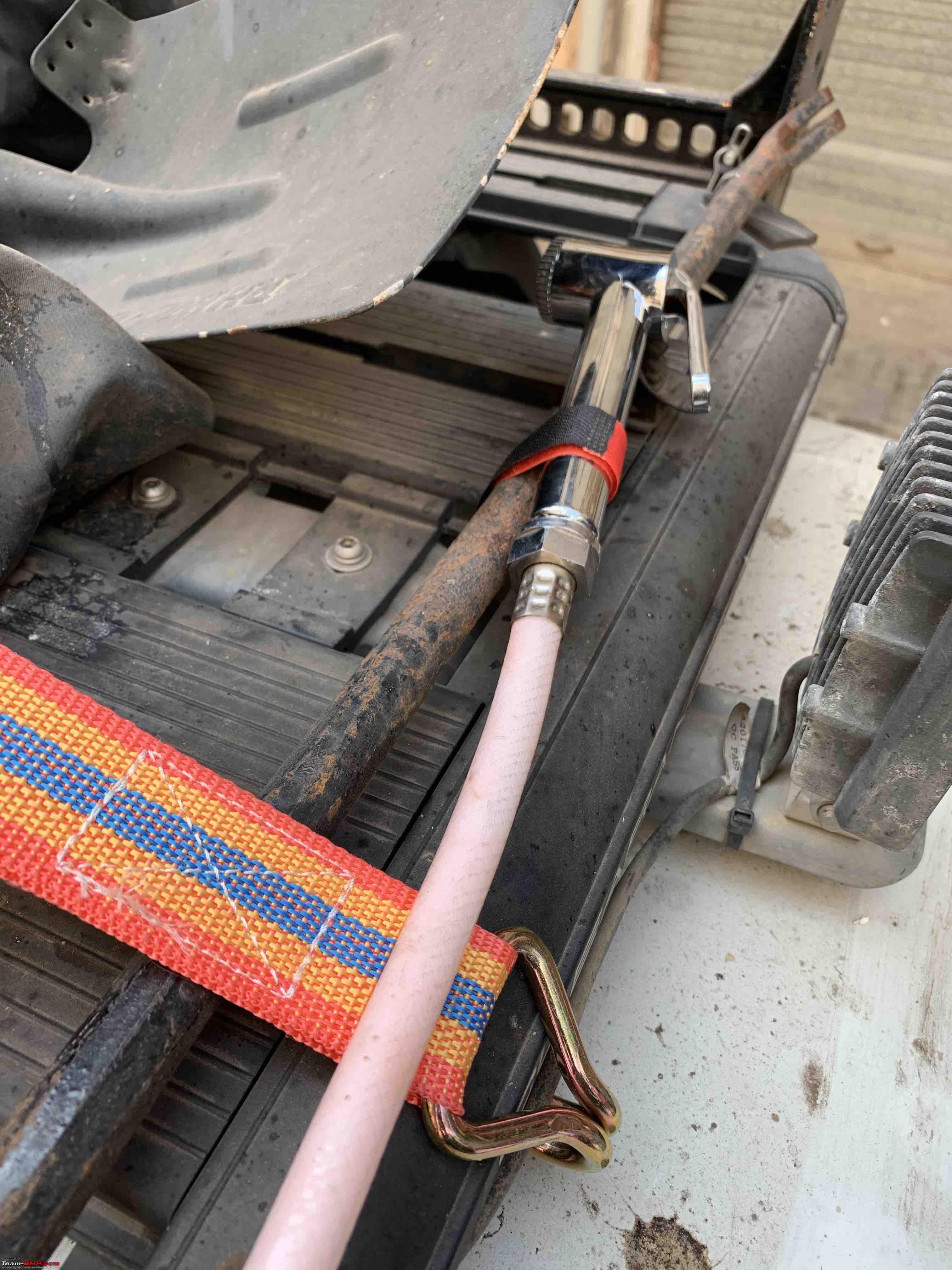

The shower head is attached by velcro to the crowbar.

Mitsubishi Pajero SFX - Project Overland Conversion-08faucet-velcroed-crowbar.jpeg

Next up - mounting to the rhino rack.

The Quickfist clamps are the best option for this.

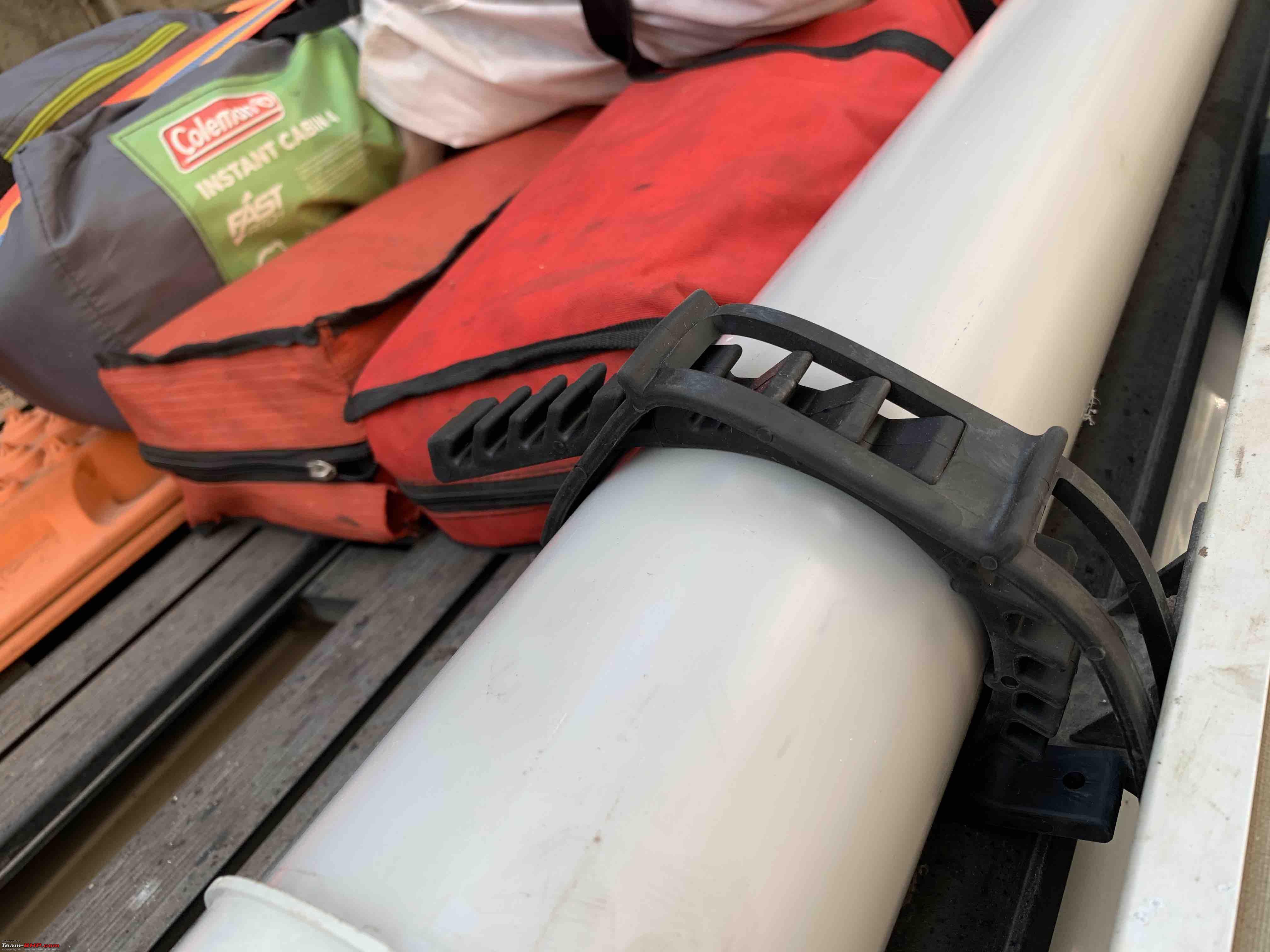

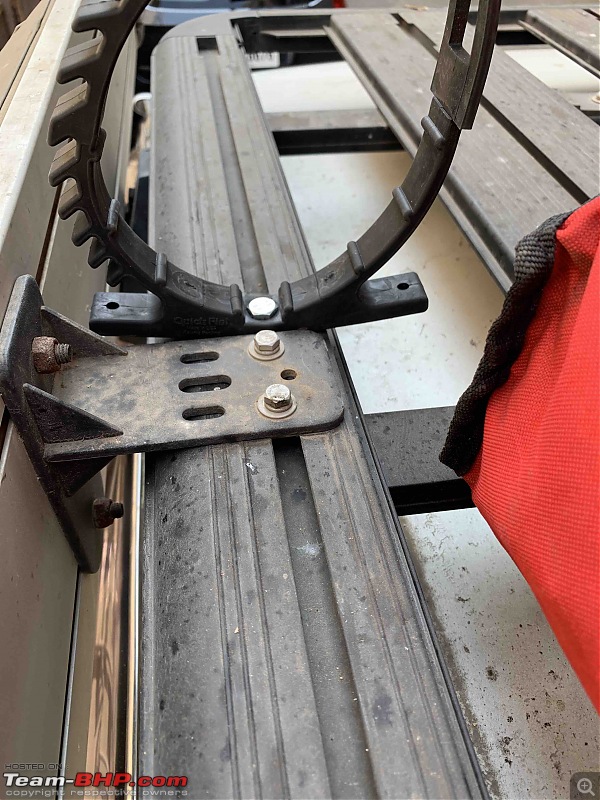

Front:

Mitsubishi Pajero SFX - Project Overland Conversion-09front-quickfist-attached.jpeg

Mitsubishi Pajero SFX - Project Overland Conversion-11front-quikfist.jpeg

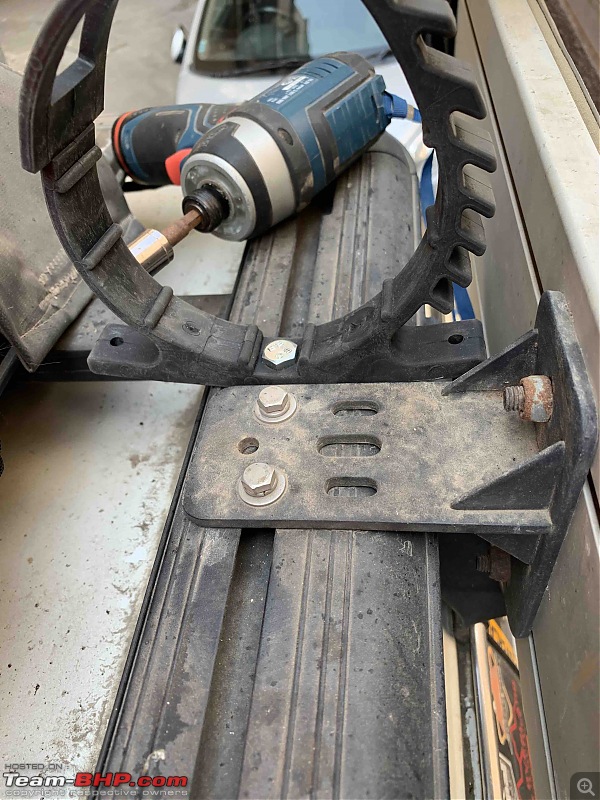

Rear:

Mitsubishi Pajero SFX - Project Overland Conversion-10rear-quickfist-attached.jpeg

Mitsubishi Pajero SFX - Project Overland Conversion-12rear-quickfist.jpeg


Pipe mounted:

Mitsubishi Pajero SFX - Project Overland Conversion-13-mounted.jpeg


Mitsubishi Pajero SFX - Project Overland Conversion-14-water-pipe-facet.jpeg

The water flows by gravity and works pretty well:

Mitsubishi Pajero SFX - Project Overland Conversion-15actual-usage-1.jpeg

We used it a lot during the camping and then realised that I hadn't raise the front of the pipe and some water remained. So quickly put a packing under the front and got another litre more of water out:

Mitsubishi Pajero SFX - Project Overland Conversion-16-raised-pipe-front.jpeg

All in all a good DIY and I was happy to put this together in such a short time.

After use, just open the quickfist clamps and remove the pipe. Takes less than a minute. Store the pipe empty with the filler open and let it dry out

Last edited by Tejas@perioimpl : 29th January 2020 at 15:54.
Tejas@perioimpl is offline   (9) Thanks
Old 29th January 2020, 16:02   #263
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 4,332
Thanked: 8,270 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Learnings, next steps from the above:

I need better finishing of the product. So I might just make a full new one. The whole assembly cost me around Rs. 750. Or I just cut off the 6" from the filler side. But that means a little less water to carry. I'll think of what to do.

Why the re doing of the project?

1. The filler pipe. Not happy. Need to make the filler a bit less conspicuous and also need to use the heating method to make the screw channels.

2. Considering adding a Schraeder Valve to pressurise the tube. I already have a 20 psi pressure release valve so there will not be excess pressure build up due to heat. Though these pipes are rated at least 4 times that psi.

3. The pressure means you have more force of water coming. However, that also means I will use up water faster.

4. Also considering a quick release option for the pipe and faucet. A long pipe so I can route the washing a bit away from the vehicle otherwise the area under the awning gets mucky.

5. A slight taper towards the back.

6. Back spray paint mostly. But have to consider that this would heat up the water a bit or considerably depending on the summers.

Last edited by Tejas@perioimpl : 29th January 2020 at 16:05. Reason: corrected typos
Tejas@perioimpl is offline   (1) Thanks
Old 29th January 2020, 17:14   #264
Senior - BHPian

ariesonu's Avatar

Join Date: Mar 2010
Location: Bombay
Posts: 1,343
Thanked: 2,386 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Quote:
Originally Posted by Tejas@perioimpl View Post
I need better finishing of the product. So I might just make a full new one. The whole assembly cost me around Rs. 750. Or I just cut off the 6" from the filler side. But that means a little less water to carry. I'll think of what to do.
OR buy Nuova Rade Flexible Water Tank Rectangular 55 Liters.

https://www.nuovarade.com/product.ph...categoryId=114
https://www.waveinn.com/nautical-fis...ar/136520025/p
From 55 litres to 150 litres storage tanks are available.

If your DIY itch is still high then think of using 6" fire hose. Flexible, Foldabale, can take extreme pressures & since its pliable it may sort your pressure issues also. You can also modify it by making single point for filling as well as using.

You had not added any vent and in summer this arrangment would have bursted with heated water, if filled to capacity.

Regards-SS

Last edited by ariesonu : 29th January 2020 at 17:19. Reason: Adding content
ariesonu is offline   (5) Thanks
Old 30th January 2020, 10:54   #265
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 4,332
Thanked: 8,270 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Quote:
Originally Posted by ariesonu View Post
OR buy Nuova Rade Flexible Water Tank Rectangular 55 Liters.

https://www.nuovarade.com/product.ph...categoryId=114
https://www.waveinn.com/nautical-fis...ar/136520025/p
From 55 litres to 150 litres storage tanks are available.

If your DIY itch is still high then think of using 6" fire hose. Flexible, Foldabale, can take extreme pressures & since its pliable it may sort your pressure issues also. You can also modify it by making single point for filling as well as using.

You had not added any vent and in summer this arrangment would have bursted with heated water, if filled to capacity.

Regards-SS
PVC pipes can take a lot of pressure too and the advantage is that they can easily be secured to the roof rack and is cheap whereas fire hose would be difficult to secure.

The filler cap on top is not airtight currently so no issue of a pressure build up.
Tejas@perioimpl is offline
Old 10th February 2020, 10:58   #266
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 4,332
Thanked: 8,270 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Got the Pajero serviced last week.

The oil pressure switch was fault and there was some oil leaking out and the switch of replaced.

The old oil switch:

Mitsubishi Pajero SFX - Project Overland Conversion-oil-switch.jpg

Cars done nearly 117,000 kms and got the 120,000 service done. As always, all oils and filters changed, timing belt checked. Got the EGR pipes cleaned and that has had a major improvement in pickup and smoothness of the engine and I would recommend everyone to get it done.

She can now accelerate from 4th Gear at less than 40kmph and 1200rpm without any knocking!

Got the brake pads replaced as well.
Tejas@perioimpl is offline   (1) Thanks
Old 10th February 2020, 11:54   #267
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 4,332
Thanked: 8,270 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

A long pending update has been a tailgate table:

Mitsubishi Pajero SFX - Project Overland Conversion-61bcwr8mmzl._ac_sl1100_.jpg

Image Source: Amazon.com

After fitting the inverter, it became all the more necessary because with a fully loaded car, there was no place to make coffee in peace.

So started the DIY. This DIY happened through the week - an hour a day in the evening to finally reach this stage:

Mitsubishi Pajero SFX - Project Overland Conversion-img_7797.jpeg


As with most of my DIYs, I try to use material I already have available.

I'm blessed with a closed garage that I have converted into small work area. Being a hoarder, I always have stuff to use much to the chagrin of my wife who is exactly the opposite of me and loves to throw away stuff that is not in use. Me, on the other hand would salvage screws from something that even I would throw away!

My DIYs are not meticulously planned out before I start and a lot plans and ideas change as I progress in making the stuff.

To make this table, I had a few limitations:

1. I did not want to make new screw holes. Thus, I had to use the existing options. The only option was the door handle which had a strong mounting point.

2. Secondly, the table could not be big. Two reasons - a. it would block the inbuilt tool tray (though I don't use that) and b. it would block the rear windshield washer fluid filling inlet. Thus, it had to be small but big enough to accommodate the coffee mugs, and hot water kettle.

What I love is the PVC foam boards - light weight, easy to cut, don't need too much finishing like plywood does and strong enough for my purpose.

I had some 10mm pieces lying at home and decided to use that.

Because I was using the existing door handle, I need to make a slight elevation to fit the door handle back. Even though I didn't need to fit the door handle, I decided to fit it because I would have misplaced it if I had kept it in the garage somewhere.

So the board is cut - the holes at the bottom is for fixing this to the door and the top for the handle:

Mitsubishi Pajero SFX - Project Overland Conversion-board-cut.jpeg

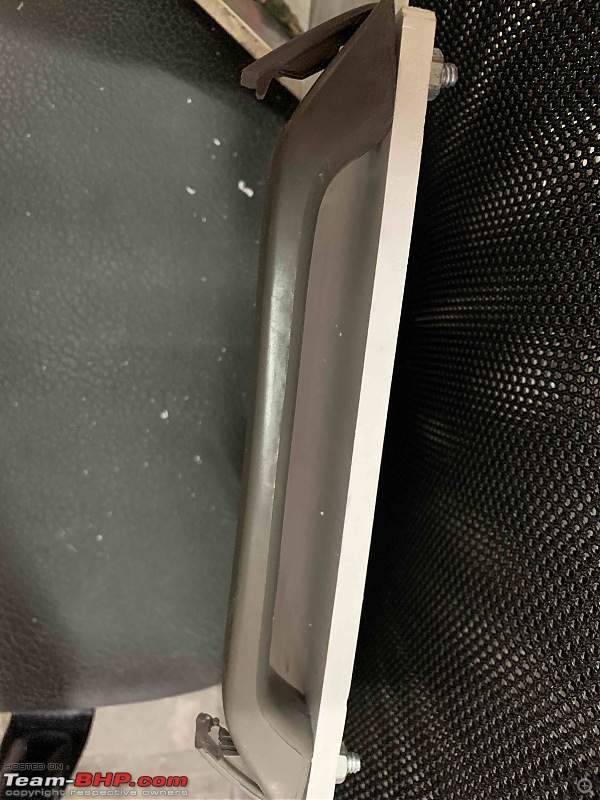

Handle Fit:

Mitsubishi Pajero SFX - Project Overland Conversion-handle-fit.jpeg

The "desk" part of the board also cut:

Mitsubishi Pajero SFX - Project Overland Conversion-boards-cut.jpeg

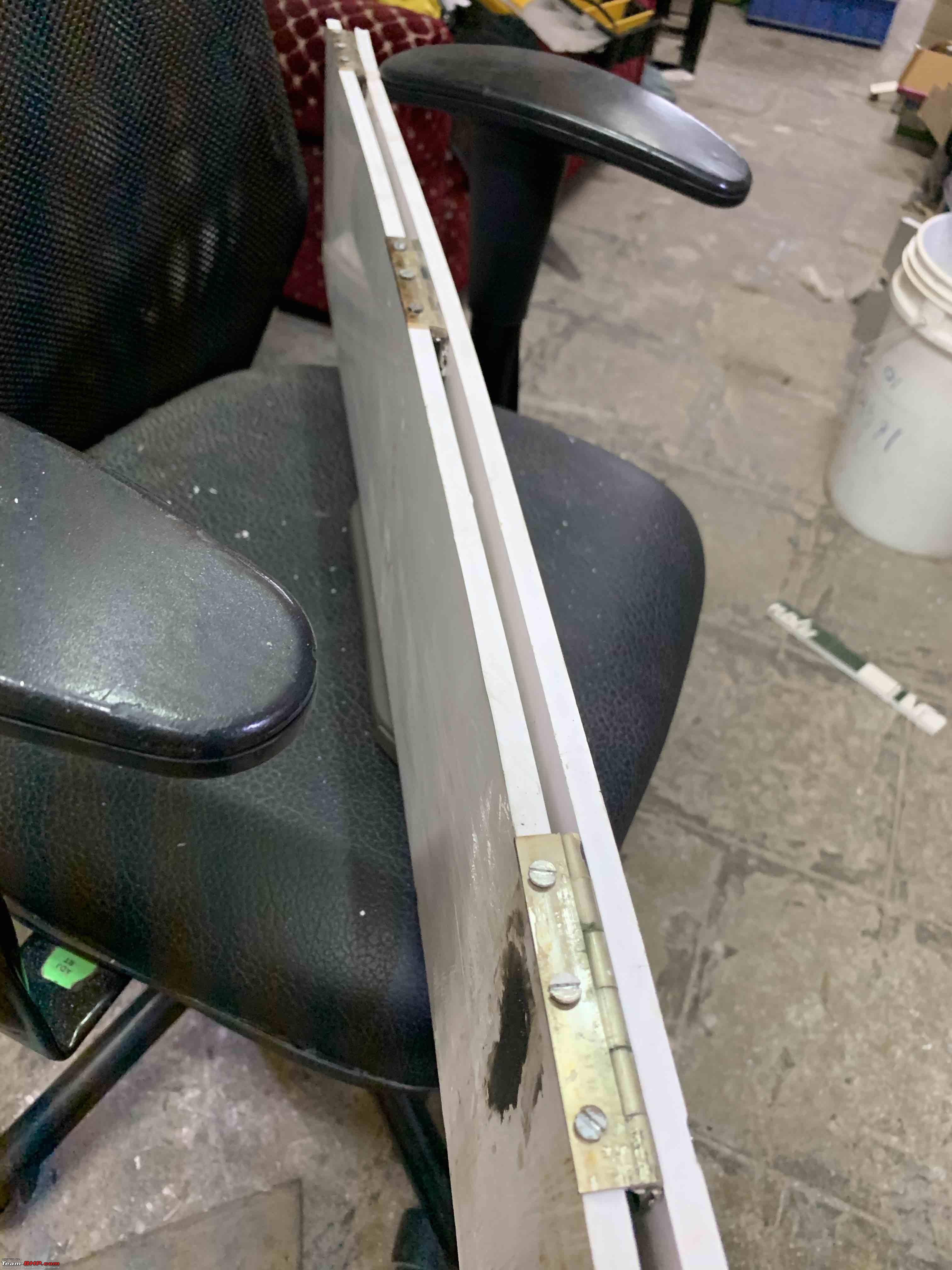

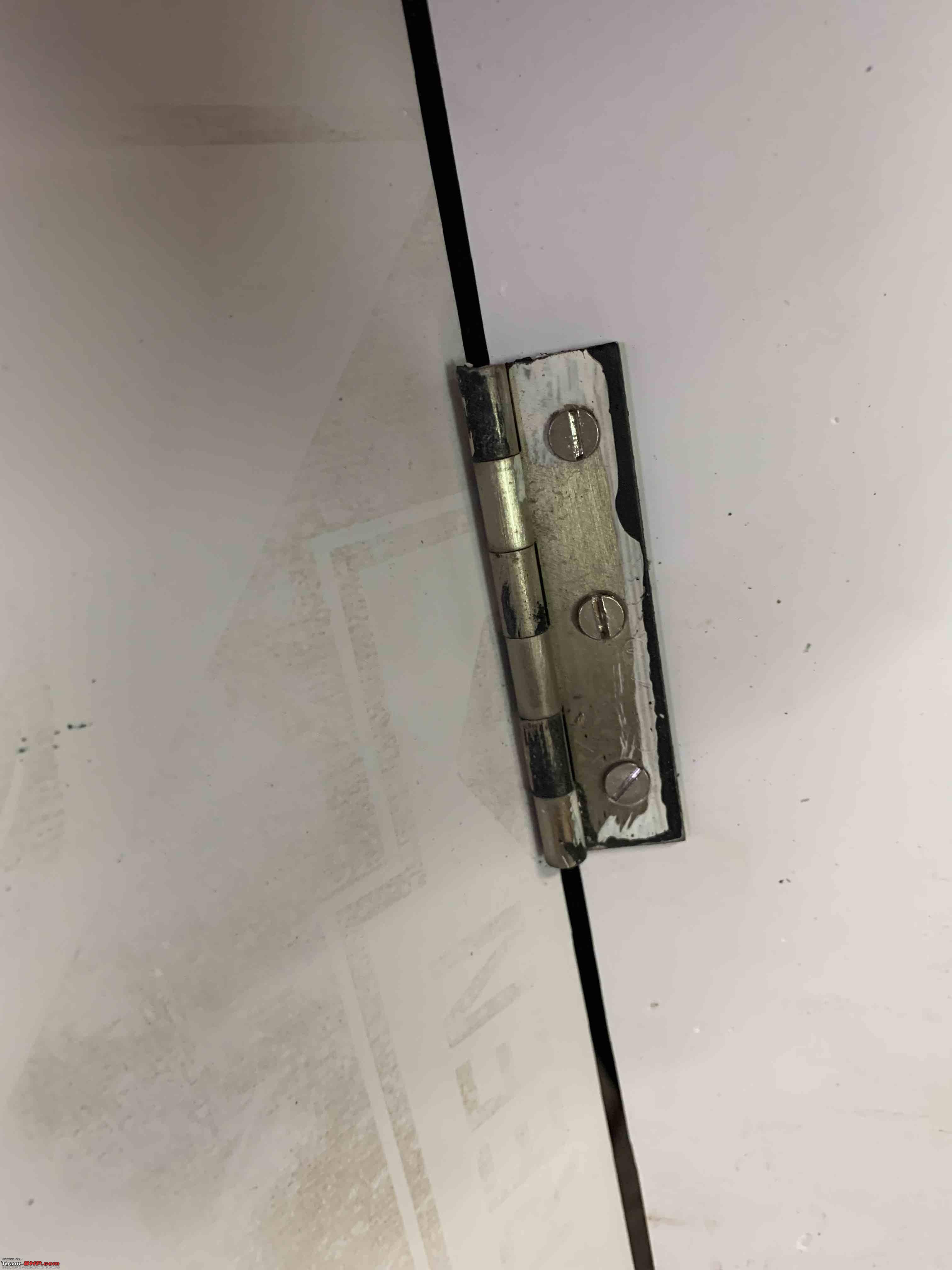

Hinges attached:

Mitsubishi Pajero SFX - Project Overland Conversion-hinges-attached.jpeg

Mitsubishi Pajero SFX - Project Overland Conversion-hinges.jpeg

Mitsubishi Pajero SFX - Project Overland Conversion-hinge-again.jpeg

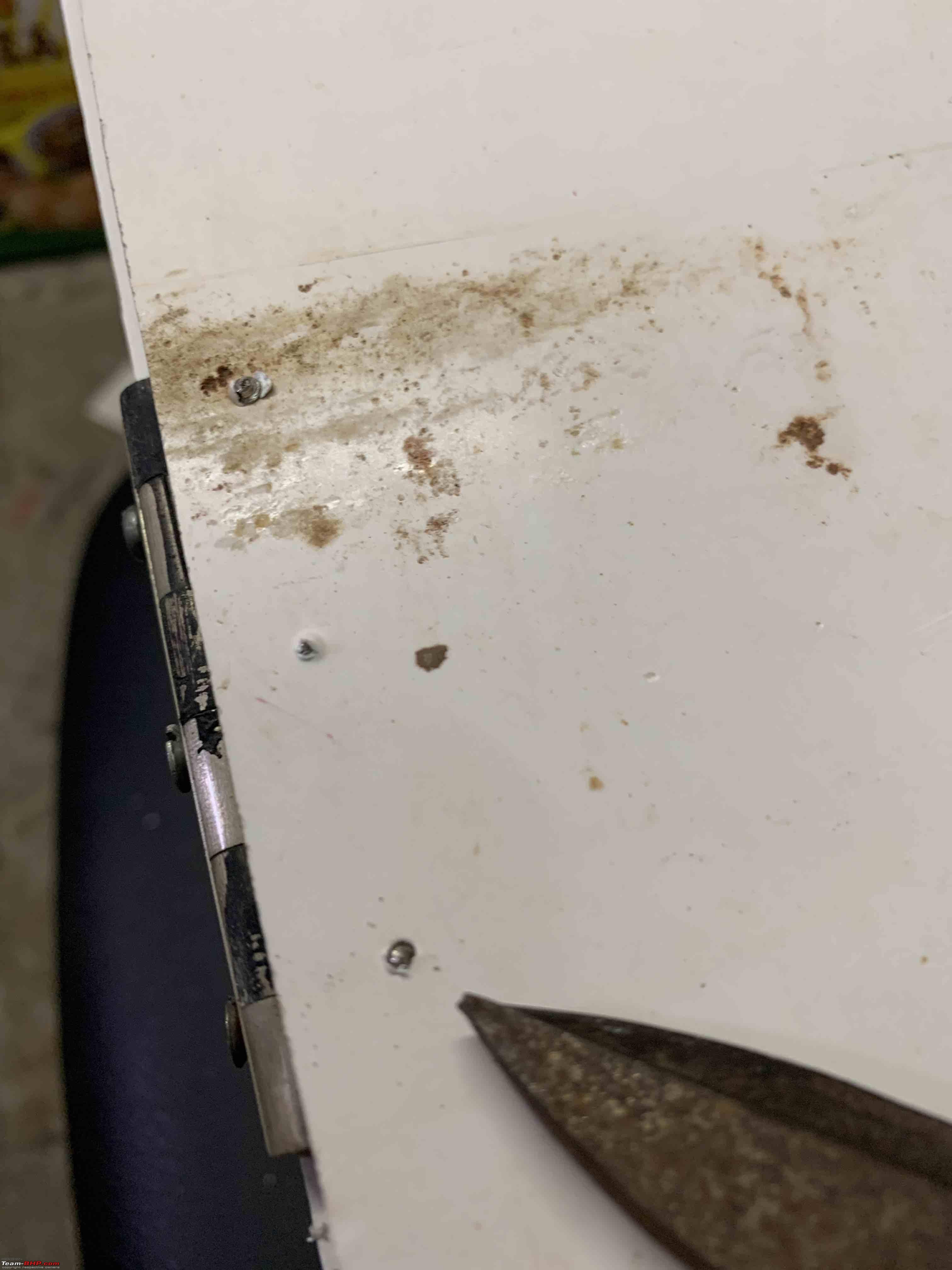

I didn't have very small screws and the tips came off the back. So used double sided foam tape to cover the sharp tips. The foam would also cushion agains any rattling with the door pad:

Mitsubishi Pajero SFX - Project Overland Conversion-screws-coming-out.jpeg

Mitsubishi Pajero SFX - Project Overland Conversion-foam-tape-screw.jpeg

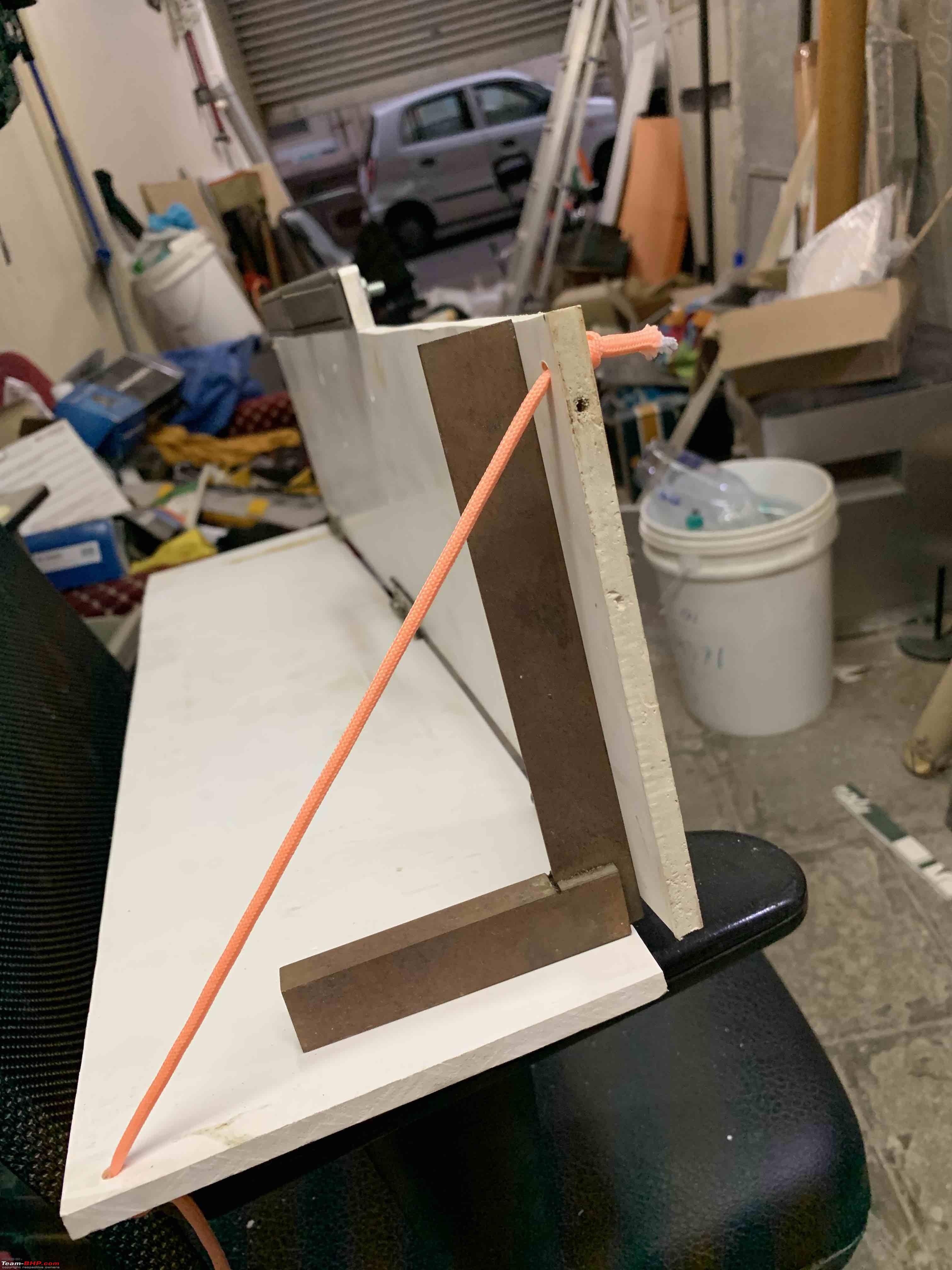

Then made holes for paracord to keep the "desk" portion at right angles - use a carpenter's 90° guide for that:

Mitsubishi Pajero SFX - Project Overland Conversion-right-angle-paracord.jpeg

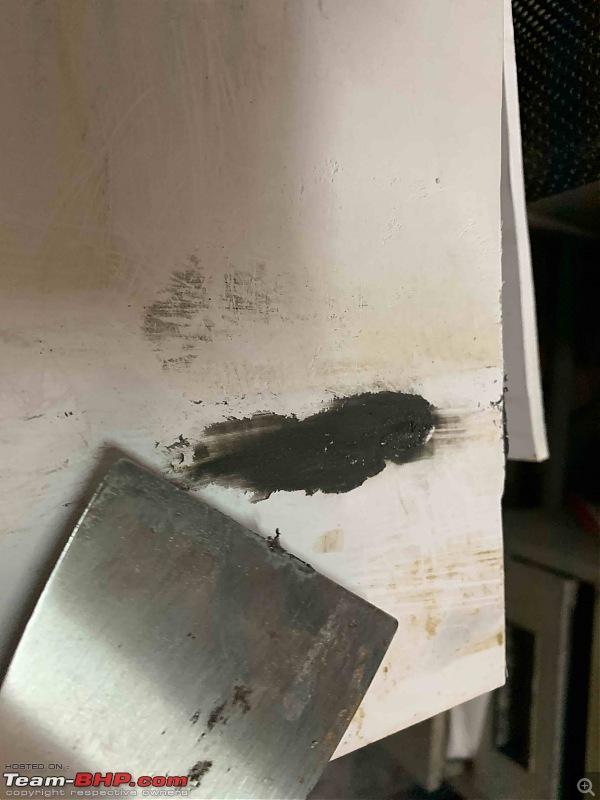

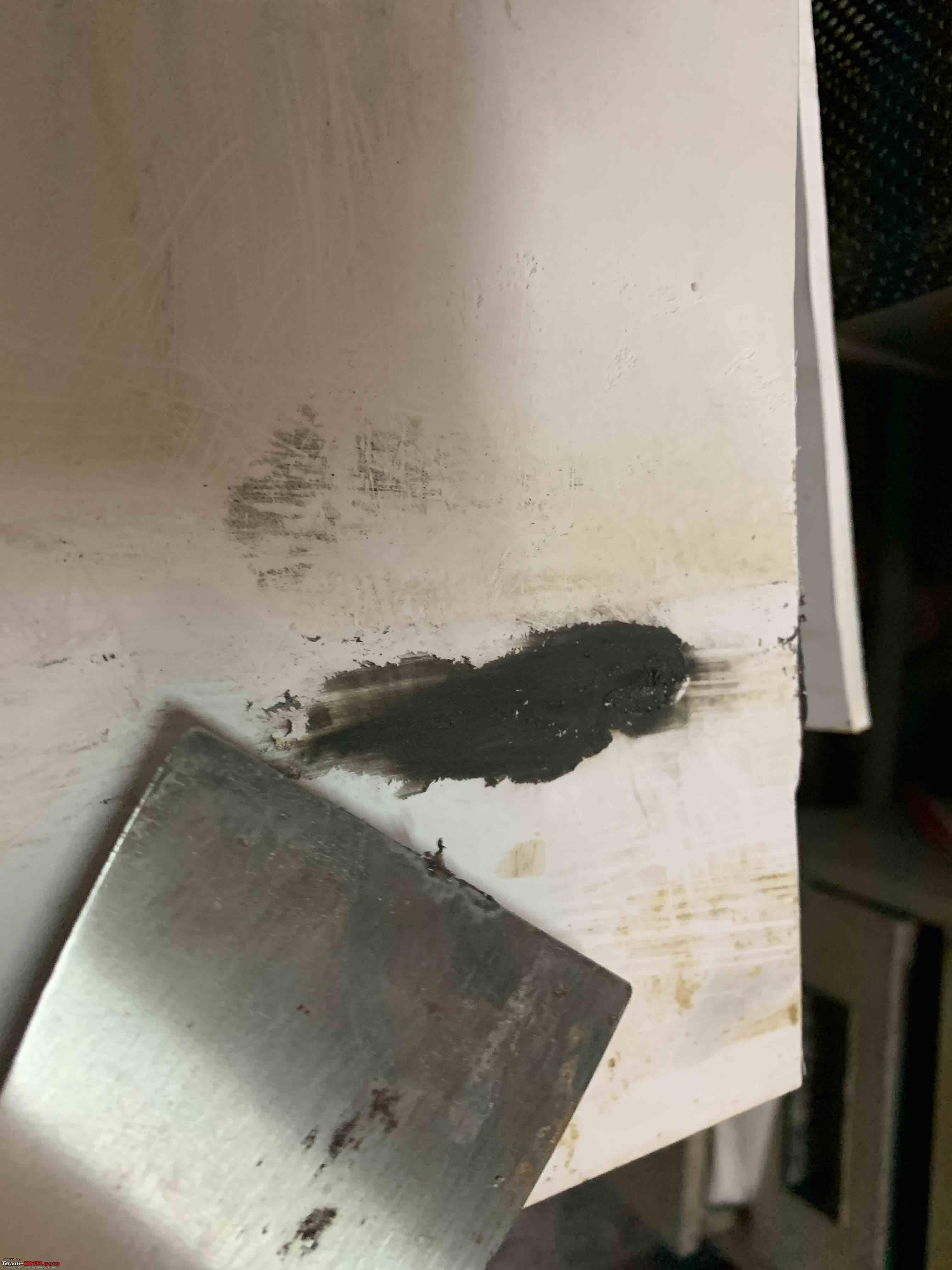

As you can see, these are old boards and near one hinge there was a deep scuffing. Filled that with Mseal:

Mitsubishi Pajero SFX - Project Overland Conversion-mseal-fill-gaps.jpeg

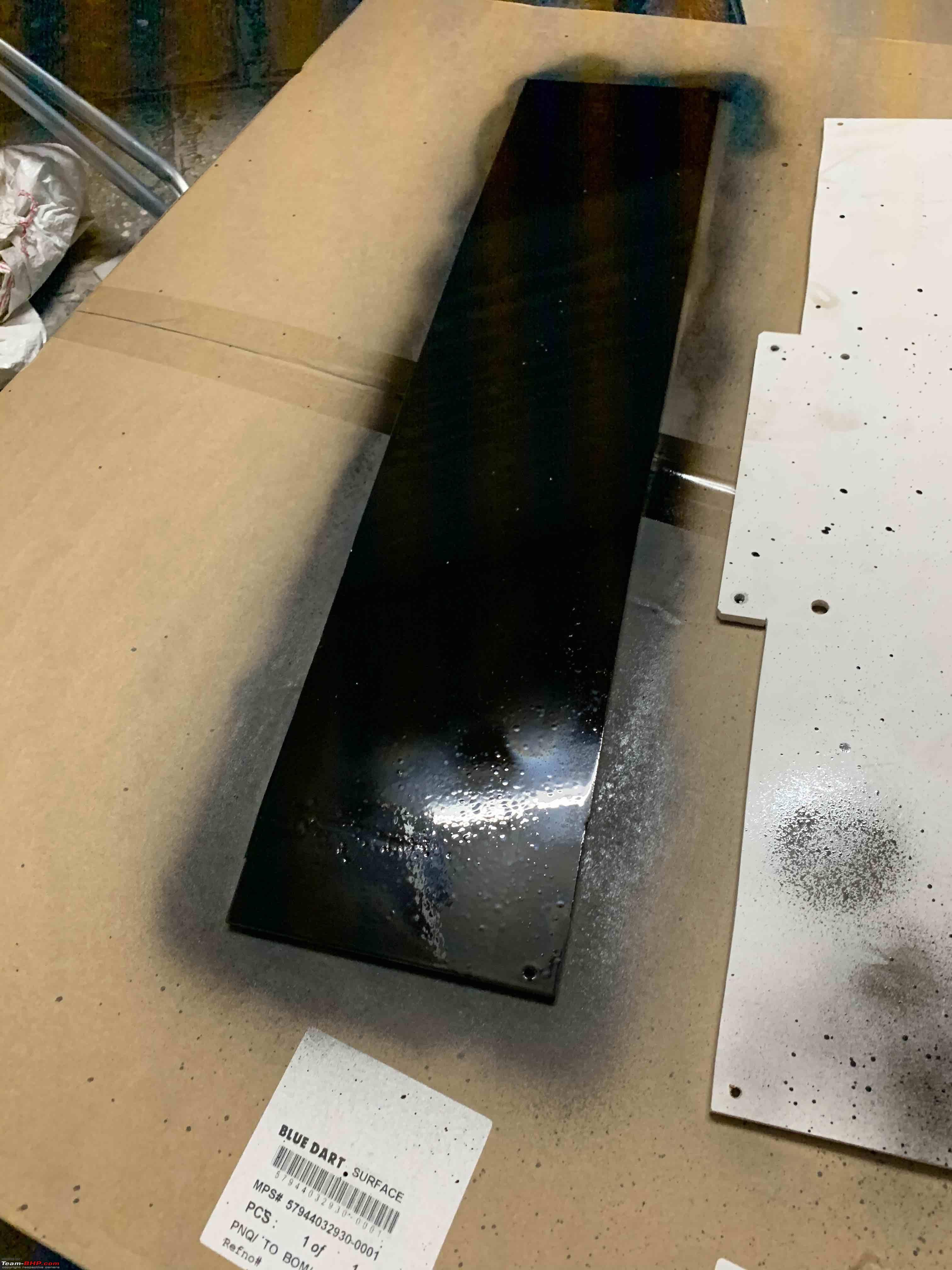

Black spray painted the entire unit:

Mitsubishi Pajero SFX - Project Overland Conversion-01-spray-painted.jpeg

Last edited by Tejas@perioimpl : 10th February 2020 at 11:55. Reason: corrected some typos
Tejas@perioimpl is offline   (3) Thanks
Old 10th February 2020, 12:00   #268
Team-BHP Support

benbsb29's Avatar

Join Date: Nov 2006
Location: Brisbane
Posts: 9,393
Thanked: 8,955 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

That's come out quite well. I like how you provisioned to retain the door handle as well. Good work.
benbsb29 is offline   (1) Thanks
Old 10th February 2020, 12:09   #269
Senior - BHPian

blackwasp's Avatar

Join Date: Apr 2015
Location: Navi Mumbai
Posts: 2,895
Thanked: 25,182 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Quote:
Originally Posted by Tejas@perioimpl View Post
Another weekend DIY project.

I have a superb Bestek 1000W invertor purchased from Amazon UK.
How's the performance at full load? Say if I have to run a 1000W vacuum off it, would it work? I'm also guessing you have to keep the engine running?
blackwasp is offline
Old 10th February 2020, 12:12   #270
Distinguished - BHPian

Tejas@perioimpl's Avatar

Join Date: Sep 2008
Location: Bombay
Posts: 4,332
Thanked: 8,270 Times
Default Re: Mitsubishi Pajero SFX - Project Overland Conversion

Next up, I wanted to have the coffee making ingredients close at hand.

Thus, some sort of drawer/attachment needed to be made to fit onto the "desk".

Currently I would carry a separate box with tea/coffee satchets and I wanted to save the space and also the headache of remembering to carry it before a camping trip or even a work trip when we do offroad junkie events and during the set up time, the coffee breaks are most welcome.

So started rummaging through old used stuff and zeroed into an old CD carrying case. The CDs are passeŽand this case was perfect for my use:

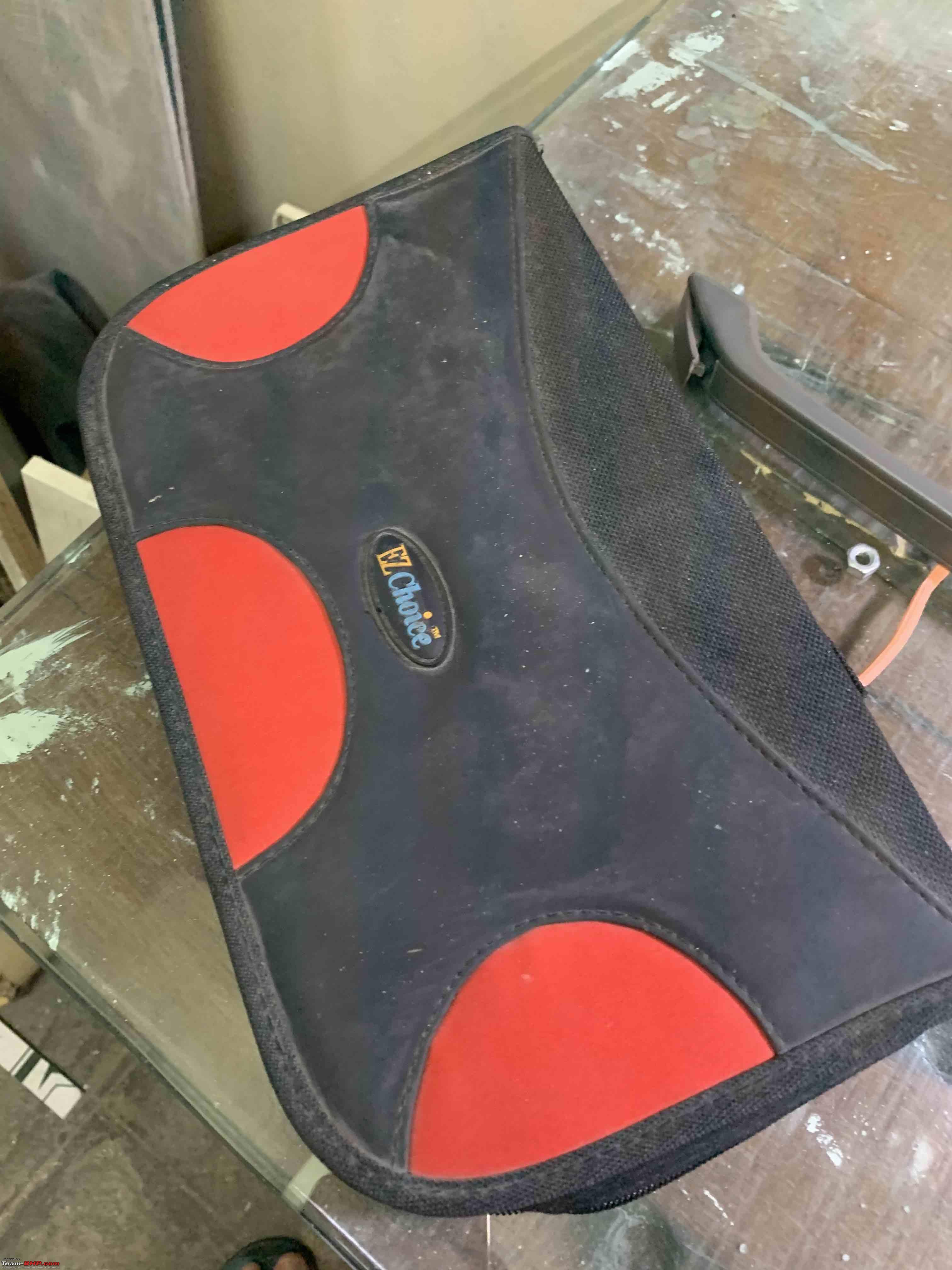

Mitsubishi Pajero SFX - Project Overland Conversion-02-cd-case.jpeg

Cut away the insides: don't throw these, they are great to hang in garage to store the cutting disks from your angle grinder!

Mitsubishi Pajero SFX - Project Overland Conversion-03-cut-cd-slots-off-case.jpeg

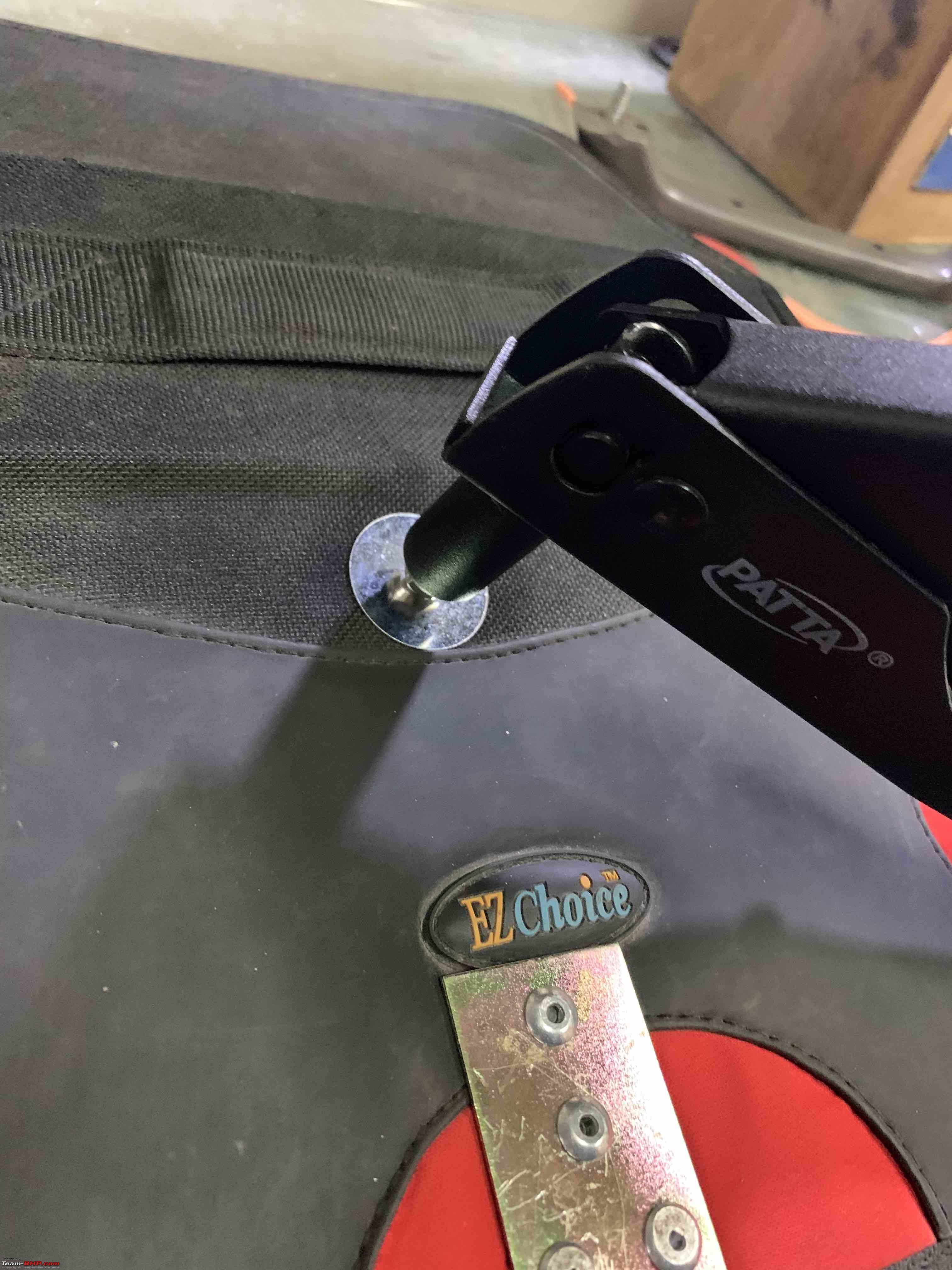

Next I need this case to swivel down when I opened the desk. So a hinge was riveted:

Mitsubishi Pajero SFX - Project Overland Conversion-hinge-cd-case.jpeg

Mitsubishi Pajero SFX - Project Overland Conversion-riveting.jpeg

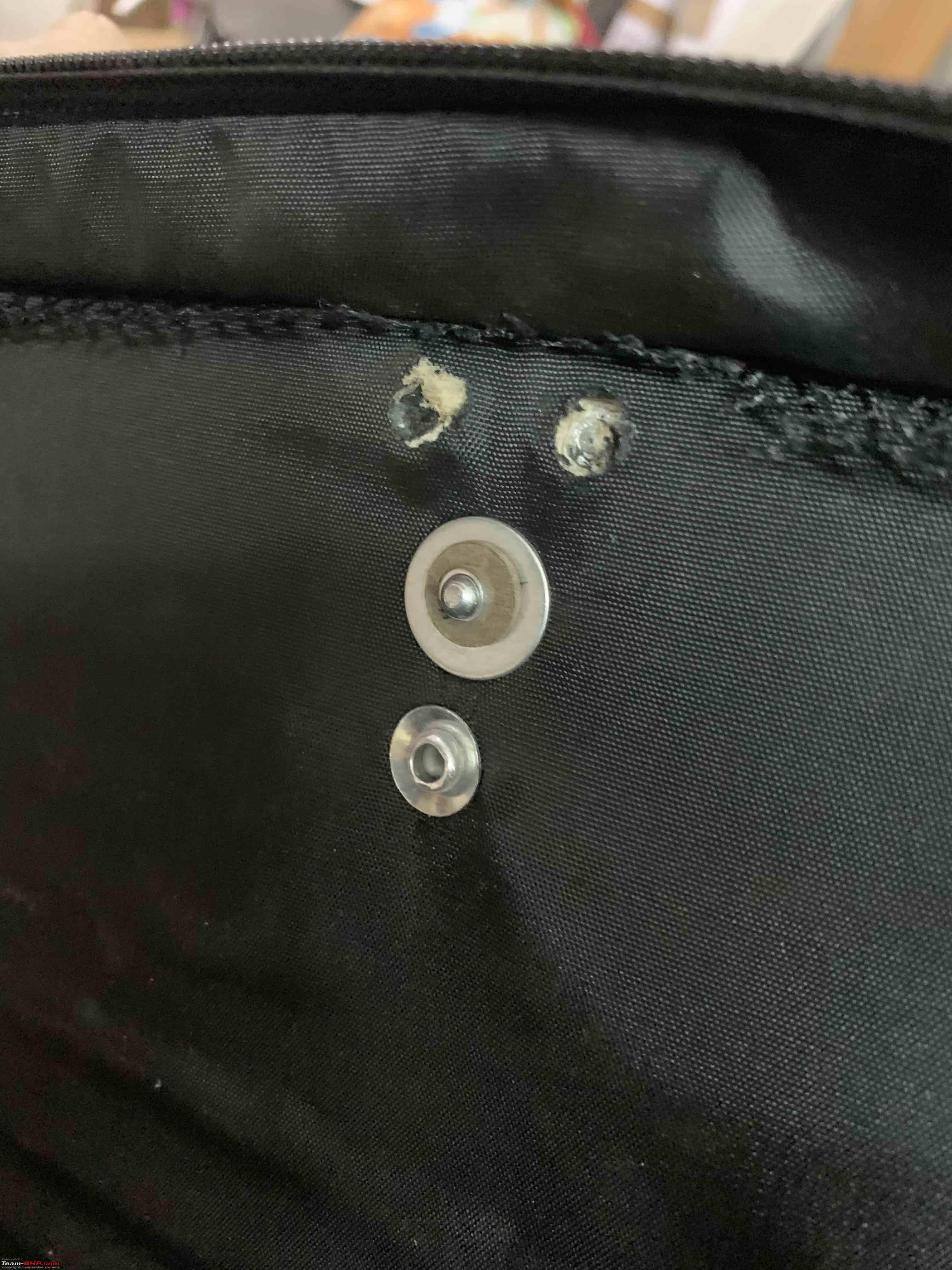

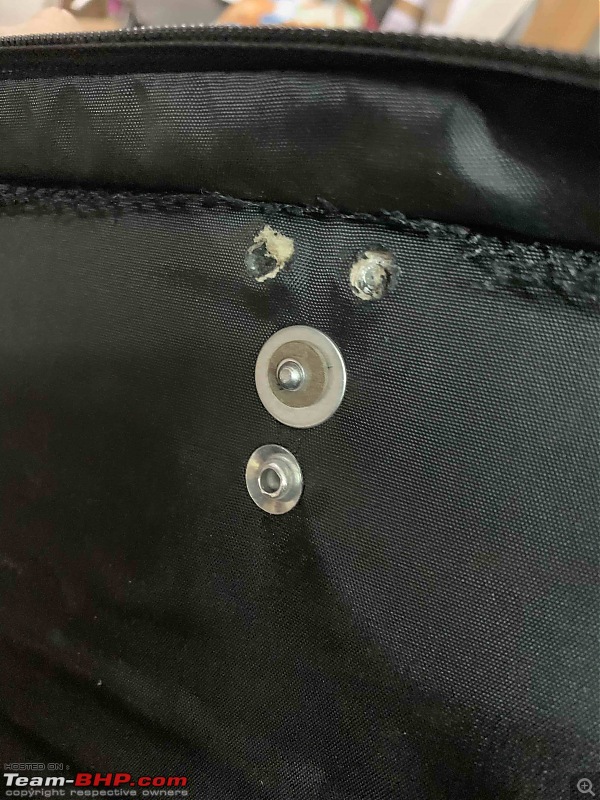

Messed up a bit non the top two rivets. Had forgotten to add in washers because the case had a thin flimsy plastic backing inside and the rivets tore through.

Mitsubishi Pajero SFX - Project Overland Conversion-hinge-rivet.jpeg

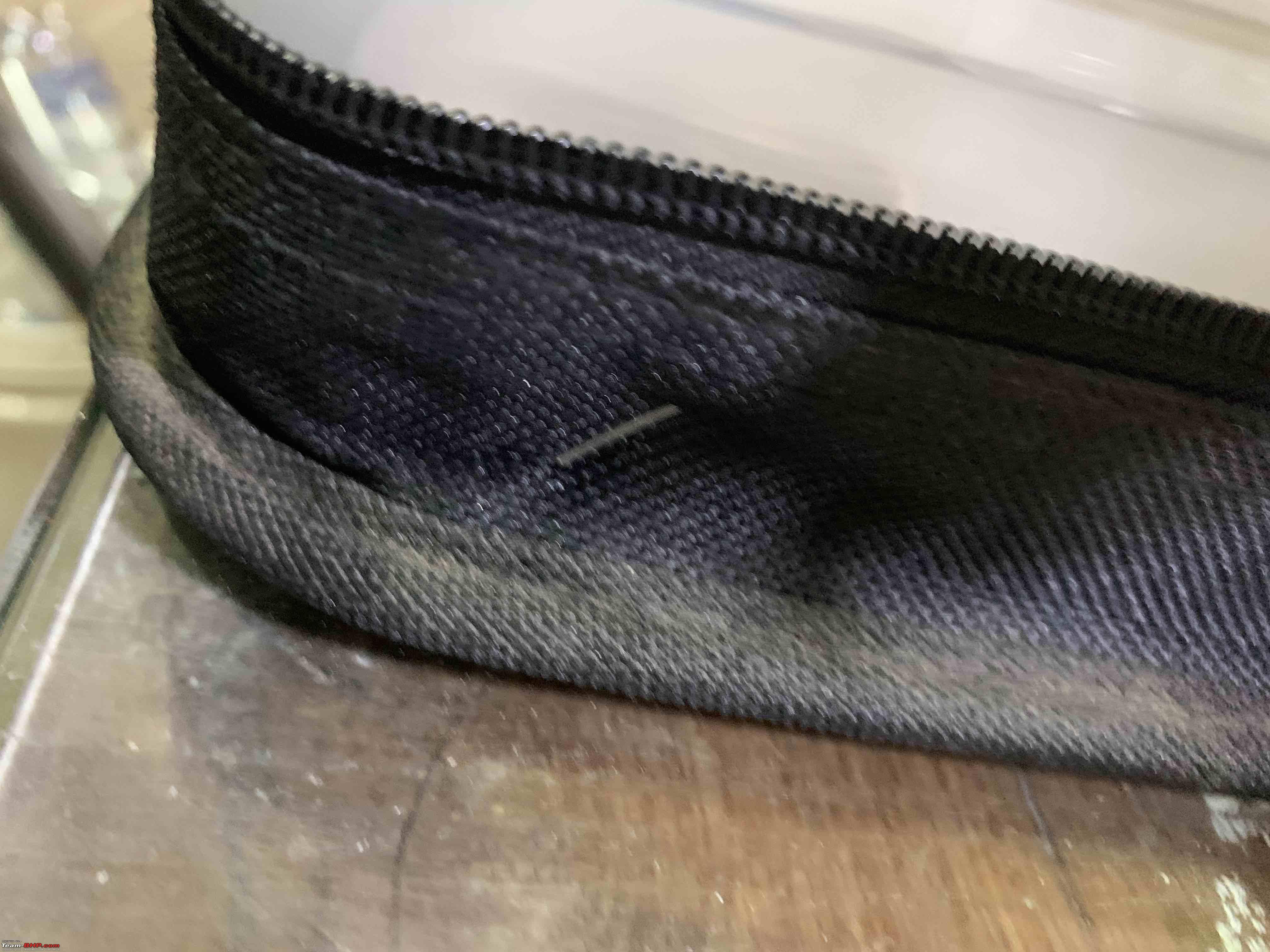

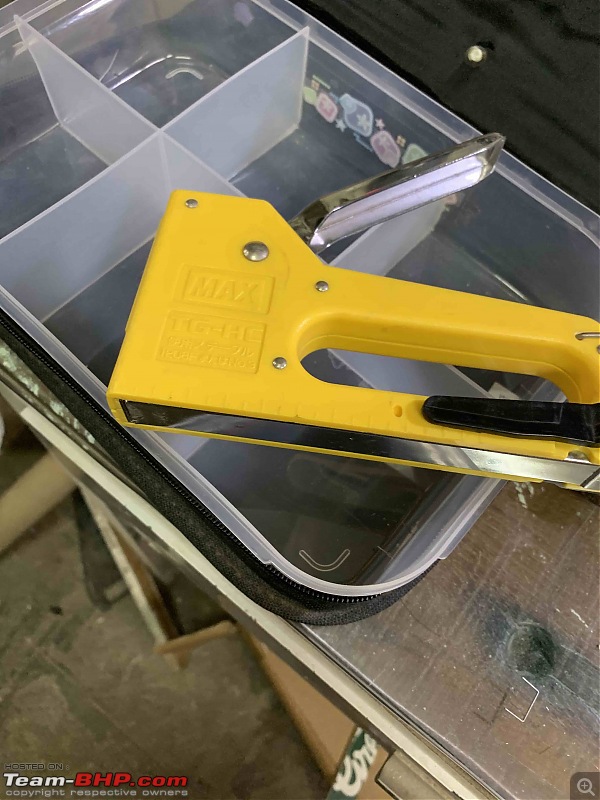

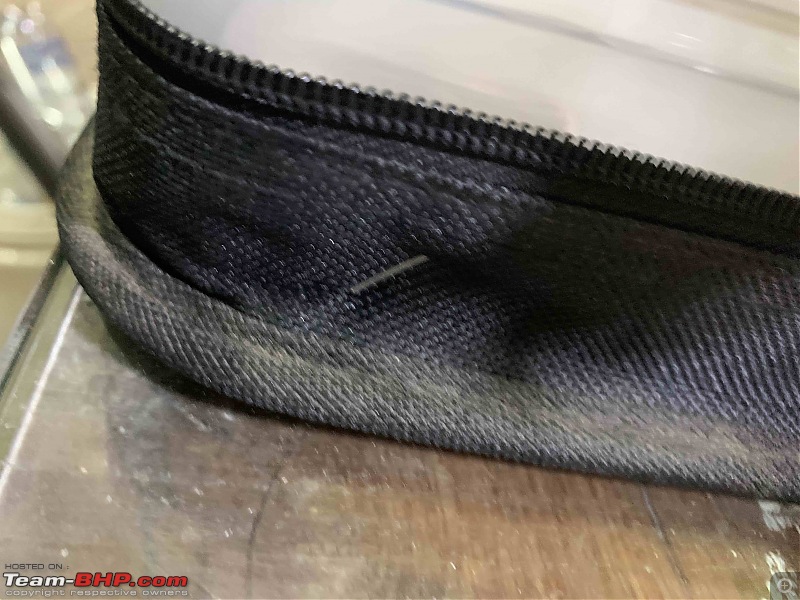

Then I took the existing coffee/tea box and used a stapler tacker to secure it to the CD case:

Mitsubishi Pajero SFX - Project Overland Conversion-tacking-machine.jpeg

Mitsubishi Pajero SFX - Project Overland Conversion-tacks-.jpeg

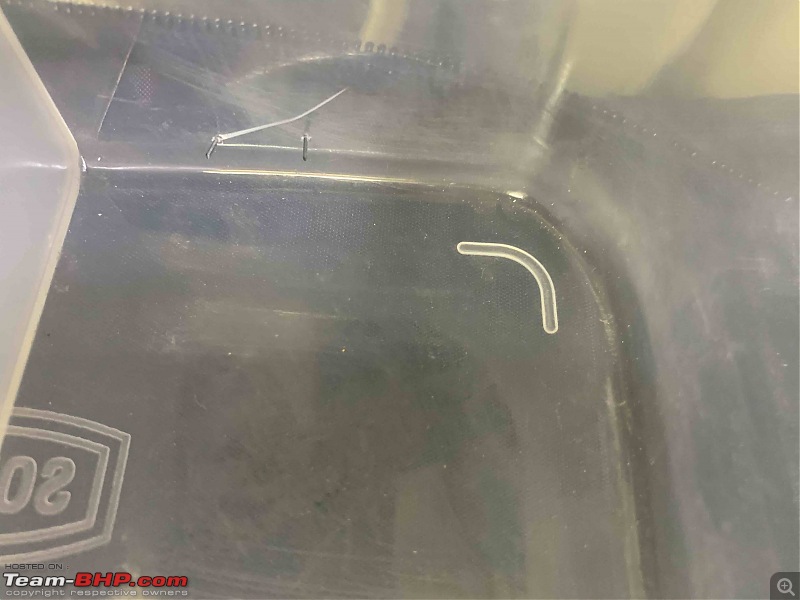

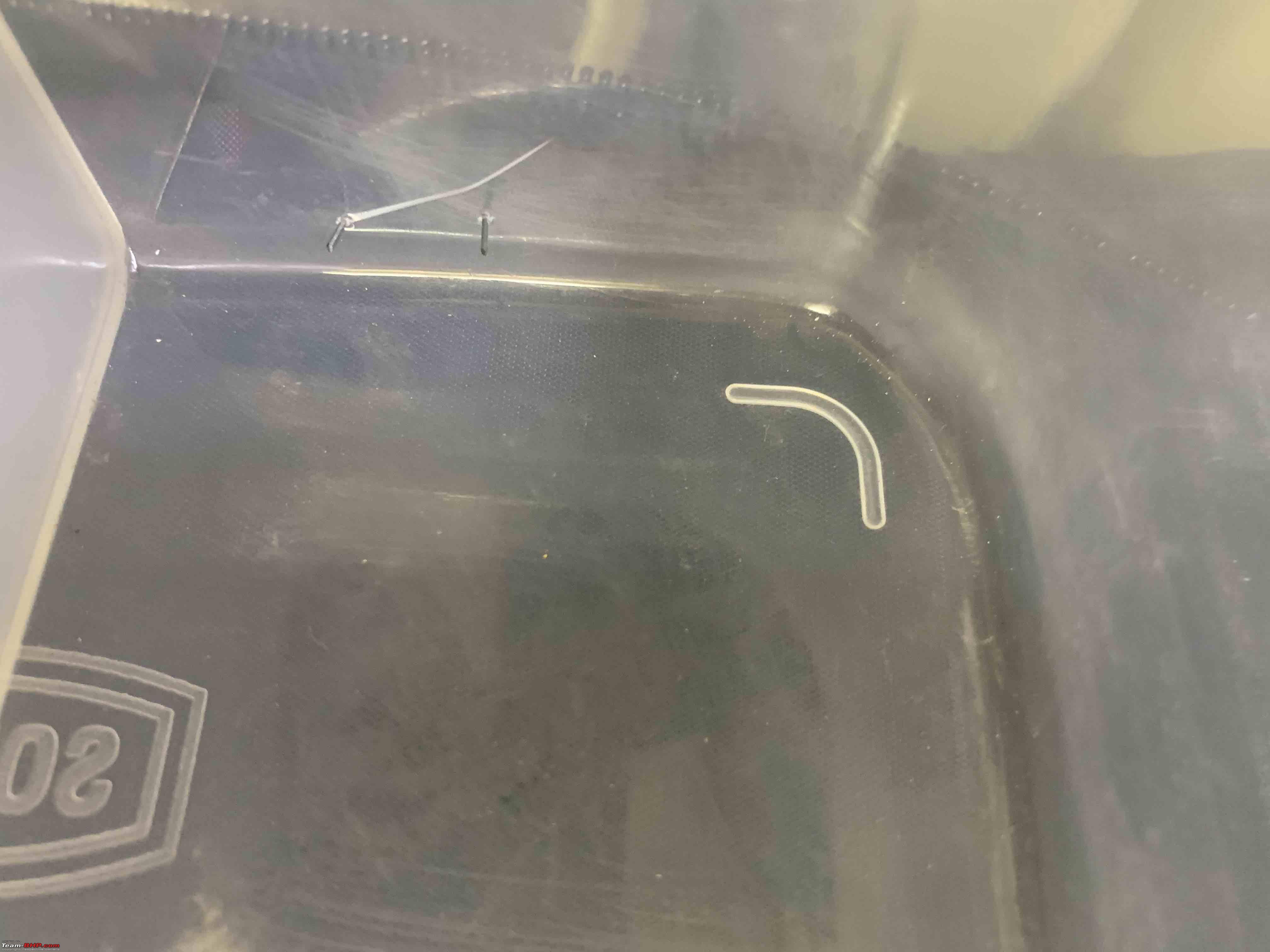

Be careful when you tack through the plastic - it may crack - give enough support at the back:

Mitsubishi Pajero SFX - Project Overland Conversion-tacks-plastic-box.jpeg

Use a screw driver then to bend it:

Mitsubishi Pajero SFX - Project Overland Conversion-tacks-plastic-bent.jpeg

Cut the opposite side chain and zipped it to the below part and used rubber solution to secure to the box to make it a bit more aesthetic.

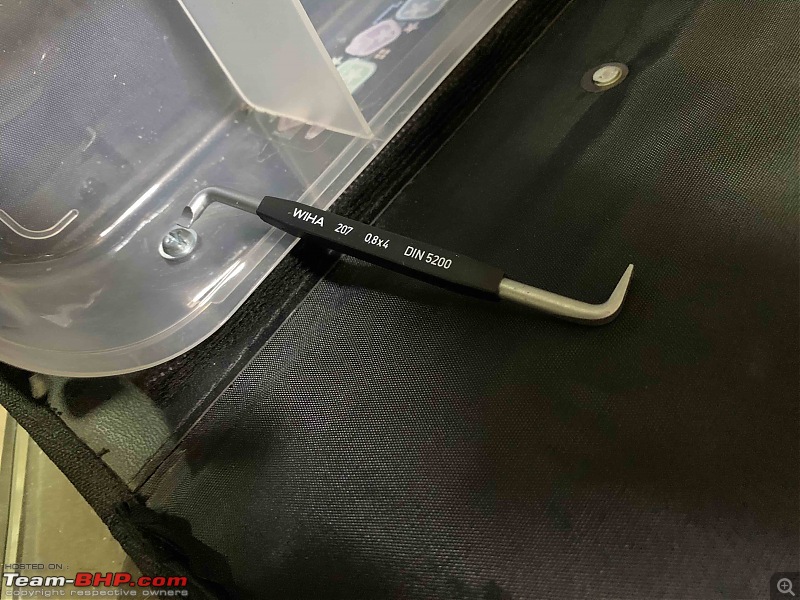

At the back of the box used two nut bolts to secure it so when open, the contraption stays at right angles. I have a penchant for buying stuff that I 'may' sometime use and this right angled screw driver can handy:

Mitsubishi Pajero SFX - Project Overland Conversion-angled-screw-driver.jpeg

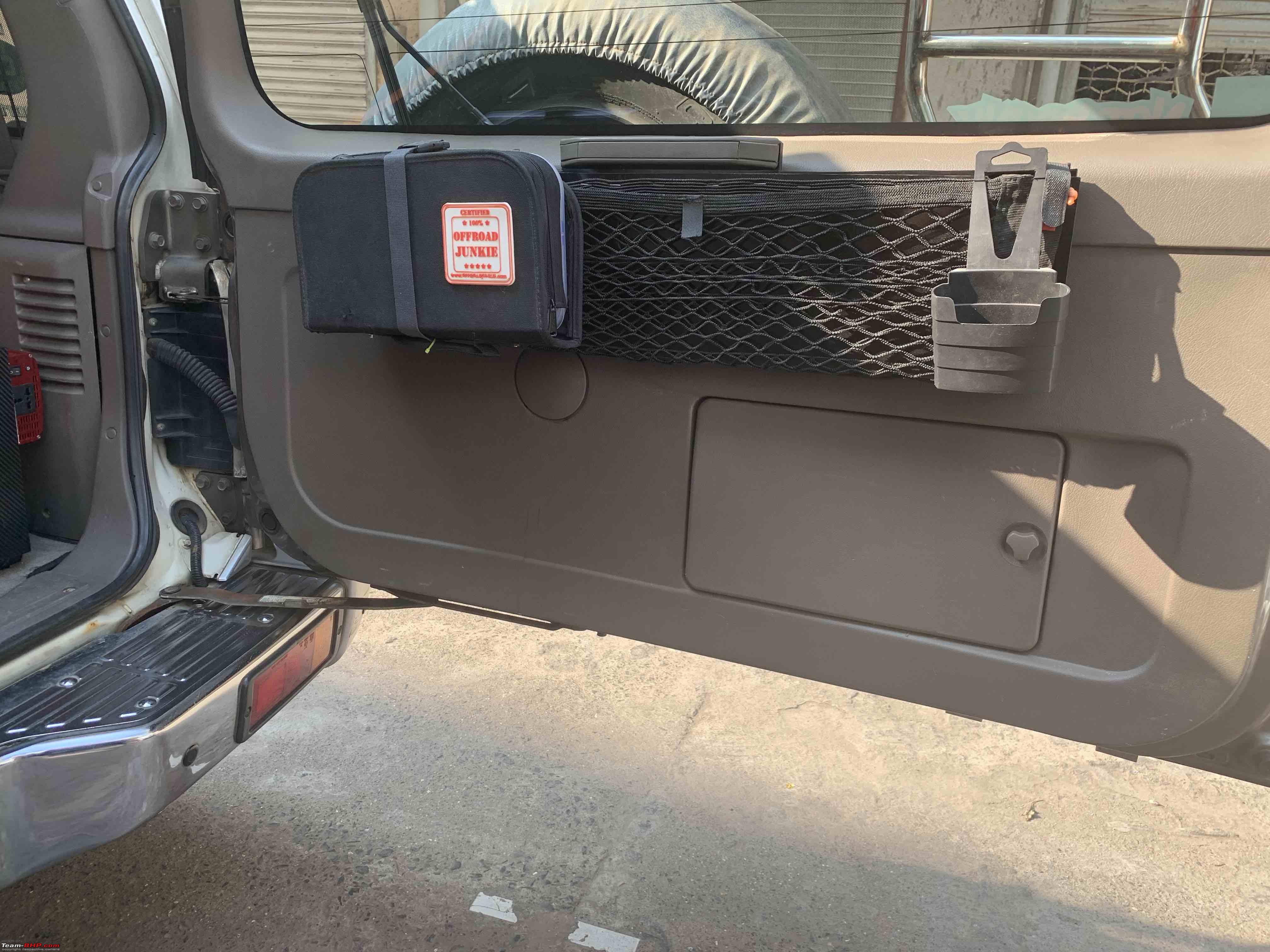

I had an old clip on belt from an old track pant which I had salvaged and kept. Used that to close the box when not in use. Unfortunately don't have pics of that but this is how it secures when closed:

Mitsubishi Pajero SFX - Project Overland Conversion-img_9773.jpeg

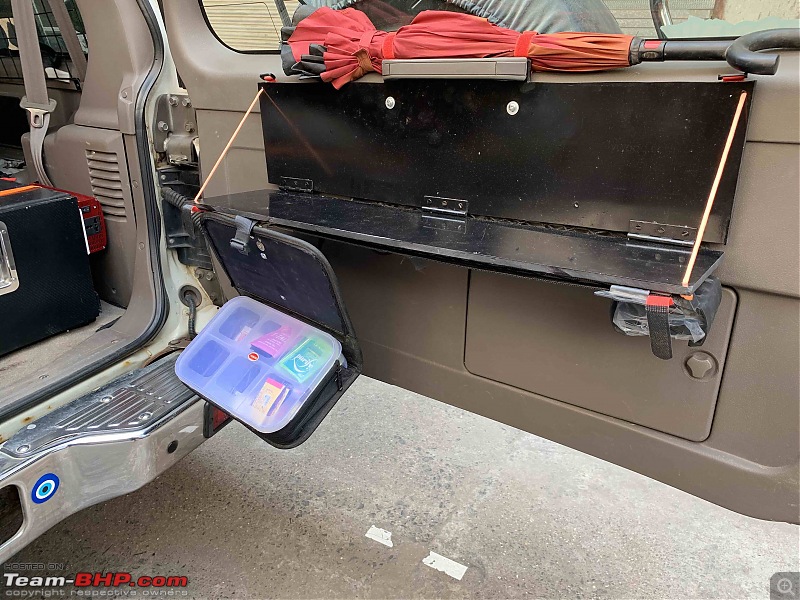

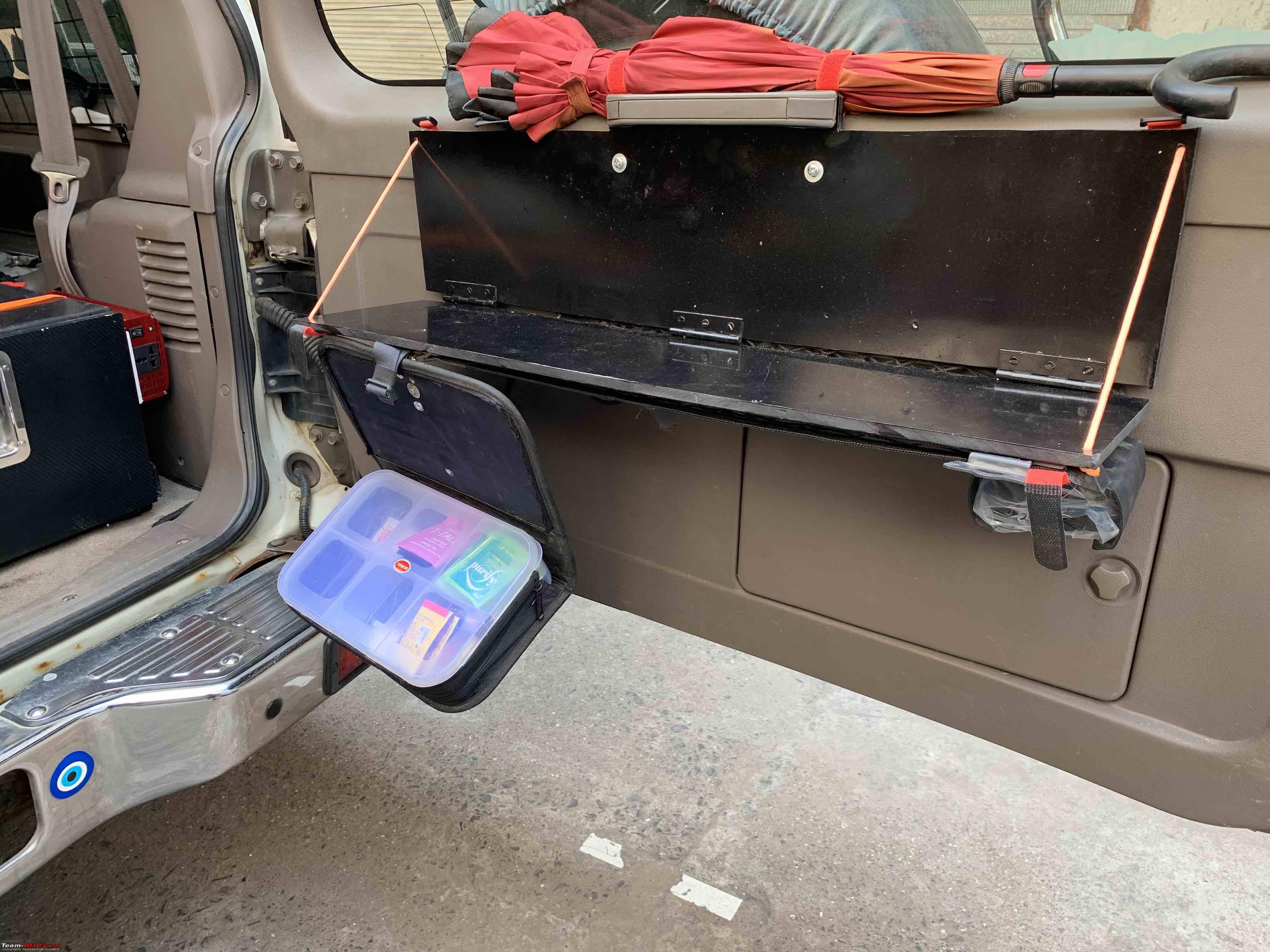

And when open, it's accessible:

Mitsubishi Pajero SFX - Project Overland Conversion-img_9182.jpeg

Last edited by Tejas@perioimpl : 10th February 2020 at 12:39.
Tejas@perioimpl is offline   (3) Thanks
Reply

Most Viewed
Thread Tools Search this Thread
Search this Thread:

Advanced Search

Copyright ©2000 - 2021, Team-BHP.com
Proudly powered by E2E Networks
