Himalayan 450 Chassis Frame Breaking, multiple instances! After-market crash guards to blame?




Link to first HIMALAYAN 450 Chassis breakdown I found on YouTube. I think it is from Tinsukia Assam.

I don't know if it has already been posted in the forum.


Note from Mod:
Adding some screenshots since the video is no longer on Youtube

Name:  videoframe_42700.png
Views: 1013
Size:  141.7 KB

Name:  videoframe_47800.png
Views: 1011
Size:  189.7 KB

Name:  videoframe_51000.png
Views: 987
Size:  256.6 KB

Name:  videoframe_52100.png
Views: 1029
Size:  269.6 KB

Name:  videoframe_53100.png
Views: 1026
Size:  249.4 KB

Name:  videoframe_53600.png
Views: 1042
Size:  260.8 KB

Last edited by Rehaan : 5th June 2024 at 12:06.
CLASSICREBORN is offline   (20) Thanks
Old 15th May 2024, 10:13   #2
Senior - BHPian

ebonho's Avatar

Join Date: Feb 2010
Location: Pune
Posts: 6,761
Thanked: 11,177 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by CLASSICREBORN View Post
Link to first HIMALAYAN 450 Chassis breakdown I found on YouTube. I think it is from Tinsukia Assam.

I don't know if it has already been posted in the forum.
Clean shear of round section tubing. I think he's saying he jumped it over a speed breaker. Thanks for the share. Its the first one I'm seeing.

Cheers, Doc
ebonho is offline   (2) Thanks
Old 15th May 2024, 12:22   #3
BHPian

b16h22's Avatar

Join Date: Feb 2015
Location: Thrissur
Posts: 902
Thanked: 2,706 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by CLASSICREBORN View Post
https://Youtube.com/watch?v=Y-IzxI9E...Zjoog9-YBZRSl7


Link to first HIMALAYAN 450 Chassis breakdown I found on YouTube. I think it is from Tinsukia Assam.

I don't know if it has already been posted in the forum.
Looks like it broke right above where the subframe mounts. Quite a weird area to fail.

Himalayan 450 Chassis Frame Breaking, multiple instances! After-market crash guards to blame?-img20231103wa0001__01.jpg
b16h22 is offline   (2) Thanks
Old 15th May 2024, 12:30   #4
Senior - BHPian

ebonho's Avatar

Join Date: Feb 2010
Location: Pune
Posts: 6,761
Thanked: 11,177 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by b16h22 View Post
Looks like it broke right above where the subframe mounts. Quite a weird area to fail.

Attachment 2606146
Weak-ened lever point. It broke at the first section of unsupported tubing after the subframe bolting plate cross truss.

Cheers, Doc
ebonho is offline   (3) Thanks
Old 15th May 2024, 18:24   #5
Newbie

Join Date: Feb 2023
Location: Siliguri
Posts: 17
Thanked: 57 Times
Re: Royal Enfield Himalayan 450 Review

@ebonho, b16h22

It is very strange to see that Royal Enfield has not taken care of this chassis breakdown issue of the Himalayan. I have not seen this on any other bike from RE.
I think it is really a point of discussion if Royal Enfield has any issue with manufacturing ADV format of bikes.
Previous Himalayan had this issue and now the new one.
It will be very helpful if owners of New Himalayan or some expert can throw some light on it.
I really like the bike and was planning to get one untill now.
CLASSICREBORN is offline   (6) Thanks
Old 15th May 2024, 18:48   #6
Senior - BHPian

VijayAnand1's Avatar

Join Date: Oct 2013
Location: Stickn' Around
Posts: 1,278
Thanked: 3,556 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by CLASSICREBORN View Post

Link to first HIMALAYAN 450 Chassis breakdown I found on YouTube. I think it is from Tinsukia Assam.

I don't know if it has already been posted in the forum.
Quote:
Originally Posted by b16h22 View Post
Looks like it broke right above where the subframe mounts. Quite a weird area to fail.
It would be hard to dissect the events preceding to this failure, but it seems it's a fatigue crack to have happened and it's alarming to say the least, and this soon in its service life.

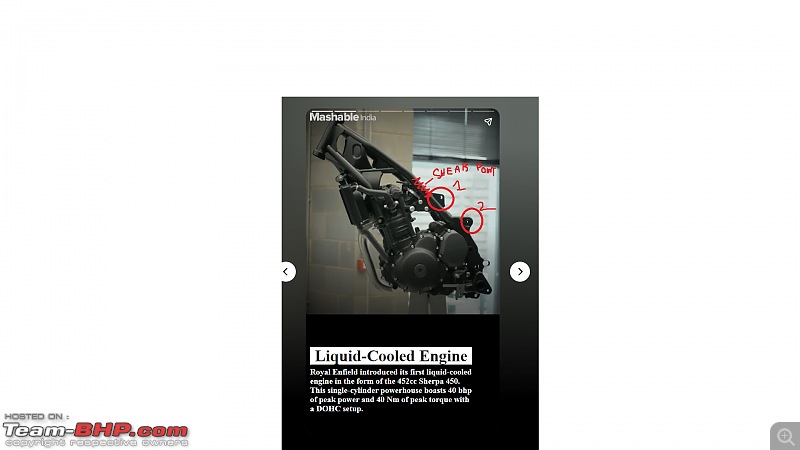

Himalayan 450 Chassis Frame Breaking, multiple instances! After-market crash guards to blame?-shear-point.jpg

There are two points where the split subframe attaches to the chassis. Incidentally, the shear point is not at the point where the subframe attaches to the chassis eyelet, but well above the bolt eyelet point which is the backbone downtube of the frame itself. Sad!
Hoping this is a one-off occurrence and RE looks into this with zeal and helps the poor user for the foreseeable future. Definitely going to leave sour taste with the current and potential owners alike -- and at the wrong time.

Cheers!
VJ

Last edited by VijayAnand1 : 15th May 2024 at 18:58.
VijayAnand1 is online now   (10) Thanks
Old 16th May 2024, 20:42   #7
BHPian

gkrishn's Avatar

Join Date: Aug 2004
Location: Bangalore
Posts: 650
Thanked: 149 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by CLASSICREBORN View Post
https://Youtube.com/watch?v=Y-IzxI9E...Zjoog9-YBZRSl7


Link to first HIMALAYAN 450 Chassis breakdown I found on YouTube. I think it is from Tinsukia Assam.

I don't know if it has already been posted in the forum.
Wow, the video has been taken down!
That was a fantastic job RE!!!
gkrishn is offline   (13) Thanks
Old 16th May 2024, 23:07   #8
Newbie

IamAsHter's Avatar

Join Date: May 2024
Location: Silchar
Posts: 24
Thanked: 180 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by gkrishn View Post
Wow, the video has been taken down!
That was a fantastic job RE!!!

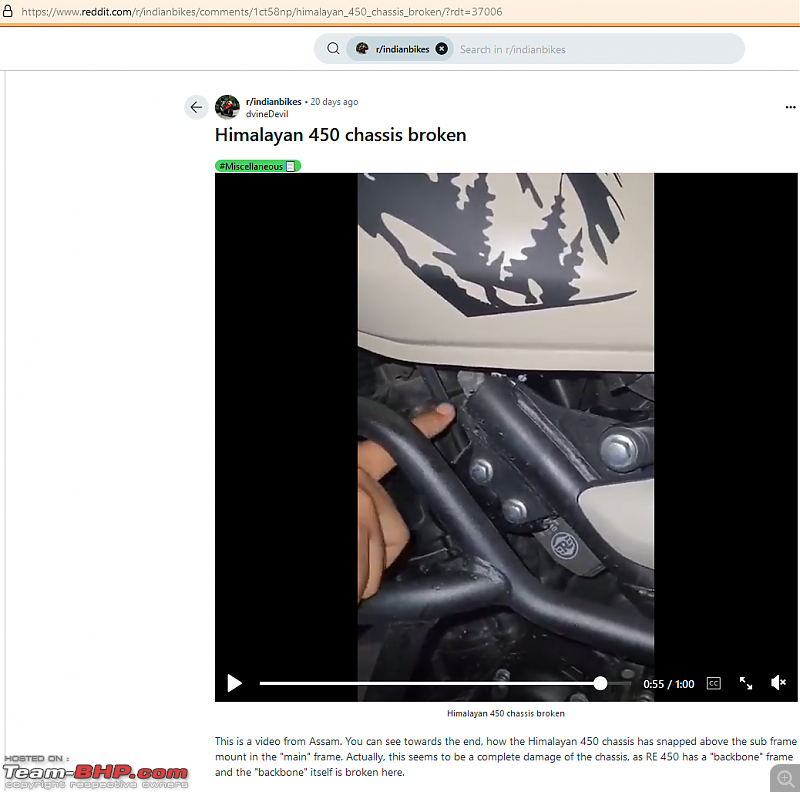

The video is still visible on Reddit.

Himalayan 450 Chassis Frame Breaking, multiple instances! After-market crash guards to blame?-20240605-screenshot-11.36am-34323.png


And here’s an alternative link to the video (which was taken down).


Last edited by Rehaan : 5th June 2024 at 12:10. Reason: Adding reddit screenshot + update
IamAsHter is offline   (13) Thanks
Old 4th June 2024, 19:23   #9
Senior - BHPian

VijayAnand1's Avatar

Join Date: Oct 2013
Location: Stickn' Around
Posts: 1,278
Thanked: 3,556 Times
Re: Royal Enfield Himalayan 450 Review

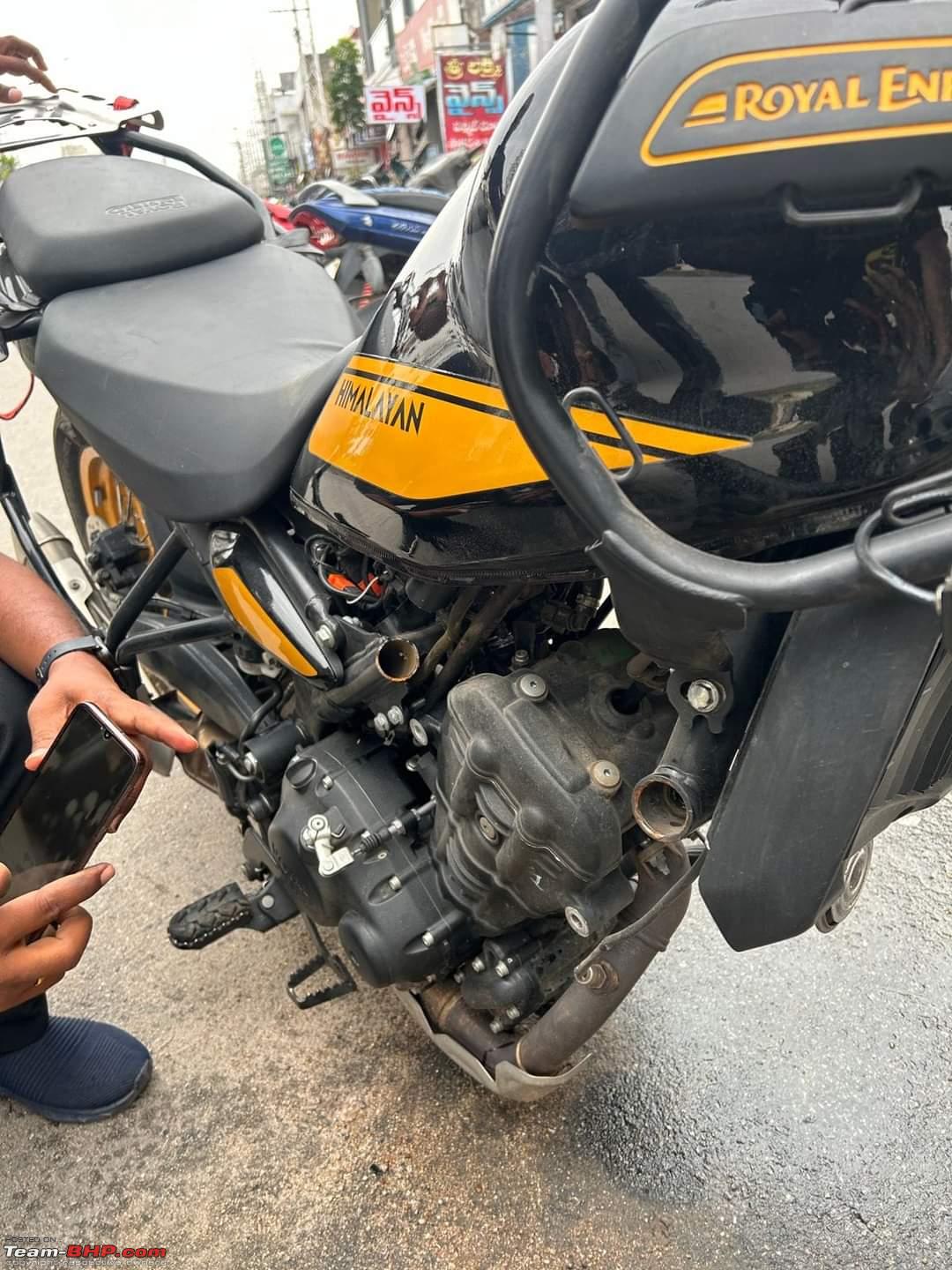

Chassis Breakage #2!!

Not sure about the preceding events, but sharing it as received.
Himalayan 450 Chassis Frame Breaking, multiple instances! After-market crash guards to blame?-fb_img_1717508962649.jpg

Himalayan 450 Chassis Frame Breaking, multiple instances! After-market crash guards to blame?-fb_img_1717508960245.jpg

Himalayan 450 Chassis Frame Breaking, multiple instances! After-market crash guards to blame?-fb_img_1717508958239.jpg

Cheers!
VJ
VijayAnand1 is online now   (31) Thanks
Old 4th June 2024, 20:22   #10
BHPian

b16h22's Avatar

Join Date: Feb 2015
Location: Thrissur
Posts: 902
Thanked: 2,706 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by VijayAnand1 View Post
Chassis Breakage #2!!

Not sure about the preceding events, but sharing it as received.
Attachment 2612640

Cheers!
VJ
Oh snap! it's breaking from the same stress point we discussed about in the previous case. Certainly not going to be a one-off case this. And on such a new and low miles frame too. Certainly a design oversight.

Last edited by b16h22 : 4th June 2024 at 20:25.
b16h22 is offline   (8) Thanks
Old 5th June 2024, 00:27   #11
Senior - BHPian

ebonho's Avatar

Join Date: Feb 2010
Location: Pune
Posts: 6,761
Thanked: 11,177 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by VijayAnand1 View Post
Chassis Breakage #2!!

Cheers!
VJ
Do we need to wait for #3 before it dawns on the factory that we have a serious problem teetering on the brink of a recall?

Ditto same spot shear as #1.

Cheers, Doc
ebonho is offline   (3) Thanks
Old 5th June 2024, 00:45   #12
BHPian

Join Date: Feb 2022
Location: Erode
Posts: 171
Thanked: 356 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by VijayAnand1 View Post
Chassis Breakage #2!!

Not sure about the preceding events, but sharing it as received.
Attachment 2612640

........
Cheers!
VJ
I am just taking a wild guess here, looking at the picture of the current failure and the earlier failure.

Have you noticed that both the bikes had a top plate attached? any chance it is because of overloading the rack portion? The bike with the earlier failure has a top box mounting nubs. Whereas the current failure you can see the steel top plate and a bungee loosely handing from it.

Not everyone follow the limits ( 5 kg?) as in no one really measures their luggage weight before loading the bike right?

Not blindly supporting RE here, but don't you think they would have been EXTRA EXTRA careful after the previous gen fiasco?

Regards,
Viknaraj
skviknaraj is offline   (3) Thanks
Old 5th June 2024, 00:50   #13
BHPian

b16h22's Avatar

Join Date: Feb 2015
Location: Thrissur
Posts: 902
Thanked: 2,706 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by VijayAnand1 View Post
Chassis Breakage #2!!

Not sure about the preceding events, but sharing it as received.
Attachment 2612640

Cheers!
VJ
With my amateur analysis, I feel this is exactly what is happening with the two frames that have broken at the same place. The forces from the front end and back end is putting the frame under stress near that breakage point and the weakest link gives up, which seem to be the non-reinforced steel tubes above the reinforced engine mounts + the engine as a stressed member. The long wheel base and weight of the bike is not helping I guess. Front engine mount seems to be acting as a pivot as well.

Himalayan 450 Chassis Frame Breaking, multiple instances! After-market crash guards to blame?-royalenfieldhimalayan450frame_forces.png

Quote:
Originally Posted by skviknaraj View Post
Not everyone follow the limits ( 5 kg?) as in no one really measures their luggage weight before loading the bike right?

Not blindly supporting RE here, but don't you think they would have been EXTRA EXTRA careful after the previous gen fiasco?

Regards,
Viknaraj
The top box weight limits are dependent on the strength and weight carrying ability of the rear rack and not the rear sub-frame. If an extra 5kg can break the frame in two pieces, how can we carry a pillion? Bikes have loading limits for pillion + rider and if you are riding solo and have a top box, you are still well within the weight limits of the rear sub-frame. Unless you have a really heavy pillion and rider onboard, the extra 10KGs is not going to make a difference. Secondly, the sub-frame should fail before the main frame. That's why most recent ADVs come with a sub-frame so the owner doesn't have to replace the whole frame in case of a mishap.

Last edited by b16h22 : 5th June 2024 at 01:01.
b16h22 is offline   (21) Thanks
Old 5th June 2024, 02:19   #14
BHPian

Join Date: Feb 2022
Location: Erode
Posts: 171
Thanked: 356 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by b16h22 View Post
Attachment 2612701

The top box weight limits are dependent on the strength and weight carrying ability of the rear rack and not the rear sub-frame. If an extra 5kg can break the frame in two pieces, how can we carry a pillion? Bikes have loading limits for pillion + rider and if you are riding solo and have a top box, you are still well within the weight limits of the rear sub-frame. Unless you have a really heavy pillion and rider onboard, the extra 10KGs is not going to make a difference. Secondly, the sub-frame should fail before the main frame. That's why most recent ADVs come with a sub-frame so the owner doesn't have to replace the whole frame in case of a mishap.
While I do agree with your statement about the overall weight would not have exceeded the allowable kerb weight and hence top box overloading should not be a problem.

Himalayan 450 Chassis Frame Breaking, multiple instances! After-market crash guards to blame?-moment-resolution.png

Please see the above sketch with my scribble in blue. The load on the edge will have the most lever arm and hence a higher moment. This moment will resolve as a push and pull forces where the sub frame connects. Steel being able to take more tension, the sub frame escapes. The same becomes shear for the main frame. The bottom portion of the main frame is thicker as the pivot connection and other frame components converge here.

Looking at where the subframe top connects, you have a comparatively thinner tube. And looking at the failure pictures, there seems to be shear failure of the material at that portion and no yielding.

So yes you are correct at the failure point the stresses are high. This can also happen if the material is not treated properly after welding, the welding stresses it self would have the made the material weak there ( Strain hardening). Usually, after welding, the materials should be heat treated to relieve welding stress. If this was required as per design and RE has not done it during production, it is a serious lapse in QC.

Lets see what RE has to say regarding this.
Regards,
Viknaraj
skviknaraj is offline   (3) Thanks
Old 5th June 2024, 02:45   #15
BHPian

b16h22's Avatar

Join Date: Feb 2015
Location: Thrissur
Posts: 902
Thanked: 2,706 Times
Re: Royal Enfield Himalayan 450 Review

Quote:
Originally Posted by skviknaraj View Post
So yes you are correct at the failure point the stresses are high. This can also happen if the material is not treated properly after welding, the welding stresses it self would have the made the material weak there ( Strain hardening). Usually, after welding, the materials should be heat treated to relieve welding stress. If this was required as per design and RE has not done it during production, it is a serious lapse in QC.

Lets see what RE has to say regarding this.
Regards,
Viknaraj
I completely agree that there will be cantilever stresses on the sub-frame mount points but any competent frame designer is going to design the top rack or it's mount points to fail first in case of an overloading scenario. And followed by the failure of the sub-frame or it's mount points. The main frame should be the last of the failure points.

What got me thinking is the fact that the front engine mount bolts have been sheered off and that indicates some kind of strong upward force on the front end. If this happened purely due to the overloading of the subframe, that wouldn't be there.

I hope it's a material issue/heat treatment or a bad batch of frames from RE. If it's a design oversight, they'll need to recall all of the initial batch vehicles to replace the frame with a redesigned and stronger unit.

There are plenty of ADVs in this world with very well designed frames and subframes to take pillion and luggage without any failure. I sincerely hope this doesn't turn into another frame-failure saga for RE as these bikes are very new unlike the old Himmys which had fatigue failures in the headstock section with lots of miles on the clock.

Last edited by b16h22 : 5th June 2024 at 02:50.
b16h22 is offline   (3) Thanks
