Quote:
Originally Posted by moralfibre I forwarded this pic to a friend of mine and he confirmed that this is not an Abarth however he wanted to know if you can get the VIN. |
Quote:

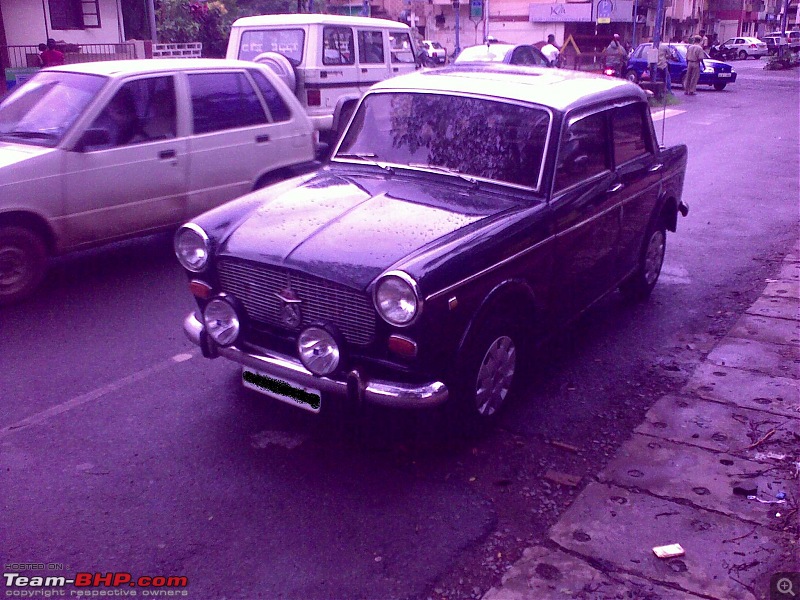

Originally Posted by JayD This is a !967 Fiat 1100r 'Abarth' which was recently purchased by my friend. I searched a lot but couldn't find a 1100R abarth anywhere. This one has a twin cam twin carb setup. Experts, can u shed some light on this?? |
This is a FIAT 1100R introduced in 1966, and produced up to 1969. this car was introduced the same time as the FIAT 124, and while the FIAT 1100D was phasing out. It looks in between the FIAT 1100R and FIAT 124.
These are some of the technical features of the car:
1) engine is 1089cc, 55 BHP at 5300 rpm, compression ratio, 8:1
2) front grill larger than FIAT 1100D, different lower beams
3) interior speedo cluster similar to FIAT 850 and 124 series
4) modified gear shift to floor shift
5) front disc brakes fitted as the FIAT 850 special
6) all 13 inch wheels
7) rear leaf springs different to suit lower ride height
8) differential ratio = 43/10 in the sedan like the other FIAT 1100 models
Differential ratio for station wagon = 40/9, limiting top speed but increasing carrying capacity torque
9) rear wheel cylinders are ¾ inch in diameter
10) longer and square rear boot similar to FIAT 124
11) petrol tank as the FIAT 124 fitted inside boot RHS
12) filler cap on RHS of car
13) rear tails lights as the FIAT 850
14) front bonnet opens from windscreen side like the FIAT 124
15) divided 2 piece propshaft with hanger bearing like the FIAT 1100TV and 1200 models
16) engine has 1 FULL FLOW OIL filter (better) mounted externally, spin-on type. The reilief valve is fitted on the pump. Note there is no external main filter (gauze) like the other FIAT 1100 models. All other FIAT 1100 models have 2 oil filters, 1 main oil filter and the other a BY-PASS oil filter (either cartridge or spin-on)
There has never been a FIAT 1100R Abarth, I think someone has modified the front of this particular car by fitting 2 extra lights and the Abarth badge.
The only FIAT 1100 Abarth produced was the 207 series.
I hope this information helps
Happy Motoring
From Luigino Gori
