Old 23rd November 2017, 22:10   #511
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: JH01/JH05
Posts: 1,958
Thanked: 10,887 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by BoneCollector View Post
It's pre-facelift 2010 model, VXi.
Part No: 84740M83K01
Name: GLASS OUT RR VIEW LH
Price: Rs. 215

Regards,
Shashi
Leoshashi is offline   (7) Thanks Reply With Quote
Old 27th November 2017, 14:01   #512
Senior - BHPian

sagarpadaki's Avatar

Join Date: May 2010
Location: Bengaluru
Posts: 2,632
Thanked: 1,256 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Attachment 1663716

Bought it a few weeks ago.

Regards,
Shashi
Is there is different part number for TR413 valves that are used in Wagon-R, A-Star and smaller cars? They use TR413 which is shorter than TR414
sagarpadaki is offline   Reply With Quote
Old 27th November 2017, 17:19   #513
BHPian

Imran.Syed's Avatar

Join Date: Sep 2012
Location: Mumbai
Posts: 27
Thanked: 7 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hello all
My ac blower motor has went kaput, any help finding a replacement?
Was involved in an accident with the car recently and mechanic suggested a replacement of "drive shaft bearing", lower arms.
Any help with part number and location of the items will help me a lot
My baleno is getting a semi restoration and I'm keen on doing it albeit a little slowly.
I am located in hyderabad
Imran.Syed is offline   Reply With Quote
Old 27th November 2017, 17:23   #514
BHPian

Abhi_abarth's Avatar

Join Date: May 2012
Location: Hyderabad
Posts: 329
Thanked: 111 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Shashi,

Is it possible to share the rear bumper cost of the Baleno RS ? Mine being the ray blue color (1.2 p) want to check on the pricing before going ahead.

Thanks in advance.

Regards,
Abhinav
Abhi_abarth is online now   Reply With Quote
Old 27th November 2017, 20:58   #515
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: JH01/JH05
Posts: 1,958
Thanked: 10,887 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by sagarpadaki View Post
Is there is different part number for TR413 valves that are used in Wagon-R, A-Star and smaller cars? They use TR413 which is shorter than TR414
Part No: 43130M66L00
Name: VALVE (TR413)
Price: Rs. 28


Quote:
Originally Posted by Imran.Syed View Post
Hello all
My ac blower motor has went kaput, any help finding a replacement?
Was involved in an accident with the car recently and mechanic suggested a replacement of "drive shaft bearing", lower arms.
Any help with part number and location of the items will help me a lot
My baleno is getting a semi restoration and I'm keen on doing it albeit a little slowly.
Part No: 74250-60G00
Name: MOTOR COMP
Price: Rs. 11546

Regarding driveshaft bearing, I guess this is what your mechanic needs:

Part No: 09267-40001
Name: BEARING 40X72X36
Price: Rs. 3555

Lower Arms:

Part No: 45201-63G01
Name: ARM ASSY FRONT SPNSN R
Price: Rs. 9312

Part No: 45202-63G01
Name: ARM ASSY FRONT SPNSN L
Price: Rs. 9312


Quote:
Originally Posted by Abhi_abarth View Post
Hi Shashi,

Is it possible to share the rear bumper cost of the Baleno RS ? Mine being the ray blue color (1.2 p) want to check on the pricing before going ahead.
Sorry, I am unable to see part details of newer models(for supported model list, kindly refer post 1)

Regards,
Shashi
Leoshashi is offline   (10) Thanks Reply With Quote
Old 29th November 2017, 08:18   #516
BHPian

Ramon's Avatar

Join Date: Aug 2007
Location: Trivandrum
Posts: 209
Thanked: 321 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

The backrest of the AStars drivers seat is at an awkward angle now.

The right side of the seat has a bigger reclining angle compared to the left side.

I presume the recliner mechanism has gone bad.

Can I get the part number and price of the same?
Ramon is online now   Reply With Quote
Old 29th November 2017, 14:28   #517
BHPian

Styler's Avatar

Join Date: Mar 2008
Location: New Delhi
Posts: 391
Thanked: 210 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Dear Shashi Ji

I hope you remember my White Grand Vitara 2007 Manual. With a lot of help from you the Vitara was completely restored. It has running perfectly for the last 5 months.

Now I went to the MASS (Motorcraft, Sahibabad) for the first time for a service and complete inspection. Thankfully, the Engine, Gear Box, Differential, the 4WD system, and AC are all in perfect shape.

After a thorough inspection the following things are recommended for replacement as they are worn out or for preventive maintenance. The Grand Vitara has done around 1 lac kms so I do not mind spending some money now. I hope to keep it for another 5 years.

Here is a list of parts along with the cost given to me.

1. Rear Shockers replacement (One has leaked) I think cost is around 7500 for a pair of Original Suzuki.

2. Both Engine Mountings Rs 4340 X 2

3. Front left Lower Arm (Chimta) Rs 9481
Is a Bush Kit available for the overhaul of the Lower Arm ?

4. Brake Calliper Kit -Seal Set Piston Brakes (Rubber on one of the Callipers is worn out) Rs 430

5. Main Belt Rs 2681,
Tensioner Assembly Rs 4295
Idle Pulley Rs 1322

6. Oil Seals X 3 . The costs of these are 435, 215 and 253

a) Front Differential,
b) 4X4 Rear Shaft,
c) Differential (I am not sure)

Could you post the picture of the differential and 4 X 4 Shaft with all Oil seals.


Can you kindly help me with part numbers and prices of these parts.

Thanks a lot
Styler

Last edited by Styler : 29th November 2017 at 14:30.
Styler is offline   Reply With Quote
Old 29th November 2017, 15:19   #518
BHPian

knightrider_7's Avatar

Join Date: Jun 2017
Location: Kozhikode/KL-11
Posts: 102
Thanked: 133 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Model name: WagonR
Variant: Vxi (2014)
Part required: RHS tail lamp cover. ( All lamps are working, need to replace the broken outer cover)
Thanks in advance!
knightrider_7 is online now   Reply With Quote
Old 2nd December 2017, 09:04   #519
BHPian

prateekswarup's Avatar

Join Date: Jul 2008
Location: Delhi NCR
Posts: 233
Thanked: 109 Times
Default

Dear Shashi,

Needed to know the cost of the front rotor brake hub for the grand vitara 2.0 MT 2007.

There is a slight screeching noise when I brake hard and I guess the rotor brake hub has gathered some rust / damage.

Kindly let me know the cost of both left and right front wheel rotor hubs.

Many thanks!
prateekswarup is offline   Reply With Quote
Old 4th December 2017, 20:00   #520
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: JH01/JH05
Posts: 1,958
Thanked: 10,887 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Ramon View Post
I presume the recliner mechanism has gone bad.

Can I get the part number and price of the same?
Kindly get the seat inspected at a workshop. Sometimes your seat frame can be the culprit too. They have teeth too.

Quote:
Originally Posted by Styler View Post
Could you post the picture of the differential and 4 X 4 Shaft with all Oil seals.
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-1.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-2.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-3.jpg

Quote:
Originally Posted by knightrider_7 View Post
Model name: WagonR
Variant: Vxi (2014)
Part required: RHS tail lamp cover. ( All lamps are working, need to replace the broken outer cover)
Thanks in advance!
Whole assembly is available in MGP, not the outer glass alone.

Part No: 35650M67L00
Name: Lamp Unit, RR COMBINATION RH
Price: Rs. 995

Quote:
Originally Posted by prateekswarup View Post
Kindly let me know the cost of both left and right front wheel rotor hubs.

Many thanks!
Hope you mean the discs??

Part No: 55211-65J01
Name: Disc, Front brake
Price: Rs. 5879

Regards,
Shashi
Leoshashi is offline   (8) Thanks Reply With Quote
Old 8th December 2017, 23:18   #521
BHPian

AShubrah's Avatar

Join Date: Nov 2017
Location: DEL/IXW
Posts: 59
Thanked: 62 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hello, Shashi Bhaiya.
Would be great if you could help me out with the following parts & their part numbers.

Model - Vitara Brezza
Variant - ZDI
Part - Centre armrest of ZDI+ model

Also, will the part be a direct fit in the ZDI model or will some panels need to be changed as well?
Thanks in advance.

Last edited by AShubrah : 8th December 2017 at 23:36.
AShubrah is online now   Reply With Quote
Old 8th December 2017, 23:37   #522
BHPian

wooka's Avatar

Join Date: Feb 2014
Location: Chandigarh
Posts: 49
Thanked: 3 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Sashi,

Same request - arm rest for a Swift 2010 K series, please ZXI trim.
I'd also like to ask if chrome AC vents are available?

Something in my steering rack is amiss (there is some play and mild noise).
Without inspection, the team said 15k for repair - parts extra.
Just, wow. What would you advise?
wooka is online now   Reply With Quote
Old 9th December 2017, 12:42   #523
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: JH01/JH05
Posts: 1,958
Thanked: 10,887 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Model - Vitara Brezza
Variant - ZDI
Part - Centre armrest of ZDI+ model
Please give me a couple of days. Since this is a mod request, I need to study the basic design differences between ZDi and ZDi+ centre console.

Quote:
Originally Posted by wooka View Post
Hi Sashi,

Same request - arm rest for a Swift 2010 K series, please ZXI trim.
I'd also like to ask if chrome AC vents are available?
I don't think the Swift ever got arm rests in any of its versions. There is an official accessory for Gen2 Swift, but I am not sure if it will be compatible with your model.

Quote:
Something in my steering rack is amiss (there is some play and mild noise).
Without inspection, the team said 15k for repair - parts extra.
Just, wow. What would you advise?
Stay away. Even if you replace the whole rack and assembly, labour wont be more than 2-3k in any case. Get it checked by some ethical FNG/MASS. Stay away from Dealer owned workshops(your labour estimate sounds like one).
Leoshashi is offline   (5) Thanks Reply With Quote
Old 9th December 2017, 13:17   #524
BHPian

AShubrah's Avatar

Join Date: Nov 2017
Location: DEL/IXW
Posts: 59
Thanked: 62 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Please give me a couple of days. Since this is a mod request, I need to study the basic design differences between ZDi and ZDi+ centre console
Sure, sir.

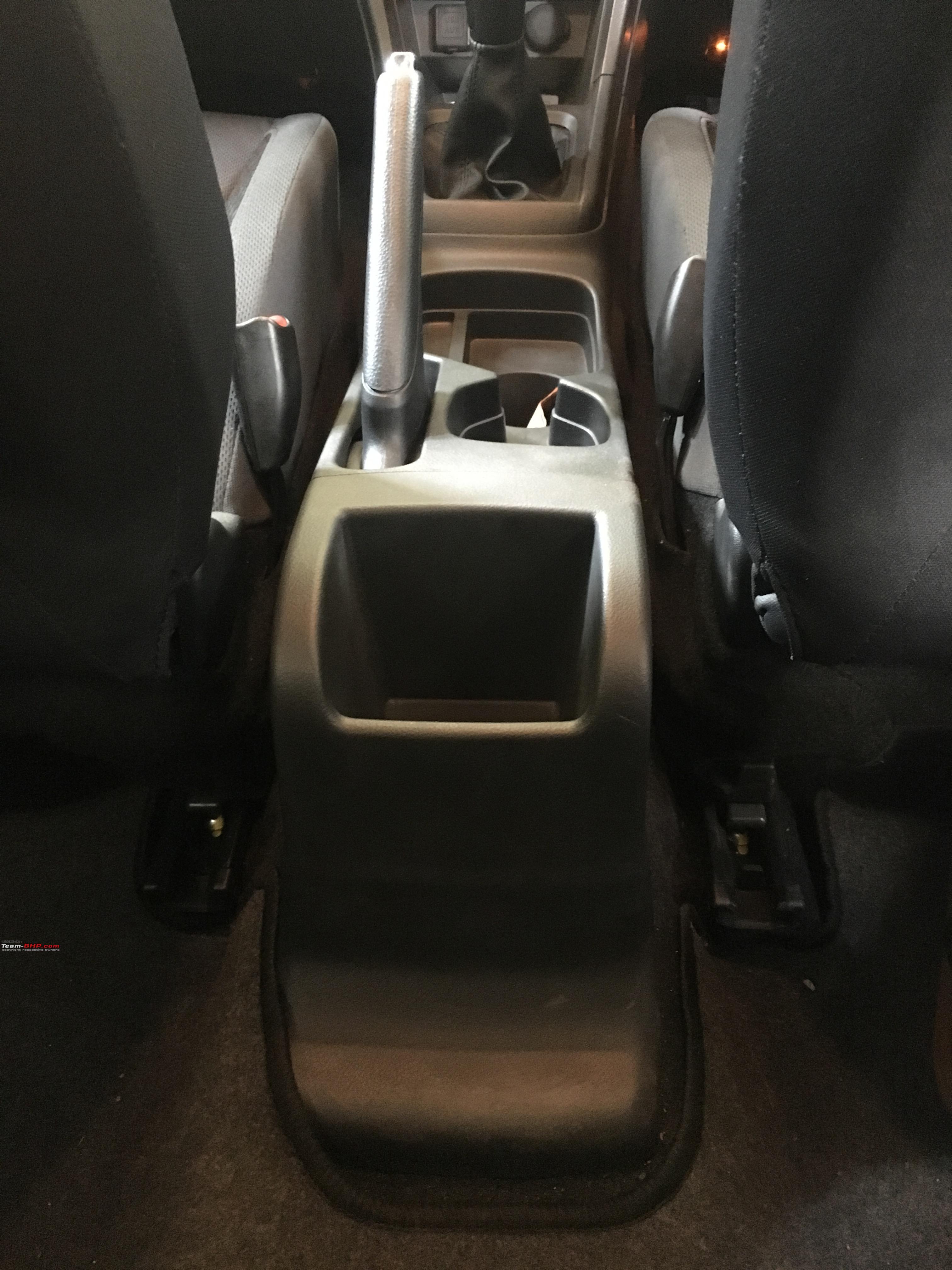

Here are some pictures of the ZDI model to help you understand better.
Attached Thumbnails
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-f250275e7ce541f586060d02b2a40e99.jpeg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-2b01288629864c8e98c464ea1f279849.jpeg

AShubrah is online now   (1) Thanks Reply With Quote
Old 9th December 2017, 19:43   #525
Senior - BHPian

wanderernomad's Avatar

Join Date: Jul 2007
Location: Chandigarh
Posts: 2,390
Thanked: 785 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Shashi, part numbers for Garnish Trim for all 4 doors. Grand Viatara, 2007, 2.0 AT. Thanks.
wanderernomad is offline   Reply With Quote
