Old 27th May 2021, 01:09   #1441
BHPian

PSM_360's Avatar

Join Date: Jul 2015
Location: Ludhiana/Pune
Posts: 44
Thanked: 54 Times
Default

Thank you pdpyen and Leoshashi for the replies.
Today, I explored 1/3rd the local market in Ludhiana to find the clutch parts quickly but did not get them, will try at some more shops tomorrow. Meanwhile, I have ordered parts online, just to save some days on shipping if I don't get the parts locally.

@pdpyen, Yes, I checked your mentioned parts and in fact they are as per the OEM catalogue on Boodmo, i.e.,
Pressure plate: 22100M80011
Clutch plate: 22400M63B22
Release bearing: 23265-65G00 (NTN), 09269-28006 (Exedy)

@Leoshahi, your suggested parts are also matching.
Quote:
Originally Posted by Leoshashi View Post
Pressure Plate: 22100M80031
Clutch Plate: 22400M63B20
Release Bearing: 23265-65G00
Currently, I have ordered the following parts online:
Pressure Plate: 22100M80031 (22100M80011 was twice expensive online )

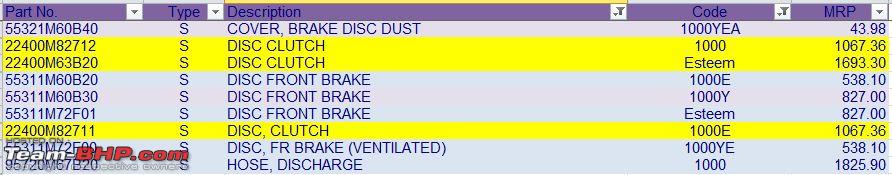

Clutch plate: 22400M82712 (part number taken up from MGPlist excel file I found somewhere on Team-BHP. I hope it is the correct part)
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-clutchpart.jpg
Another reason for not going with 22400M63B20/22400M63B22 for Clutch plate is that this part no. is also assigned to Esteem which does not fit on a Maruti 1000 for the following.
During this parts hunt, I realized that Maruti 1000 and Esteem clutch plate size is different (180mm & 190mm respectively). So is the Pressure plate and its mounting holes' PCD on flywheel. Visually, both appear very identical and for once I was happy that I can get an Esteem clutch set which is readily available in the market, but it is invalid.

Clutch release bearing seems to be common for both Maruti 1000 and Esteem. One shop had NSK FCR504612E which is another substitute for OEM one. I might grab that or may also try to refurbish the slightly noisy existing one. Otherwise, the above mentioned OEM bearings are quite expensive around Rs 2000.

FYIP, Esteem clutch set, both in OEM and aftermarket comes in two types.
CeeKay 22100M64B11+22400M63B22 (6 spring clutch plate) and Valeo 22011M64B20 (4+4 spring clutch plate).

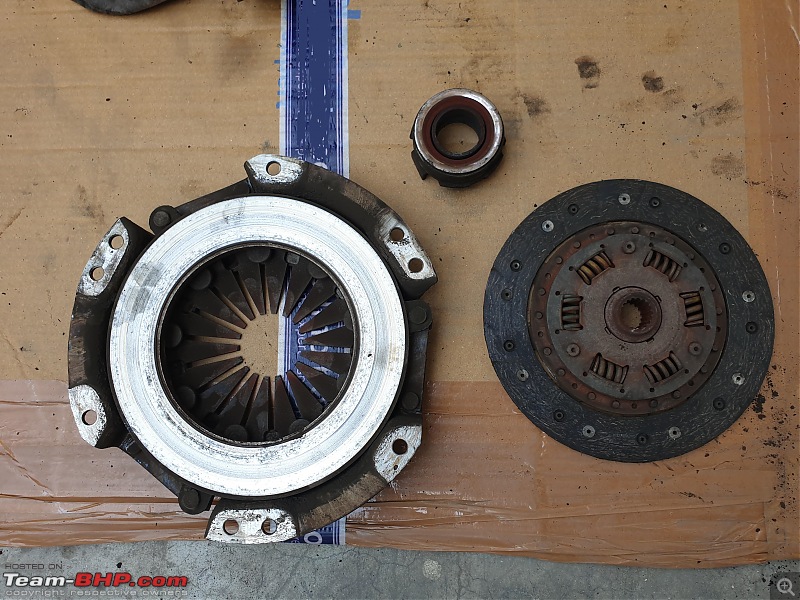

On closer inspection of worn-out parts that came out of the car (Maruti 1000), with my best guess, can call out the following part numbers for them.
Release bearing: 09269-28006
Pressure and clutch plates: OEM Ceekay made (no hint of exact part no.).
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-20210522_142250.jpg
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-20210522_142152.jpg
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-20210522_142231.jpg
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-20210522_142218.jpg


Quote:
Originally Posted by Leoshashi View Post
No idea buddy, will have to check wiring diagram for this.

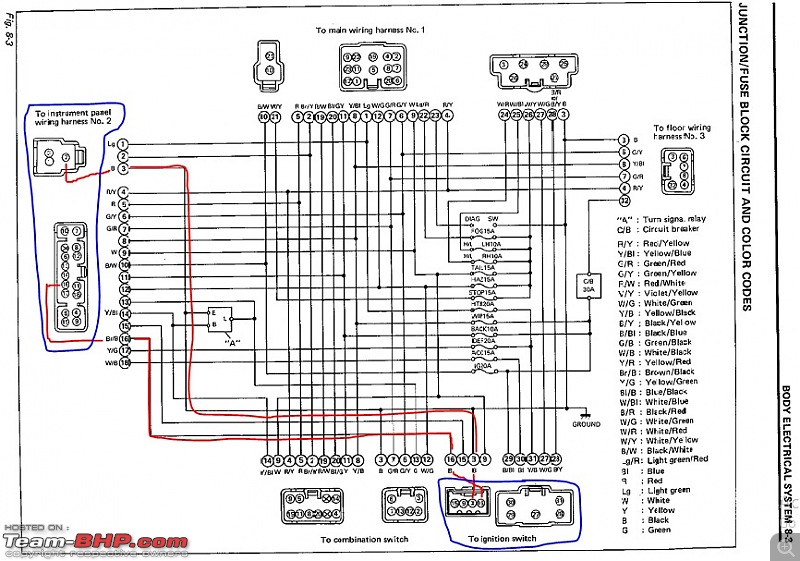

I found a matching wiring diagram from a Suzuki SF413 service manual.
Looks like this 2-wire small socket in the ignition switch lock cylinder sends some signal to the instrument panel. The circuit works only when we crank, not on LOCK/ACC/ON but only on START. Not sure what signal and if it actually is connected to the instrument panel.

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-whatsapp-image-20210521-11.35.38-pm.jpeg

Name:  WhatsApp Image 20210521 at 11.41.05 PM.jpeg
Views: 578
Size:  63.1 KB

Thanks,
PSM_360

Last edited by vb-san : 27th May 2021 at 07:24. Reason: Back-to-back posts merged. Thank you!
PSM_360 is offline   (2) Thanks
Old 29th May 2021, 12:41   #1442
Senior - BHPian

supremeBaleno's Avatar

Join Date: Dec 2005
Location: Chennai / Kochi
Posts: 5,433
Thanked: 2,343 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Shashi, could you please give the part# and price of the starter motor for the Baleno1.6 sedan ? Thanks !!!
supremeBaleno is offline
Old 29th May 2021, 13:12   #1443
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,205
Thanked: 37,320 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by supremeBaleno View Post
Shashi, could you please give the part# and price of the starter motor for the Baleno1.6 sedan ? Thanks !!!
Part Number: 31100M79F00
Name: MOTOR ASSY, STARTING
MRP: Rs.3,590


It's shared with Old Alto/WagonR etc so should be easily available. You also get rebuild kits which have brushes, etc in aftermarket and MGP.

Regards,
Shashi
Leoshashi is offline   (4) Thanks
Old 29th May 2021, 14:14   #1444
BHPian

benzinblut's Avatar

Join Date: Apr 2010
Location: New Bombay
Posts: 501
Thanked: 838 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Im looking for ECU for S-Cross 1.6 Diesel 2015.

MGP should be 33920M65MA0.

What should be the current price for 33920M65MA0 ?

Also, what is the difference between 33920M65MA0 and 33920M65MA1 ?

Thanks in advance
benzinblut is offline
Old 31st May 2021, 11:34   #1445
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,205
Thanked: 37,320 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by benzinblut View Post
Im looking for ECU for S-Cross 1.6 Diesel 2015.

MGP should be 33920M65MA0.

What should be the current price for 33920M65MA0 ?

Also, what is the difference between 33920M65MA0 and 33920M65MA1 ?

Thanks in advance
33920M65MA1 is the part you need, Latest Price is Rs. 30,455

33920M65MA0 and 33920M65MA1 are same, just revised iterations of same part. Revision may happen due to vendor and/or features update among many other things.

Regards,
Shashi
Leoshashi is offline   (2) Thanks
Old 31st May 2021, 12:16   #1446
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,205
Thanked: 37,320 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by benzinblut View Post
Im looking for ECU for S-Cross 1.6 Diesel 2015.

MGP should be 33920M65MA0.

What should be the current price for 33920M65MA0 ?

Also, what is the difference between 33920M65MA0 and 33920M65MA1 ?

Thanks in advance
I heard you are getting misled by dealer chaps and some other experts , here is a screenshot for your reference.

Name:  dms.jpg
Views: 460
Size:  50.9 KB
Leoshashi is offline   (3) Thanks
Old 31st May 2021, 19:31   #1447
BHPian

benzinblut's Avatar

Join Date: Apr 2010
Location: New Bombay
Posts: 501
Thanked: 838 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
I heard you are getting misled by dealer chaps and some other experts , here is a screenshot for your reference.

Attachment 2162164
Thanks for replying.

After a lot of communication, this is what the service center has to say at the end of the day.

- 33920M65MA0 is the current part no.

- 33920M65MA0 had a price of Rs. 30,455 until Aug-20. After that it is priced at 53,900.

- The batch code until the price increase was AA. The new batch code is AB with the new price.

- 33920M65MA1 is showing in the DMS at 30,455 but when ordered, it will order 33920M65MA0 at new prices.


Can you confirm if this is possible?

Is it possible that the dealer has ordered the costlier part (33920M65MA0) instead of the cheaper 33920M65MA1 and is trying to sell it to me?


Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-ecm.jpg
benzinblut is offline   (1) Thanks
Old 31st May 2021, 19:50   #1448
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,205
Thanked: 37,320 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by benzinblut View Post
- 33920M65MA1 is showing in the DMS at 30,455 but when ordered, it will order 33920M65MA0 at new prices.

Can you confirm if this is possible?

Is it possible that the dealer has ordered the costlier part (33920M65MA0) instead of the cheaper 33920M65MA1 and is trying to sell it to me?
Every info is correct except the part that "65MA0 will come when 65MA1 is ordered". They have stock of expensive ECM so they are trying to get rid of it and make such excuses. If 65MA1 is ordered, there is no way they'll know what's coming unless it's billed to the dealer.

Try some other dealer or try to find live stock location of 65MA1 in and around your location. Your MGP store can help you with the live location of that part. That will be far easier than convincing your dealer to place a fresh order for 65MA1 specially when he is carrying a stock of much more expensive ECM.

There have been cases earlier when essentially the same part carried different prices. For example ORVM LED of Last gen Ertiga/Swift etc. One was priced around Rs. 800 while there was another similar part with slightly different part number which was much more expensive. The expensive part never sold and dealers who had them resorted to such tricks to get rid of them.

Regards,
Shashi
Leoshashi is offline   (3) Thanks
Old 7th June 2021, 08:44   #1449
BHPian

Vikram Arya's Avatar

Join Date: Jan 2016
Location: Calgary/Shimla
Posts: 370
Thanked: 1,684 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hello Shashi,

Hope you & your family are doing well and staying safe.

Please provide the part numbers of all the grommets & gaskets around the engine bay, firewall, doors, rear hatch & rear windows of the Gypsy.

Thank you.
Vikram Arya is offline   (1) Thanks
Old 8th June 2021, 02:02   #1450
Senior - BHPian

straight6's Avatar

Join Date: Oct 2007
Location: Bombay
Posts: 2,512
Thanked: 247 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi Shashi,

Im looking for the part number for the black plastic surrounding the fog lamps for the current dzire. I have a vxi which doesn't have the cut outs for the fogs and I'm looking for the one's from zxi or + model.

Also, the oem fog lamp switch from those models.

Thanks.

Last edited by straight6 : 8th June 2021 at 02:12.
straight6 is offline
Old 8th June 2021, 06:04   #1451
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,205
Thanked: 37,320 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by straight6 View Post
Hi Shashi,

Im looking for the part number for the black plastic surrounding the fog lamps for the current dzire. I have a vxi which doesn't have the cut outs for the fogs and I'm looking for the one's from zxi or + model.

Also, the oem fog lamp switch from those models.

Thanks.
Why not get the Fog lamp kit from MGA? You get the fogs, harness with fuses inbuilt, switch, bezels and more.

For current gen, first iteration(pre facelift): 990J0M56R11-010
Rs. 3490

For current gen, current facelift: 990J0M56R11-050
Rs. 4490

Regards,
Shashi

Last edited by Leoshashi : 8th June 2021 at 06:05.
Leoshashi is offline   (1) Thanks
Old 8th June 2021, 14:40   #1452
Senior - BHPian

straight6's Avatar

Join Date: Oct 2007
Location: Bombay
Posts: 2,512
Thanked: 247 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Why not get the Fog lamp kit from MGA? You get the fogs, harness with fuses inbuilt, switch, bezels and more.

For current gen, first iteration(pre facelift): 990J0M56R11-010
Rs. 3490

For current gen, current facelift: 990J0M56R11-050
Rs. 4490

Regards,
Shashi
Because im going with aftermarket iphcar projector fogs with 4300k 55w hids.
straight6 is offline
Old 8th June 2021, 14:50   #1453
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,205
Thanked: 37,320 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by straight6 View Post
Because im going with aftermarket iphcar projector fogs with 4300k 55w hids.
Great. Dzire gets fog lamp switch on the right stalk itself. So I'm providing you with part number of Ciaz's separate switch.

Part Number: 37270M79M00
Price: Rs. 230

Bezels:

RH: 71751M54T10-5PK
Price: Rs. 175
LH: 71761M54T10-5PK
Price: Rs. 175

Last edited by Leoshashi : 8th June 2021 at 14:55.
Leoshashi is offline   (1) Thanks
Old 8th June 2021, 16:38   #1454
Senior - BHPian

straight6's Avatar

Join Date: Oct 2007
Location: Bombay
Posts: 2,512
Thanked: 247 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
Great. Dzire gets fog lamp switch on the right stalk itself. So I'm providing you with part number of Ciaz's separate switch.

Part Number: 37270M79M00
Price: Rs. 230

Bezels:

RH: 71751M54T10-5PK
Price: Rs. 175
LH: 71761M54T10-5PK
Price: Rs. 175
The vxi doesn't get the switch on the stalk so I will need the one that fits on the dashboard near headlight leveler knob. Thanks.
straight6 is offline   (1) Thanks
Old 9th June 2021, 17:52   #1455
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,205
Thanked: 37,320 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by straight6 View Post
The vxi doesn't get the switch on the stalk so I will need the one that fits on the dashboard near headlight leveler knob. Thanks.
Yes that's the part number I have given.

Quote:
Originally Posted by Vikram Arya View Post
Hello Shashi,

Hope you & your family are doing well and staying safe.

Please provide the part numbers of all the grommets & gaskets around the engine bay, firewall, doors, rear hatch & rear windows of the Gypsy.

Thank you.
Hello Sir, nice to hear from you after a long time.

I didn't quite get your query. I believe you are interested in all rubber components in and around the engine bay and doors.

This link should help you out IMO: https://oriparts.com/7/86/1547/477651

Regards,
Shashi
Leoshashi is offline   (2) Thanks
