Old 30th November 2020, 00:14   #1321
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,205
Thanked: 37,317 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Manoj2268 View Post
Hello Shashi,

My cousin banged his WagonR 2005 Vxi model into a tree and he needs to replace the fender, bonnet and the part where the headlamp is bolted to the chassis. Owing to his third party policy only, he has to pay out of pocket for the repairs.

He ordered this part 58111m67k00 on the recommendation of a local denter guy instead of ordering 58111m79f00. Are these parts the same or completely different.

I want to make sure he does not get fleeced.

Please help.
No both of them aren't same. 67K00 will be of newer wagonR, facelift most likely. Better visit any MGP store, ask for the manual and order correct parts as per your need once the front end is dismantled.

Regards,
Shashi

Last edited by Leoshashi : 30th November 2020 at 00:15.
Leoshashi is offline   (2) Thanks
Old 30th November 2020, 09:07   #1322
BHPian

Kpzonwheels's Avatar

Join Date: Aug 2020
Location: Kannur
Posts: 103
Thanked: 129 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hi
I am looking for oil filter wrench to disassemble oil filters in Maruti petrol cars
Kpzonwheels is online now
Old 30th November 2020, 14:43   #1323
Distinguished - BHPian

paragsachania's Avatar

Join Date: Nov 2007
Location: Belur/Bangalore
Posts: 6,912
Thanked: 23,947 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Kpzonwheels View Post
Hi
I am looking for oil filter wrench to disassemble oil filters in Maruti petrol cars
I am not sure if you will be able to procure this via MGP.

However, you should easily get them by specifying the vehicle make at a popular store nearby you who deal with special tools.

Few months before, I got one for my Diesel Ertiga:

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-img_20200912_153056.jpg
Something like this should work for you.

https://www.amazon.in/dp/B01N2W5Y1I/...ing=UTF8&psc=1

Last edited by paragsachania : 30th November 2020 at 14:45.
paragsachania is offline   (2) Thanks
Old 30th November 2020, 15:26   #1324
BHPian

Shreyfiesta's Avatar

Join Date: Apr 2020
Location: Kochi
Posts: 134
Thanked: 1,169 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Model Name - MARUTI 800 F8D
Variant - DX 5 SPEED
Part Required - Drive Shaft (Front LH)

Part Number : 44102M843A0

Maruti ASS guys are saying that this particular part is not in production nowadays, so how can I get one for my car?

My other queries are :
• Is it possible to get this from old stocks via MGP stores?
• If yes, how much will it cost?
• Are the drive shafts of regular F8B and 5 Speed F8D different?
• Is there any other brand which manufactures drive shafts for M800 F8D?

Attaching a picture from parts catalog for reference :
Attached Thumbnails
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-img20201130wa0002__02.jpg


Last edited by Shreyfiesta : 30th November 2020 at 15:36.
Shreyfiesta is offline   (1) Thanks
Old 1st December 2020, 10:41   #1325
BHPian

abhi9044's Avatar

Join Date: Feb 2020
Location: Lucknow
Posts: 103
Thanked: 628 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Leoshashi View Post
No
That's PARTS MANUAL. You are looking for SERVICE MANUAL.

Correct part number would be: 99500M67L01-74E. Try ordering at MGP store. It's not listed on Boodmo.

Regards,
Shashi
Just an update, I tried ordering the Service Manual from my nearest MGP store, they checked and told me that it is out of production now. So I guess, I will have to rely on someone who already has a Service Manual.

Also, seems like the Vaccum Cleaner+Tyre Inflator from Maruti has become very popular. Almost all the dealerships near to me are running out of stock.
And when I tried ordering it from a MGP Store, they said that such a part number doesn't exist ( Part No:-990J0M99923-060 The Analog one).
They told me, the digital one was listed in their ERP but not the analog one.

Abhishek.
abhi9044 is online now   (1) Thanks
Old 2nd December 2020, 11:53   #1326
Distinguished - BHPian

Leoshashi's Avatar

Join Date: Jul 2014
Location: India
Posts: 5,205
Thanked: 37,317 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by Kpzonwheels View Post
Hi
I am looking for oil filter wrench to disassemble oil filters in Maruti petrol cars

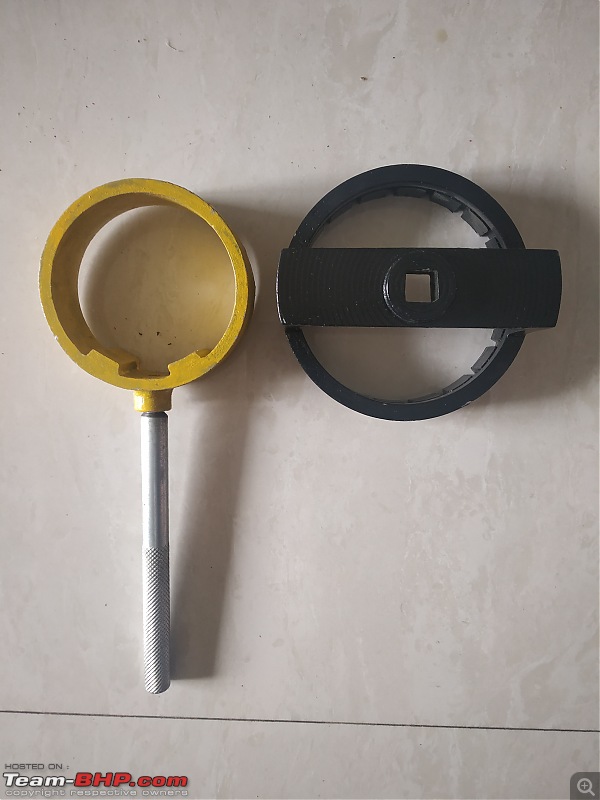

My recommendation, get something from your local tools store. However, if you still are interested in MGP Tools, part numbers are:

09915M47310 OR 09915M47341

I have used the first one and its not very effective. Grip is very weak. So if you buy it, do check it once.

Quote:
Originally Posted by Shreyfiesta View Post
Model Name - MARUTI 800 F8D
Variant - DX 5 SPEED
Part Required - Drive Shaft (Front LH)

Part Number : 44102M843A0

Maruti ASS guys are saying that this particular part is not in production nowadays, so how can I get one for my car?

My other queries are :
Is it possible to get this from old stocks via MGP stores?
If yes, how much will it cost?

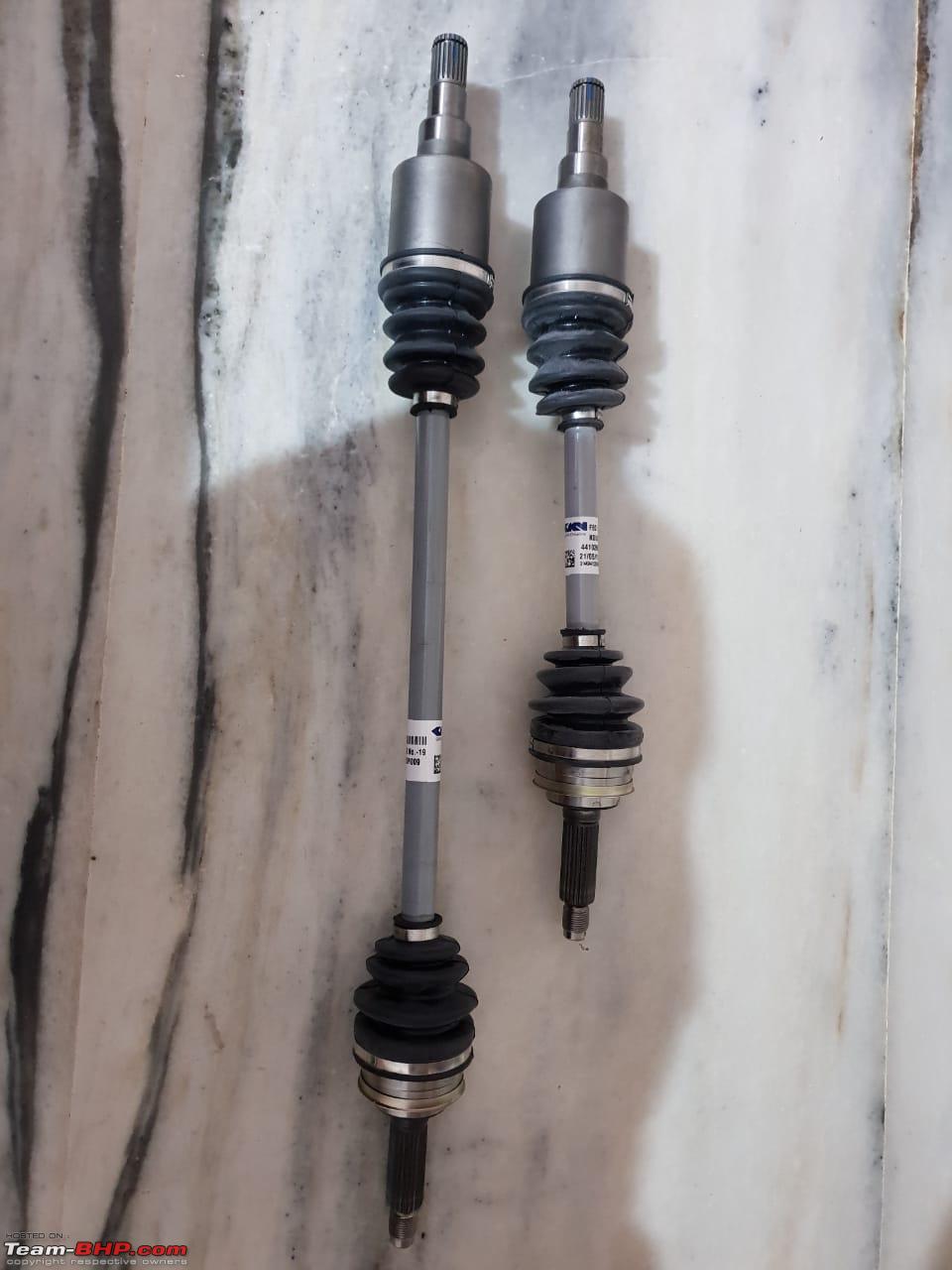

Yes driveshafts for 5 Speed 800 are long gone. When it was about to be discontinued, I stocked one set for my GG.

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-img20190622wa0045.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-img20190622wa0046.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-img20190622wa0048.jpg

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-img20190622wa0049.jpg

Ask your MGP store to check nearby for live stock, if they have anywhere then you can procure.

Another option is, these were made by GKN Drivelines, so you can procure in aftermarket too. Aftermarket part numbers were:

10001023 DRIVESHAFT F8D RH MPFI
10001025 DRIVESHAFT F8D LH MPFI

Quote:
Are the drive shafts of regular F8B and 5 Speed F8D different?
Is there any other brand which manufactures drive shafts for M800 F8D?
Yes driveshafts of F8B and F8D are very different and not interchangeable. Only GKN remained it's supplier for the entire life.

BTW What's the issue with your driveshafts?

Regards,
Shashi
Leoshashi is offline   (1) Thanks
Old 13th December 2020, 00:39   #1327
Newbie

Join Date: Oct 2020
Location: Villupuram, TN
Posts: 5
Thanked: 2 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hello Shashi,

Model: Alto Lxi
Year : 2007

Parts required:

1. Front strut set (with springs and bushes assembled)
2. Lower arms
3. Rear shock absorber
4. Rear spring bushes.
5. Heater core element inside dashboard
6. Bulb behind the AC control knobs
7. Silencer mat below the carpet ( looks like mashed old clothes). Because they soaked in water during water ingress and was thrown away.

Thank you
Ajayabd is offline
Old 14th December 2020, 11:22   #1328
BHPian

Join Date: Mar 2020
Location: Bangalore
Posts: 62
Thanked: 139 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hello Shashi,

I have a 2016 VITARA BREZZA (ZDI+ if that matters) and was trying to order a set of floor mats from boodmo. The mats both floor and boot ones are listed on the official website as compatible accessories for the F/L 2020 model and would like to know if it would still be a suitable fit for the pre-facelift model. A casual call to two different dealers yielded 2 different answers. Any insight towards this would be highly helpful.

Thanks

Parts -
  • All Weather 3D Mat - 75901M85SG0
  • Brezza 3D Boot Mat - 990J0M82PA3-020
  • 3D Dickey Mat - 990J0M82PA3-030

https://www.marutisuzuki.com/accesso...za-3d-boot-mat
https://www.marutisuzuki.com/accesso...key-mat-brezza
https://www.marutisuzuki.com/accesso...weather-3d-mat

Last edited by vb-san : 15th December 2020 at 12:19. Reason: typo
akash.1318 is offline
Old 14th December 2020, 13:31   #1329
BHPian

powertrain's Avatar

Join Date: Oct 2009
Location: Mumbai
Posts: 632
Thanked: 480 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Hello Shashi,
I have a 2011 SX4 ZDi Diesel, run 1.59L kms. Apart from AC service, all the services have been done at the A.S.S; as I plan to keep the car for long term.

The A.S.S has given me the following estimate along with the part number & labor cost. It would be really helpful if you could look at it & check if the MRP is correct.

Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-sx4-repair1.png

P.S - Your M800 thread is a Bible on car care!

Regards,
Powertrain
powertrain is offline
Old 17th December 2020, 18:52   #1330
Newbie

Join Date: May 2019
Location: Mysore
Posts: 22
Thanked: 14 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

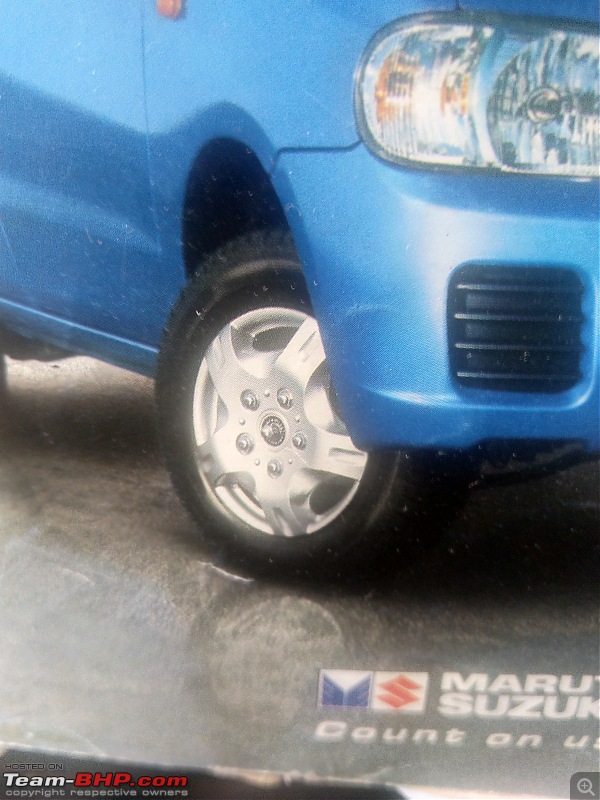

Hi! This photo is from the old Alto brochure.
I take that these are wheel covers? Or are they alloys?
Are they available or only for the brochure photos? Were there any MGA wheel covers for the Alto?
Attached Thumbnails
Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)-img_20201217_093255.jpg

surajspai is offline
Old 22nd December 2020, 12:36   #1331
BHPian

scorpian's Avatar

Join Date: Jun 2008
Location: GOA
Posts: 655
Thanked: 699 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Shashi Sir,
Can you share the part number for S-Cross Wheel covers. I am looking for the wheel covers 16inches but unable to order as i cant find the part number not even on boodmo.
Thanks in Advance.
regards
Manoj.
scorpian is offline
Old 28th December 2020, 11:45   #1332
Newbie

Join Date: Jun 2020
Location: Bhubaneswar, OD
Posts: 2
Thanked: 0 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Model Name- Swift
Variant- ZXi 2010 model
Part required- Speed sensor (I guess this is the part to be replaced for a speedometer that has stopped working but not sure about it).
sdwayam is offline
Old 28th December 2020, 11:54   #1333
Senior - BHPian

Join Date: Apr 2011
Location: Pune
Posts: 1,112
Thanked: 1,796 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by swayam
Model Name- Swift
Variant- ZXi 2010 model
Part required- Speed sensor (I guess this is the part to be replaced for a speedometer that has stopped working but not sure about it).
Part Number: 34960M79F00.

This part is common in Alto, Swift, Wagon R and Zen Estilo cars of that time.

https://boodmo.com/catalog/part-sens...050.1603469712

Note: Please confirm the diagnosis with a competent mechanic, before purchasing the part. Maybe some cable or connector could be faulty.

Last edited by Rahul Bhalgat : 28th December 2020 at 11:58.
Rahul Bhalgat is offline   (1) Thanks
Old 3rd January 2021, 10:12   #1334
NPV
Distinguished - BHPian

NPV's Avatar

Join Date: Oct 2009
Location: Namma Bengaluru
Posts: 6,684
Thanked: 8,510 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Shashi - need your help yet again!

I bought the wipers for my first gen Dzire VXI (21"/19") last week at the MGP store and fixed them yesterday. However, the sweep area seems to be wrong and it's missing the lower driver side portion of the windshield!

Is this the correct part I was given by MGP store ? - 99000M24120-852 WIPER KIT (DR+AS) OL

When I check on Oriparts, what i see there is:
38100M75J10 WIPER ASSY, WINDSHIELD

Last edited by NPV : 3rd January 2021 at 10:14.
NPV is offline
Old 3rd January 2021, 11:02   #1335
Distinguished - BHPian

paragsachania's Avatar

Join Date: Nov 2007
Location: Belur/Bangalore
Posts: 6,912
Thanked: 23,947 Times
Default Re: Maruti Genuine Parts (MGP) Catalog: Post your queries here (model list on Pg 1)

Quote:
Originally Posted by NPV View Post
Shashi - need your help yet again!

I bought the wipers for my first gen Dzire VXI (21"/19") last week at the MGP store and fixed them yesterday. However, the sweep area seems to be wrong and it's missing the lower driver side portion of the windshield!

Is this the correct part I was given by MGP store ? - 99000M24120-852 WIPER KIT (DR+AS) OL

When I check on Oriparts, what i see there is:
38100M75J10 WIPER ASSY, WINDSHIELD
What are the standard sizes for 1st Gen Dzire wipers? And what are the dimensions of the wiper pair that you bought? Are they same when you measure their length, 21/19?

If yes, then they should function as normal as your old wipers. However, when you say it's "missing" lower driver side portion while sweeping, this really won't have anything to do with the size (length) of the wipers unless you have actually removed the wiper arms, refitted them a notch above it's standard position.

A notch lower means it will leave a patch on the RHS of the driver side and a notch higher means it will rest at a higher position but also may end up brushing the windscreen beading on the RHS side.

Finally, if your wipers are shorter in length, you will notice a triangular patch in the lower center of the windscreen that is not wiped.

Last edited by paragsachania : 3rd January 2021 at 11:03.
paragsachania is offline   (2) Thanks
