Hi everyone. I've been trying to figure out the rising problems in my car day by day.
I'm posting my car's scan here and need help.
Monday,17,January,2022,21:33:02:00009

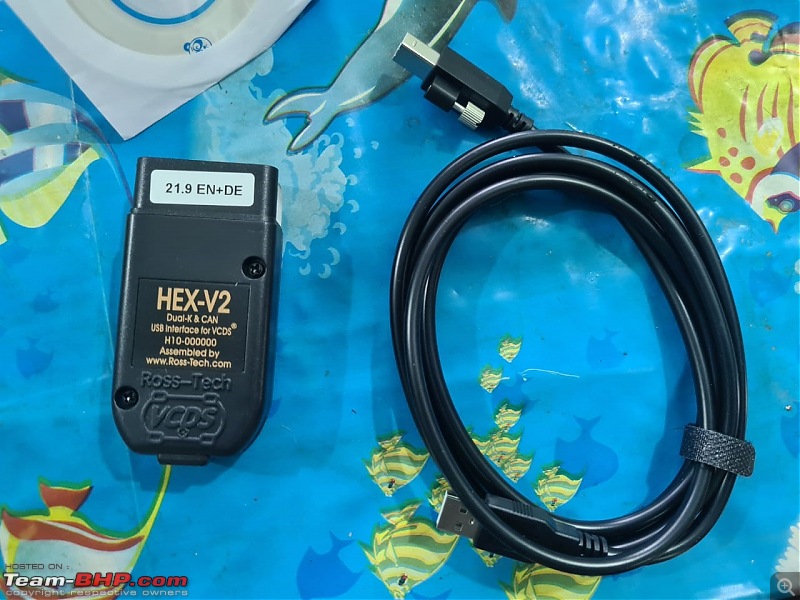

VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 20.4.2.0 (x64)
Data version: 20210903 DS317.0
www.Ross-Tech.com
VIN: xxxxxxxxxxxxxxxx License Plate:
Chassis Type: 60-VW25 (6N0)
Scan: 01 03 09 15 17 19 25 44 56
VIN: xxxxxxxxxxxxxxxxx Mileage: 130410km-81033miles
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
56-Radio -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J0000-CFWA) Labels:. 03P-906-021-CFW.clb
Part No SW: 03P 906 021 T HW: 03P 906 021 T
Component: R3 1.2l TDI H06 9979
Revision: 13003001 Serial number:
Coding: 00110012030500000000
Shop #: WSC 00793 648 00255
ASAM Dataset: EV_ECM12TDI03103P906021T 001012
ROD: EV_ECM12TDI03103P906021D.rod
VCID: 397998E3B8599B4E14-806C
No fault code found.
Readiness: 0 0 0 0 1
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 6R0-907-37x-ABS82.clb
Part No SW: 6RF 907 379 HW: 6R0 907 379 AB
Component: ABS8.2 front H03 0002
Revision: --------
Coding: 500200C1007300B20A2E00E900D900004000
Shop #: WSC 02069 000 00000
VCID: 11290043CC69730E8C-8044
1 Fault Found:
01827 - Instrument Cluster (J285); Tire Diameter Implausible
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 0
Fault Frequency: 1
Reset counter: 144
Mileage: 130417 km
Time Indication: 0
Date: 2016.06.09
Time: 21:21:27
Freeze Frame:
Hex Value: 0x0005
Hex Value: 0x0000
Hex Value: 0x3214
Hex Value: 0x16B7
Hex Value: 0x00FF
Hex Value: 0x007F
Hex Value: 0x7F00
Hex Value: 0x0000
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: None
Part No SW: 6RU 937 086 B HW: 6RU 937 086
Component: BCM25 IM M+4 H46 0230
Revision: BY046001 Serial number: 0335 132110395
Coding: 3BB82FB848F30500003006003F2F84900008410F4004200020 0000000000
Shop #: WSC 124697 483 00190
VCID: 60CF15877343AA8673-8034
5 Faults Found:
00975 - Heated Rear Window (Z1)
011 - Open Circuit
Freeze Frame:
Fault Status: 01101011
Fault Priority: 3
Fault Frequency: 1
Reset counter: 145
Mileage: 130417 km
Time Indication: 0
Date: 2016.06.09
Time: 21:31:56
01334 - Door Control Module; Rear Right (J389)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 145
Mileage: 130417 km
Time Indication: 0
Date: 2016.06.09
Time: 21:31:58
01333 - Door Control Module; Rear Left (J388)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 145
Mileage: 130417 km
Time Indication: 0
Date: 2016.06.09
Time: 21:31:58
01332 - Door Control Module; Passenger Side (J387)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 145
Mileage: 130417 km
Time Indication: 0
Date: 2016.06.09
Time: 21:31:58
01331 - Door Control Module; Driver Side (J386)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 145
Mileage: 130417 km
Time Indication: 0
Date: 2016.06.09
Time: 21:31:58
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 6R0 959 655 J HW: 6R0 959 655 J
Component: VW10AirbagU06 H09 0020
Revision: -------- Serial number: 003GW0049UDL
Coding: 003036
Shop #: WSC 01383 785 00200
ASAM Dataset: EV_AirbaVW10BPAVW250 A01001
ROD: EV_AirbaVW10BPAVW250.rod
VCID: 4999E823E8B90BCE84-801C
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 6RF 920 860 B HW: 6RF 920 860 B
Component: KOMBI H08 0008
Serial number: 00000000000000
Coding: 570A00
Shop #: WSC 12345 640 00255
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04061
ROD: EV_Kombi_UDS_VDD_RM09_004_VW25.rod
VCID: 4999E823E8B90BCE84-801C
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 6N0-909-901-6R.clb
Part No SW: 6N0 909 901 HW: 6RU 937 086
Component: GW-K-CAN TP20 0230
Coding: 002300
Shop #: WSC 124697 483 00190
VCID: 70EF65C7A3A31A06E3-8024
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:. 5K0-920-xxx-25.clb
Part No SW: 6RF 920 860 B HW: 6RF 920 860 B
Component: IMMO H08 0008
Serial number:
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03007
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 4999E823E8B90BCE84-801C
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist (J792) Labels:* 6Rx-909-144-V1.clb
Part No SW: 6RF 909 144 H HW: 6RF 909 144 G
Component: EPS_ECU H25 0321
Coding: 0000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_SteerAssisUDSNSK 004004
ROD: EV_SteerAssisUDSNSK_004.rod
VCID: 51A9C04300E9330ECC-8004
No fault code found.
-------------------------------------------------------------------------------
Address 56: Radio (J503) Labels:. 5M0-035-1xx-56.clb
Part No SW: 6RD 035 187 A HW: 6RD 035 187 A
Component: Radio 526 5314
Revision: -------- Serial number: VWZZZ4Q5122838
Coding: 0700044001000C
Shop #: WSC 00078 790 00236
VCID: 4581E413CCA1EFAE60-8010
No fault code found.
End-------------------------(Elapsed Time: 01:22)--------------------------
- There ain't any Christmas lights on the cluster but I'm still concerned about this ABS error, and the errors of the door control modules. I have not upgraded my tyres and the car was sitting idle in the parking for about 2-3 months after which this error showed up. It's a bone-stock Highline with 7 spoke VW alloy wheels and 185/60 R15 Apollo Amazer 4G Life (came to know that this error pops up due to incorrect coded diameter of the tyres).
- I left a car with a mechanic to diagnose the problem of the rear fog light not turning on. He wasn't able to mend it but messed up with the fuses which had resulted in all these errors. I've checked all the fuses and the fuse diagrams available online and I suspect a blown fuse for this error as this popped after that incident.
- The Heated Rear Window error, I checked all the wiring, checked the switch which works fine and also tested all the heating line in continuity with a multimeter.
Please Help
Vaibhav
