Old 14th January 2021, 15:16   #1516
Senior - BHPian

vsrivatsa's Avatar

Join Date: Jan 2014
Location: Bangalore
Posts: 1,454
Thanked: 2,981 Times
Default Re: Inverter Batteries

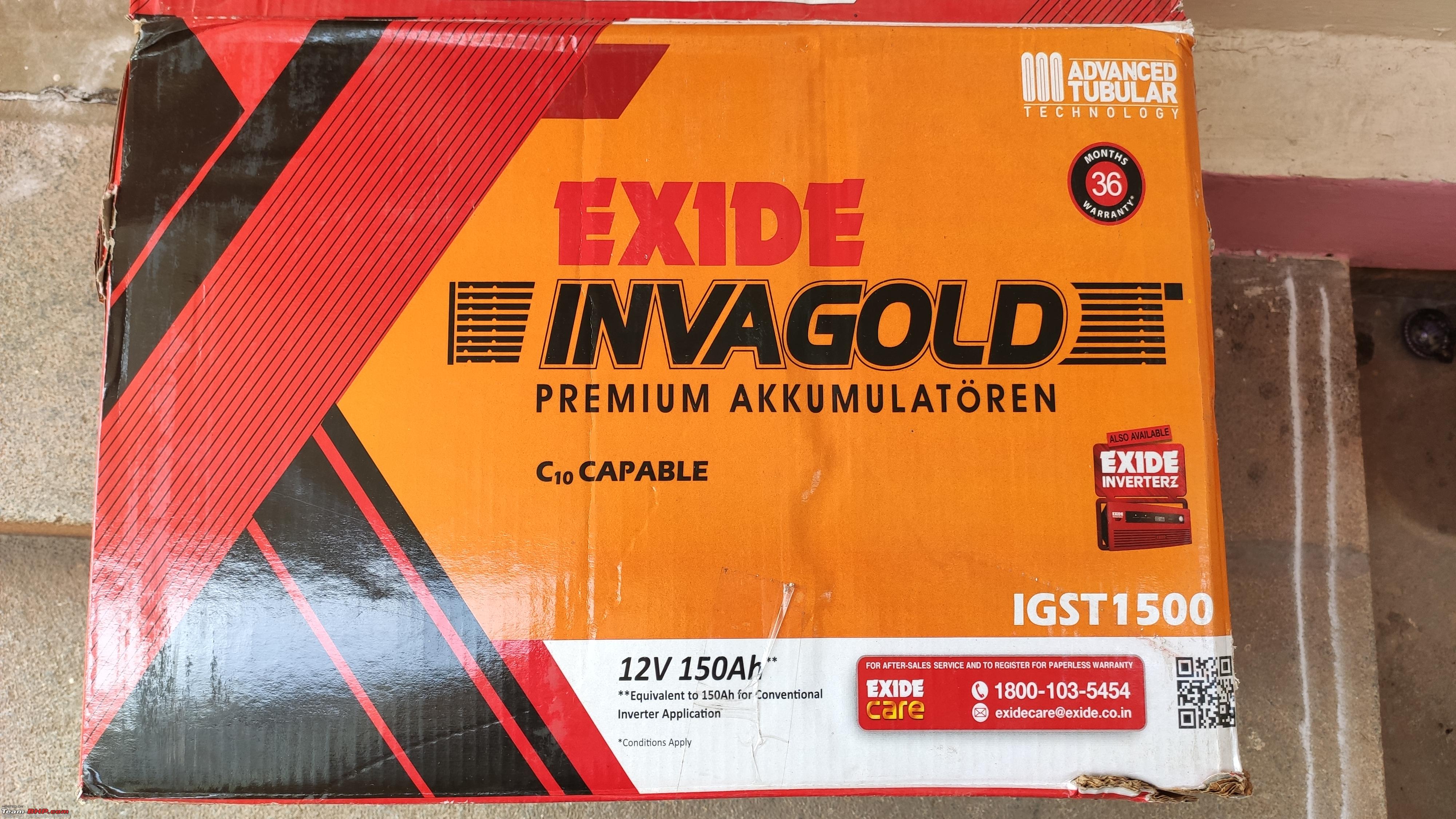

Purchased a pair of Exide InvaGold Short Tubular 150AH - IGST 1500 today. The price on BatteryBhai was ₹10,599/- per battery with exchange (Link), I sourced it at ₹8,750/- per battery post exchange for the existing 180 aH Battery from TurboTubular thru my regular contact in Bangalore.

The date on the Battery was marked Nov 2020. The Battery was home delivered within 1 hour of my phone call and they accepted payment via Google Pay. Hoping this one lasts long as well like the one it replaced (7.5 years)

Inverter Batteries-1610617607720.jpg

Inverter Batteries-1610617607733.jpg

Last edited by vsrivatsa : 14th January 2021 at 15:24.
vsrivatsa is online now   (1) Thanks
Old 15th January 2021, 14:47   #1517
BHPian

Join Date: Nov 2013
Location: Bangalore
Posts: 85
Thanked: 48 Times
Default Re: Inverter Batteries

My Lumnious Zelio+ inverter stopped working after 5+ years. Called up a local generic dealer who suggested replacement, and per his advice went ahead with Microtek Merlyn 1050.

Unfortunately, it feels like a downgrade:

1. Output power in Microtek is 725W compared to 756W for Luminous. (Both rated 900VA).
2. With Microtek, the TV restarts when power goes off, which means the inverter switch-over time is longer in Microtek compared to Luminous.
3. In case of overload cut off, Luminous used to recover automatically after 30 seconds. But for Microtek, one needs to manually restart it. A tedious job when the inverter is kept in a hard to reach spot.

The local dealer was of the opinion that Luminous quality had deteriorated of late and Microtek was the safe choice. No idea if there was any truth in that or if he was pulling a fast one on me.
motorsan is offline
Old 15th January 2021, 15:31   #1518
Distinguished - BHPian

Thad E Ginathom's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 9,645
Thanked: 15,999 Times
Default Re: Inverter Batteries

Quote:
Originally Posted by motorsan View Post
The local dealer was of the opinion that Luminous quality had deteriorated of late and Microtek was the safe choice. No idea if there was any truth in that or if he was pulling a fast one on me.
We've had our Luminous unit for just over five years too. I hope that is not going to be its life expectation!

We got off to a rough start with our Zelious. I think we had two component burnouts, and probably most of its circuitry had been replaced by the end of the engineer's second visit. The service was good --- but should not have been needed for a new unit.
Thad E Ginathom is online now   (1) Thanks
Old 16th February 2021, 10:10   #1519
BHPian

PetrolRider's Avatar

Join Date: Mar 2013
Location: BBSR/Pune
Posts: 475
Thanked: 431 Times
Default Re: Inverter Batteries

Sorry for a silly question here, I have heard, moving inverter batteries are not safe and a fire hazard.
I have to move to a different house in a month or so. What should be my option here? How can I safely move the inverter battery without involving local fire department?
PetrolRider is offline
Old 16th February 2021, 10:18   #1520
BHPian

Prowler's Avatar

Join Date: Jul 2008
Location: Madras
Posts: 652
Thanked: 680 Times
Default Re: Inverter Batteries

Quote:
Originally Posted by PetrolRider View Post
I have to move to a different house in a month or so. What should be my option here? How can I safely move the inverter battery without involving local fire department?
Your car has Lead Acid batteries too and it is going hundreds of km in a day. Moving inverter batteries is no big deal and should not involve fire department or Hazmat procedures. Just make sure that the Inverter is disconnected from the batteries after removing the mains supply. Isolate the terminals so that no metal object will short them out.
Make sure that the batteries are transported the right way up.
Prowler is offline   (3) Thanks
Old 16th February 2021, 12:42   #1521
Distinguished - BHPian

Thad E Ginathom's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 9,645
Thanked: 15,999 Times
Default Re: Inverter Batteries

Quote:
Originally Posted by Prowler View Post
Your car has Lead Acid batteries
Absolutely. How can anyone think that it is dangerous to move them? Trucks full of those batteries must be delivering to dealers!

Our car batteries are well secured in an upright position. Make sure the battery is packed so it cannot fall. Make sure the outside is clean and not acid-damp. Maybe wipe down with sodium bicarbonate solution.

I have moved house with bottles of concentrated acid. That could have done a great deal of damage if it leaked: they were well packed. Dangerous stuff: working with sulphuric acid resulted in many small holes in my workshop clothes. It "burns" stuff as in corrosion --- but I don't think it burns stuff as in flame. If so, it was a risk I was unaware of at the time
Thad E Ginathom is online now   (2) Thanks
Old 16th February 2021, 13:01   #1522
BHPian

PetrolRider's Avatar

Join Date: Mar 2013
Location: BBSR/Pune
Posts: 475
Thanked: 431 Times
Default Re: Inverter Batteries

Quote:
Originally Posted by Prowler View Post
Your car has Lead Acid batteries too and it is going hundreds of km in a day. Moving inverter batteries is no big deal and should not involve fire department or Hazmat procedures. Just make sure that the Inverter is disconnected from the batteries after removing the mains supply. Isolate the terminals so that no metal object will short them out.
Make sure that the batteries are transported the right way up.
Sorry for not being specific in my earlier post.

As far as I remember, the battery shopkeeper guy has mentioned that the acid tubes are not sealed and are not the "auto battery type" and needs to be specially packed for transportation to avoid fire and other hazard involving "spillage" of the battery acids. Mine is a regular type inverter battery from luminous which need watering (correct term?) once a year.
I am not qualified at all on this subject to validate his logic on the matter. But certainly, his words put me in paranoia and of-course inverter battery does not exactly look like a car battery though.

So, are you sure, it would not cause any issues?
PetrolRider is offline
Old 16th February 2021, 13:18   #1523
BHPian

Join Date: Dec 2005
Location: bang
Posts: 601
Thanked: 1,551 Times
Default Re: Inverter Batteries

Quote:
Originally Posted by PetrolRider View Post
Sorry for not being specific in my earlier post.

As far as I remember, the battery shopkeeper guy has mentioned that the acid tubes are not sealed and are not the "auto battery type" and needs to be specially packed for transportation to avoid fire and other hazard involving "spillage" of the battery acids. Mine is a regular type inverter battery from luminous which need watering (correct term?) once a year.
I am not qualified at all on this subject to validate his logic on the matter. But certainly, his words put me in paranoia and of-course inverter battery does not exactly look like a car battery though.

So, are you sure, it would not cause any issues?
Now you are making us paranoid too.

Is the person who sold you the battery trying to sell you a trolley or something?. To the best of my knowledge, inverter and automotive batteries are basically lead acid batteries. True, there are internal structural differences. Most inverter batteries carry the electrolyte indicator level which is a glass gauge while automotive does not. The way they discharge current is also different but i don't see why there should be any fire hazard while transport. Probably i am missing something that the shopkeeper knows or experienced. Is it some place very far that you are trying to send the battery to?.
srini1785 is offline   (1) Thanks
Old 16th February 2021, 14:10   #1524
BHPian

Prowler's Avatar

Join Date: Jul 2008
Location: Madras
Posts: 652
Thanked: 680 Times
Default Re: Inverter Batteries

Quote:
Originally Posted by PetrolRider View Post
As far as I remember, the battery shopkeeper guy has mentioned that the acid tubes are not sealed and are not the "auto battery type" and needs to be specially packed for transportation to avoid fire and other hazard ...

So, are you sure, it would not cause any issues?
Absolutely. Our offices have high power (>3-5 KVA) Online UPS which require periodic replacement of batteries. We buy them from the stores and transport them in our cars. No special drill except to have the manpower to lift the batteries. All these Lead Acid batteries need periodic addition of distilled water just like our car batteries.
Observe the precaution outlined by Thad sir and Srini Sir.
Prowler is offline   (2) Thanks
Old 16th February 2021, 15:37   #1525
Senior - BHPian

Gansan's Avatar

Join Date: May 2009
Location: Chennai
Posts: 3,787
Thanked: 1,767 Times
Infractions: 0/1 (5)
Default Re: Inverter Batteries

Quote:
Originally Posted by Thad E Ginathom View Post
We've had our Luminous unit for just over five years too. I hope that is not going to be its life expectation!

We got off to a rough start with our Zelious. I think we had two component burnouts, and probably most of its circuitry had been replaced by the end of the engineer's second visit. The service was good --- but should not have been needed for a new unit.
I am using a Luminous Zelios unit I bought during mid 2014. Still working with the same Luminous tubular battery it came with. It has been a fit and forget experience, except for topping up distilled water every four months. But I have a hunch that I may have to buy a new battery in the not too distant future.
Gansan is online now   (1) Thanks
Old 16th February 2021, 16:08   #1526
BHPian

Lone Ranger's Avatar

Join Date: Apr 2010
Location: New Delhi
Posts: 117
Thanked: 255 Times
Default Re: Inverter Batteries

Hi everyone,
For some unfathomable reason, I was under the impression that my inverter batteries were 'maintenance free'
Bottom line, the exide IT500 (tall tubular) batteries have not been topped up with distilled water since their purchase (march 2018). The system has been working fine till date. We have frequent (at least once a week, but very brief outages). I have bought a bottle of distilled water, but just wanted to check with the experts on this thread whether there are any extra precautions (apart from switching off the ups and disconnecting the terminals before filling) I should take on account of my negligence. The level indicators on the batteries are pretty much empty i.e well below the 'low' mark.
Lone Ranger is online now
Old 16th February 2021, 22:31   #1527
Distinguished - BHPian

Thad E Ginathom's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 9,645
Thanked: 15,999 Times
Default Re: Inverter Batteries

Quote:
Originally Posted by Lone Ranger View Post
I have bought a bottle of distilled water,
I suspect you'll need more than one. I "neglect" my inverter battery, but not quite so badly, filling it up at least once a year. The indicators will show "empty" before the level has dropped as far as exposing the plates to air.
Quote:
any extra precautions (apart from switching off the ups and disconnecting the terminals before filling)
I never do that! Just take the usual care that you would around anything electric.

You might have shortened your battery's life by making it so thirsty. But it is going to go on working at least as well as it does now... until it doesn't. Time will tell
Thad E Ginathom is online now   (2) Thanks
Old 17th February 2021, 19:06   #1528
BHPian

Lone Ranger's Avatar

Join Date: Apr 2010
Location: New Delhi
Posts: 117
Thanked: 255 Times
Default Re: Inverter Batteries

Quote:
Originally Posted by Thad E Ginathom View Post
You might have shortened your battery's life by making it so thirsty. But it is going to go on working at least as well as it does now... until it doesn't. Time will tell
Many thanks for your reply Thad. You were right, between the two batteries they ‘drank’ three full bottles of distilled water. And the level indicators are pretty much sitting at the minimum level. So I will need another couple of bottles probably. If there is such a. Thing as cruelty to batteries, I am going to be burning in battery purgatory forever!
Lone Ranger is online now   (2) Thanks
Old 17th February 2021, 21:03   #1529
Distinguished - BHPian

Thad E Ginathom's Avatar

Join Date: Jun 2007
Location: Chennai
Posts: 9,645
Thanked: 15,999 Times
Default Re: Inverter Batteries

Quote:
Originally Posted by Lone Ranger View Post
... I am going to be burning in battery purgatory forever!
It's ok. They stopped that a hundred years ago. Now you just have to pay the high price of a new battery.
Thad E Ginathom is online now   (2) Thanks
Old 18th February 2021, 08:12   #1530
Senior - BHPian

sagarpadaki's Avatar

Join Date: May 2010
Location: Bengaluru
Posts: 3,364
Thanked: 2,865 Times
Default Re: Inverter Batteries

Quote:
Originally Posted by motorsan View Post
My Lumnious Zelio+ inverter stopped working after 5+ years. Called up a local generic dealer who suggested replacement, and per his advice went ahead with Microtek Merlyn 1050.

Unfortunately, it feels like a downgrade:

1. Output power in Microtek is 725W compared to 756W for Luminous. (Both rated 900VA).
2. With Microtek, the TV restarts when power goes off, which means the inverter switch-over time is longer in Microtek compared to Luminous.
3. In case of overload cut off, Luminous used to recover automatically after 30 seconds. But for Microtek, one needs to manually restart it. A tedious job when the inverter is kept in a hard to reach spot.

The local dealer was of the opinion that Luminous quality had deteriorated of late and Microtek was the safe choice. No idea if there was any truth in that or if he was pulling a fast one on me.
You should have done some research on the model of Microtek before getting it. The higher end models of microtek are very well designed and reliable too. Looks may be simple but they are pretty solid!
sagarpadaki is offline   (1) Thanks
