Old 17th February 2018, 09:34   #10921
BHPian

self_driven's Avatar

Join Date: Feb 2018
Location: Delhi
Posts: 885
Thanked: 2,145 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Hello members,
I got a couple of GE 100/90W halogen bulbs and a Roots wiring kit from my friend who had ordered two sets by mistake. I tried fixing it on my Eon but found the headlight cap to be completely sealed which means that all wires and couplers were routed/fixed from inside the cap. Thinking that it would be difficult to work on such a setup, I installed it in my Swift which was an easy DIY job requiring no alterations to the stock setup.

Now the problem is that one of the bulbs turned red and eventually black within 5 minutes of usage. Even with one of the bulbs working fine, I wasn't able to see a cutoff in low beam whereas the spread was quite good on high beam. I have decided to replace the bulbs with Philips 100/90W but came across another problem. When I came back from a 10 minute night drive yesterday, the lights won't turn off. Tried fiddling with the stalk but all it would do is switch beams on the blacked-out bulb. Fearing battery drain, I quickly remove on of the fuse connecting the battery to wiring kit relay.

I need some help on this. I am sure I have made the right connnections as the installation procedure was quite simple. While installing, I noticed grease on the OE headlight connectors, probably applied by service centre folks. How can we check if the culprit behind this headlight-not-going-off issue is this grease, wiring kit or the headlight stalk? I have also read about freezed relays, so the possibility of a bad relay also can't be ruled out. But the thing is, how to confirm?
self_driven is offline
Old 17th February 2018, 11:15   #10922
Senior - BHPian

arjithin's Avatar

Join Date: Aug 2011
Location: MEL/Chalakudy
Posts: 1,093
Thanked: 1,862 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by self_driven View Post
Hello members,
I got a couple of GE 100/90W halogen bulbs and a Roots wiring kit from my friend who had ordered two sets by mistake. I tried fixing it on my Eon but found the headlight cap to be completely sealed which means that all wires and couplers were routed/fixed from inside the cap. Thinking that it would be difficult to work on such a setup, I installed it in my Swift which was an easy DIY job requiring no alterations to the stock setup.

Now the problem is that one of the bulbs turned red and eventually black within 5 minutes of usage. Even with one of the bulbs working fine, I wasn't able to see a cutoff in low beam whereas the spread was quite good on high beam. I have decided to replace the bulbs with Philips 100/90W but came across another problem. When I came back from a 10 minute night drive yesterday, the lights won't turn off. Tried fiddling with the stalk but all it would do is switch beams on the blacked-out bulb. Fearing battery drain, I quickly remove on of the fuse connecting the battery to wiring kit relay.

I need some help on this. I am sure I have made the right connnections as the installation procedure was quite simple. While installing, I noticed grease on the OE headlight connectors, probably applied by service centre folks. How can we check if the culprit behind this headlight-not-going-off issue is this grease, wiring kit or the headlight stalk? I have also read about freezed relays, so the possibility of a bad relay also can't be ruled out. But the thing is, how to confirm?
First thing I suggest is to remove the wiring harness and revert back to stock and check; that way you can be sure if stock wiring is not compromised (and head light stalk is fine)

If the stock headlight is working fine, then you can be fairly confident that the problem is with the wiring harness/relay.

Now To identify the root cause of the issue (relay or a connector or something else), it might cost you 1-3 more bulbs (while trying out different tests) and possibly a relay (if the culprit is relay); which is close to a new wiring harness' price. If I were in your situation, I will directly get a new wiring harness instead of locating what is wrong with the current wiring harness. That will give piece of mind as well.

Note: Verify that your earthing points are good and you are not using a painted surface to bolt the earth lead.
arjithin is offline   (1) Thanks
Old 17th February 2018, 20:15   #10923
BHPian

self_driven's Avatar

Join Date: Feb 2018
Location: Delhi
Posts: 885
Thanked: 2,145 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by arjithin View Post
First thing I suggest is to remove the wiring harness and revert back to stock and check; that way you can be sure if stock wiring is not compromised (and head light stalk is fine)
Hi, thanks for your advice! As you said, I changed the 100/90W GE bulbs to standard Jagan 60/55W lamps that were originally fitted on the car and plugged the OE connectors to the bulbs. Thankfully, the headlight stalk seems to work fine and I am told that a new one would have set me back by 2-3k bucks.

Got Philips Rally 100/90W bulbs to replace GE ones and the faint cutoff problem is also solved now.

In the name of desi workaround for a stuck relay, the mechanic removed it and threw it on the ground with considerable force. Plugged it back and the damn thing is working fine since then. To be on a safer side, I will be using Jagan 55/60W bulbs for the coming week or so. If the wiring kit doesn't throw any tantrum in this period, I would switch to Philips Rally else will invest in a new Philips wiring kit.

Quote:
Note: Verify that your earthing points are good and you are not using a painted surface to bolt the earth lead.

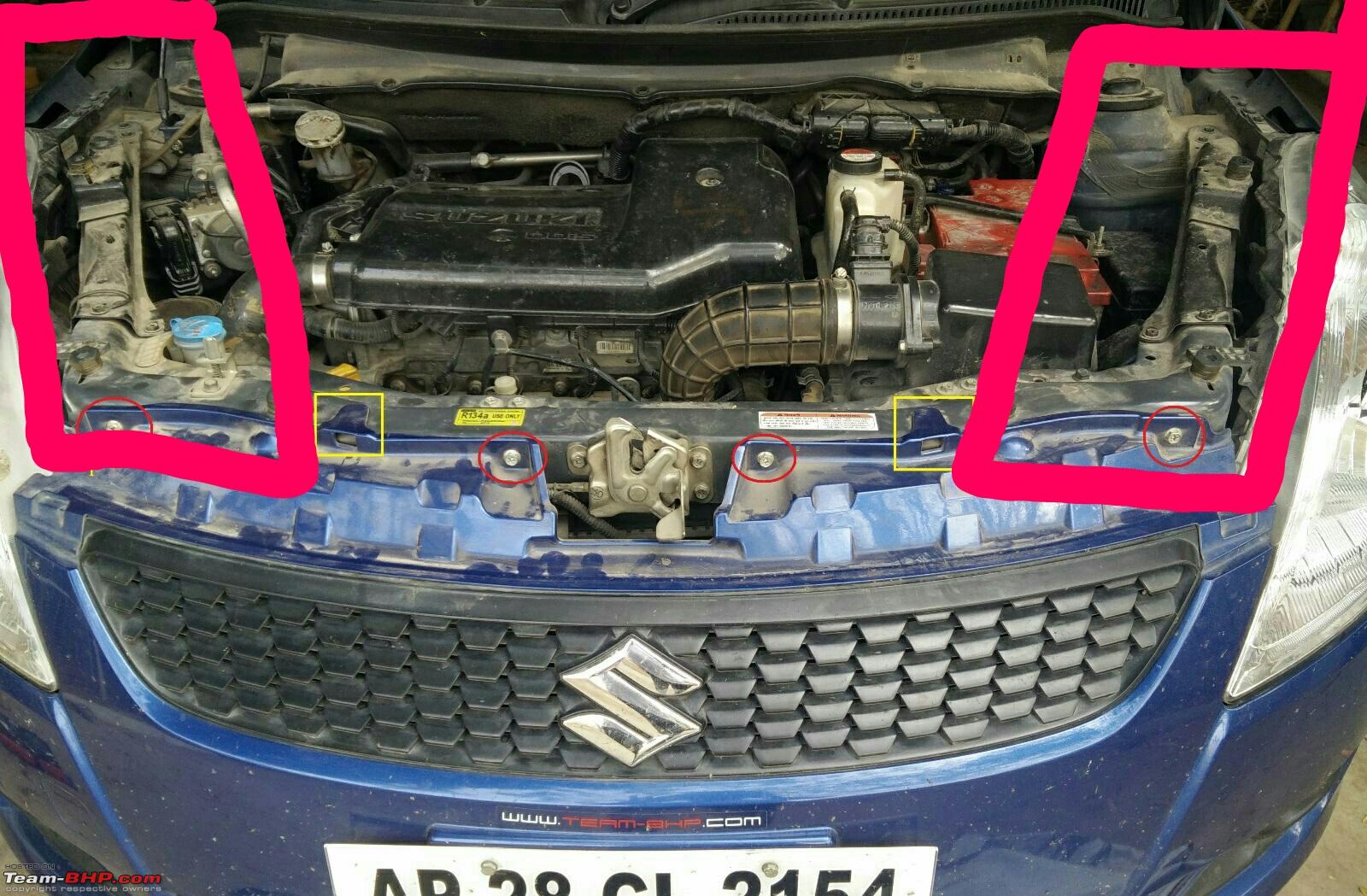

I have bolted the ground wires on this part highlighted in red below.

Auto Lighting thread : Post all queries about automobile lighting here-img_20180217_200745.jpg
Pic Source: Team-BHP

This is a metal surface but painted in black. Will sanding the contact area a bit help, or bolting to a new location is needed? Frankly, I couldn't find any unpainted metal part in the engine bay.
self_driven is offline
Old 18th February 2018, 13:16   #10924
Distinguished - BHPian

audioholic's Avatar

Join Date: Jun 2012
Location: BengaLuru
Posts: 5,199
Thanked: 16,178 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by self_driven View Post
Now the problem is that one of the bulbs turned red and eventually black within 5 minutes of usage. Even with one of the bulbs working fine, I wasn't able to see a cutoff in low beam whereas the spread was quite good on high beam.
Bulbs turning red and black would either be a problem with the bulb itself, or it could be because you touched the bulb glass with greasy hands. GE bulbs arent really of that great quality so I suspect the former reason.

The reason why you didnt see a cutoff in low beam could be due to incorrect seating of the bulb. Make sure you seat the bulb correctly and before locking it with the metal tab, make sure it isnt moving around or rotating.


Quote:
Originally Posted by self_driven View Post
When I came back from a 10 minute night drive yesterday, the lights won't turn off. Tried fiddling with the stalk but all it would do is switch beams on the blacked-out bulb. Fearing battery drain, I quickly remove on of the fuse connecting the battery to wiring kit relay.
Some wiring kits come with faulty relays which stick even after turning off. Hence it could have left the bulb switched on even after you switched it off through the stalk.

Quote:
Originally Posted by self_driven View Post
Got Philips Rally 100/90W bulbs to replace GE ones and the faint cutoff problem is also solved now.

In the name of desi workaround for a stuck relay, the mechanic removed it and threw it on the ground with considerable force. Plugged it back and the damn thing is working fine since then. To be on a safer side, I will be using Jagan 55/60W bulbs for the coming week or so.

.
Just get a new headlight relay from PMP from any auto parts store and replace the relay. That should solve the problem. A sticky relay can always stick again. This problem appeared the first day I upgraded headlights and I immediately replaced the relay. Since then, it has been many years and there hasnt been a problem till date, though I always carry a spare relay in the car.

Else just get a phillips or hella wiring kit and these will be of better quality compared to Roots, Lucas TVS etc. Never touch the bulb glass when installing the bulbs. There is no need to sand the grounding points since it will lead to rusting. The contact surface between the thread on the bolt and the body is enough to transfer the current. Just ensure you tighten the bolt well so that it will have good grip on the grounding lug as well as the thread. That is sufficient enough. Most importantly, ensure that the engine bay isnt this dirty since the dirt can come in the way of proper contact between the grounding lug and the bolt. Instead of the bumper bolt, mounting it on the bolt on the member behind the headlight will be a better idea since it is made of metal and can give additional contact area.

Last edited by audioholic : 18th February 2018 at 13:22.
audioholic is offline   (1) Thanks
Old 18th February 2018, 14:10   #10925
BHPian

self_driven's Avatar

Join Date: Feb 2018
Location: Delhi
Posts: 885
Thanked: 2,145 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by audioholic View Post
The reason why you didnt see a cutoff in low beam could be due to incorrect seating of the bulb. Make sure you seat the bulb correctly and before locking it with the metal tab, make sure it isnt moving around or rotating.
Hi, those GE bulbs were seated properly but I guess it was a problem with the specific units I got. Anyway, I've got rid of them now. Philips bulbs look better than stock and GE bulbs, even visually.

Quote:
Some wiring kits come with faulty relays which stick even after turning off. Hence it could have left the bulb switched on even after you switched it off through the stalk.
Exactly.

Quote:
Just get a new headlight relay from PMP from any auto parts store and replace the relay.
I tried scouting for a new relay but most auto shops here don't seem to stock them. Hella was readily available but I was quoted exorbitant prices for it (a couple of hundreds less than the price of a full kit). I have read good reviews of Bosch relay as well. Which brand are you using? And how much did it cost you at that time?

Quote:
Instead of the bumper bolt, mounting it on the bolt on the member behind the headlight will be a better idea since it is made of metal and can give additional contact area.
I have bolted the ground wires on metal beams highlighted in bold/wide red area. That pic is from BHPian a4anurag's thread and probably those small red squares on bumper bolts were made by him to illustrate something.
self_driven is offline
Old 20th February 2018, 00:34   #10926
BHPian

sahas83's Avatar

Join Date: Feb 2011
Location: chennai
Posts: 47
Thanked: 85 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Hi all,

I have a nexon XM model and my current set-up is :

Philips Xtreme vision x4 bulbs in H7 - Output is 3700 K.
DRL Fog lamps - OEM from Tata for nexon which is Led I believe. Output is pure white.

My issue is there is a colour mismatch between the headlamp and fog lamps. What options do I have to ensure the colour of light output matches here? I dont want to compromise on safety and brightness. Please advise. Photo attached.
Attached Thumbnails
Auto Lighting thread : Post all queries about automobile lighting here-img_4510.jpg

sahas83 is offline
Old 20th February 2018, 09:23   #10927
Senior - BHPian

arjithin's Avatar

Join Date: Aug 2011
Location: MEL/Chalakudy
Posts: 1,093
Thanked: 1,862 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by sahas83 View Post
My issue is there is a colour mismatch between the headlamp and fog lamps.
If colour mismatch is the concern, you can get a halogen fog lamp bulb to solve it.

What type is fog lamp bulb?
arjithin is offline
Old 20th February 2018, 11:22   #10928
BHPian

Join Date: Jul 2010
Location: Gurgaon
Posts: 389
Thanked: 816 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

I recently bought a wiring harness for h1/h7 bulbs. The relay has 6 wires connections. I understand 4 of these are for connection to 30(battery), 85(earth), 86(switch), 87(light). I do not understand what are the two remaining connections for. The 6 connections are named something like L1/L2 S1/S2 T1/T2. Can any learned member here help me explain.
chaudh2s is offline
Old 20th February 2018, 11:36   #10929
BHPian

archat68's Avatar

Join Date: Dec 2006
Location: Kolkata
Posts: 872
Thanked: 583 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by chaudh2s View Post
I recently bought a wiring harness for h1/h7 bulbs. The relay has 6 wires connections. I understand 4 of these are for connection to 30(battery), 85(earth), 86(switch), 87(light). I do not understand what are the two remaining connections for. The 6 connections are named something like L1/L2 S1/S2 T1/T2. Can any learned member here help me explain.
I think we can not post link to other forum. So, search google for "wiring harness for h1/h7 bulbs". Select the 4th result and read.
archat68 is offline
Old 20th February 2018, 11:54   #10930
BHPian

Join Date: Jul 2010
Location: Gurgaon
Posts: 389
Thanked: 816 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by archat68 View Post
I think we can not post link to other forum. So, search google for "wiring harness for h1/h7 bulbs". Select the 4th result and read.
That post is related to somebody wanting to sell his h1/h7 wiring harness. ONly 1 post is there, no description.
chaudh2s is offline
Old 20th February 2018, 11:59   #10931
BHPian

archat68's Avatar

Join Date: Dec 2006
Location: Kolkata
Posts: 872
Thanked: 583 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by chaudh2s View Post
That post is related to somebody wanting to sell his h1/h7 wiring harness. ONly 1 post is there, no description.
The post in the TAI forum, 4 th result in the google search.
archat68 is offline
Old 23rd February 2018, 20:29   #10932
BHPian

Join Date: Dec 2017
Location: Mumbai
Posts: 278
Thanked: 443 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Does upgrading the standard halogens to HID bulbs (in existing OEM projectors) void the warranty?

Should we just remove them before sending car over to service centre?
suku_patel_22 is offline
Old 27th February 2018, 19:00   #10933
Senior - BHPian

arjithin's Avatar

Join Date: Aug 2011
Location: MEL/Chalakudy
Posts: 1,093
Thanked: 1,862 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by suku_patel_22 View Post
Does upgrading the standard halogens to HID bulbs (in existing OEM projectors) void the warranty?

Should we just remove them before sending car over to service centre?
Theoretically yes, it can void warranty. Practically speaking it depends on many factors..like which part you are raising a claim for, your relation with dealership/SA, manufacturer etc etc.

OT: it may not be a good idea to put a HID bulb into a halogen projector; the design of projector is based on where the source of light is exactly positioned; and thats different for a halogen and HID bulb causing much more glare.

Last edited by arjithin : 27th February 2018 at 19:08.
arjithin is offline   (2) Thanks
Old 27th February 2018, 19:53   #10934
BHPian

treadmark's Avatar

Join Date: Aug 2013
Location: Bangalore
Posts: 546
Thanked: 336 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by suku_patel_22 View Post
Does upgrading the standard halogens to HID bulbs (in existing OEM projectors) void the warranty?
Quote:
Originally Posted by arjithin View Post
Theoretically yes, it can void warranty.
OT: it may not be a good idea to put a HID bulb into a halogen projector; the design of projector is based on where the source of light is exactly positioned; and thats different for a halogen and HID bulb causing much more glare.
Instead you could try LED bulbs from reputed manufacturers, LED bulbs emits light source with the same pattern as halogen bulbs and should work good inside halogen projector.

Cheers!
treadmark is offline   (1) Thanks
Old 1st March 2018, 00:18   #10935
BHPian

VinodDevil81's Avatar

Join Date: Apr 2006
Location: KL
Posts: 249
Thanked: 370 Times
Re: Auto Lighting thread : Post all queries about automobile lighting here

Quote:
Originally Posted by treadmark View Post
Instead you could try LED bulbs from reputed manufacturers, LED bulbs emits light source with the same pattern as halogen bulbs and should work good inside halogen projector.

Cheers!
Disagree.
Firstly LED bulbs don't emit light with the same pattern as halogen bulbs.
Both have different emitting characteristics.

However hard those retro-fit LED bulbs try to match the halogen's light pattern, they can't totally re-create a halogen's pattern in a halogen reflector setup.

And secondly, retro-fit LED bulbs working in reflector designed for halogens, are not always a guaranteed success, and often the results are poorer than the stock halogens.
The reflector or the projector, whatever the setup is, needs to be designed specifically for LEDs, keeping in mind the emitting characteristics of LEDs.

Then only it will be any improvement or upgrade.
Otherwise a majority of the LED's emitted light will be scattered as glare by the reflector, without any actual use.

So I would suggest not to go for those retro-fit LEDS in halogen setup, just for the sake of upgrade.
VinodDevil81 is online now   (2) Thanks
